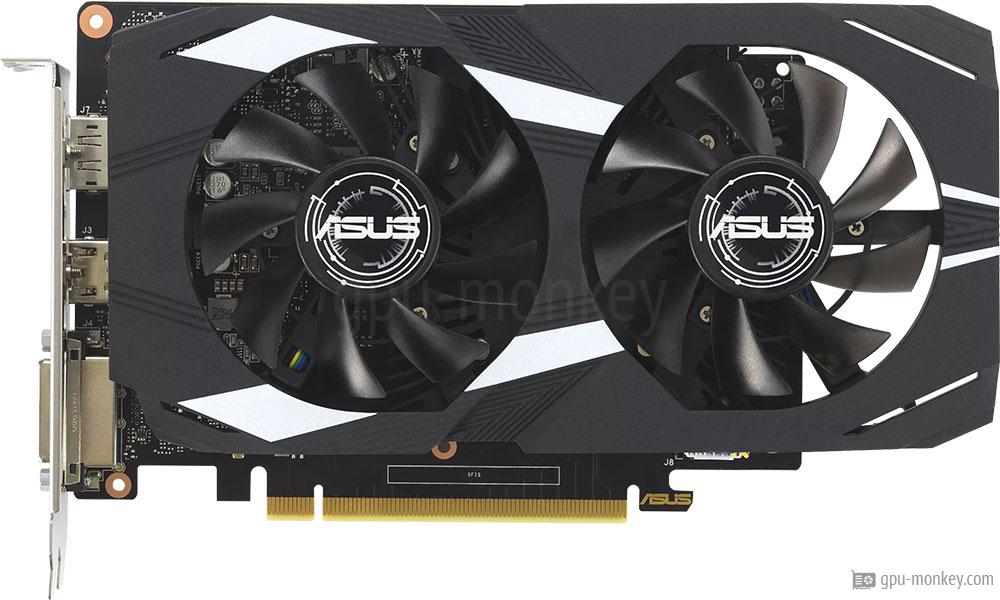

ASUS Dual GeForce GTX 1630 4GB GDDR6
vs
PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition
GPU comparison with benchmarksThe ASUS Dual GeForce GTX 1630 4GB GDDR6 has 512 shader units and these clock a maximum of 1.82 GHz which results in an FP32 computing power of 1.86 TFLOPS.
The PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition has 10240 shader units and these clock at a maximum of 1.67 GHz and achieve an FP32 computing power of 34.10 TFLOPS. |
||
GPUThe ASUS Dual GeForce GTX 1630 4GB GDDR6 is equipped with a graphics chip of the Turing architecture, which has 8 streaming multiprocessors. The graphics card PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition is based on the Ampere architecture and is equipped with 80 execution units. |
||
| ASUS Dual GeForce GTX 1630 4GB GDDR6 | GPU | PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition |
| NVIDIA GeForce GTX 1630 | Based on | NVIDIA GeForce RTX 3080 Ti |
| TU117-150 | GPU Chip | GA102-225-A1 |
| Turing | Architecture | Ampere |
| 8 | Streaming Multiprocessors | 80 |
| 512 | Shader | 10240 |
| 16 | Render Output Units | 112 |
| 32 | Texture Units | 320 |
| 0 | Raytracing Cores | 80 |
MemoryThe ASUS Dual GeForce GTX 1630 4GB GDDR6 is equipped with a 4 GB large GDDR6 graphics memory, which is equipped with 1.500 GHz clocks. The PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition has a 12 GB large GDDR6X graphics memory and the memory clock is 1.188GHz. |
||
| 4 GB | Memory Size | 12 GB |
| GDDR6 | Memory Type | GDDR6X |
| 1.500 GHz | Memory Clock | 1.188 GHz |
| 12.0 Gbps | Memory Speed | 19.0 Gbps |
| 96 GB/s | Memory bandwidth | 912 GB/s |
| 64 bit | Memory Interface | 384 bit |
Clock SpeedsThe ASUS Dual GeForce GTX 1630 4GB GDDR6 has a turbo clock of 1.815 GHz. The turbo frequency of the PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition is 1.665 GHz. |
||
| 1.740 GHz | Base Clock | 1.365 GHz |
| 1.815 GHz | Boost Clock | 1.665 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe ASUS Dual GeForce GTX 1630 4GB GDDR6 has connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 90 °C. The PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition is equipped with a 2 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 93 °C. |
||
| 75 W | TDP | 350 W |
| -- | TDP (up) | -- |
| 90 °C | Tjunction max | 93 °C |
| PCIe-Power | 2 x 8-Pin | |
Cooler & FansThe graphics processor and graphics memory of the ASUS Dual GeForce GTX 1630 4GB GDDR6 are cooled with a Air cooling. The PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition is cooled by a Air cooling. |
||
| Axial | Fan-Type | Axial |
| 2 x 80 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityThe ASUS Dual GeForce GTX 1630 4GB GDDR6 supports the downward compatible copy protection HDCP in version 2.2. The PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition supports HDCP in version 2.3 and all previous versions. |
||
| 3 | Max. Displays | 4 |
| 2.2 | HDCP-Version | 2.3 |
| 1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.1 |
| 1x DP v1.4a | DP Ports | 3x DP v1.4a |
| 1 | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe ASUS Dual GeForce GTX 1630 4GB GDDR6 supports the DirectX standard from Microsoft in version 12_1. The PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition supports Microsoft's DirectX version 12_2 (Ultimate). |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_1 | DirectX | 12_2 (Ultimate) |
| No | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | Addressable LED |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| No | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe ASUS Dual GeForce GTX 1630 4GB GDDR6 is 38 mm wide and therefore needs the space of 3 PCIe-Slots in the case. The width of the PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition is 38 mm and thus requires the space of 3 PCIe-Slots in the PC case. |
||
| 213 mm | Length | 294 mm |
| 121 mm | Height | 112 mm |
| 38 mm | Width | 56 mm |
| 2 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | -- |
| PCIe 3.0 x 8 | GPU Interface | PCIe 4.0 x 16 |
Additional dataManufactured using the 12 nanometer process, ASUS Dual GeForce GTX 1630 4GB GDDR6 was released in Q4/2022. The PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition published in Q2/2021 is manufactured with a structure width of 8 nanometers. |
||
| -- | Part-no | VCG3080T12TFXPPB |
| Q4/2022 | Release date | Q2/2021 |
| 169 $ (Reference) | Launch Price | 1,199 $ (Reference) |
| 12 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.740 GHz, 4 GB (75 W TDP)
Buy this graphic card at amazon!
1.365 GHz, 12 GB (350 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
ASUS Dual GeForce GTX 1630 4GB GDDR6
4 GB GDDR6 |
||
|
PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition
12 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition
12 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition
12 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition
12 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition
12 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
ASUS Dual GeForce GTX 1630 4GB GDDR6
4 GB GDDR6 |
||
|
|
PNY GeForce RTX 3080 Ti XLR8 Gaming Revel Edition
12 GB GDDR6X |
||
