ASUS GeForce RTX 3070 Noctua OC Edition LHR
vs

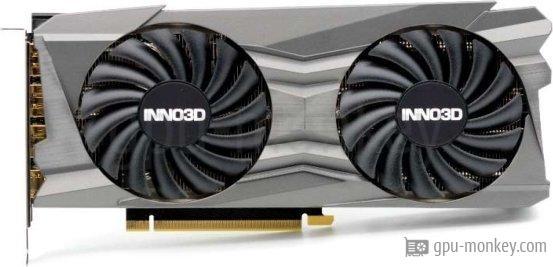

INNO3D GeForce RTX 3070 Twin X2 OC LHR
GPU comparison with benchmarksThe ASUS GeForce RTX 3070 Noctua OC Edition LHR has 5888 shader units and these clock a maximum of 1.85 GHz which results in an FP32 computing power of 21.72 TFLOPS.
The INNO3D GeForce RTX 3070 Twin X2 OC LHR has 5888 shader units and these clock at a maximum of 1.74 GHz and achieve an FP32 computing power of 20.49 TFLOPS. |
||
GPUThe ASUS GeForce RTX 3070 Noctua OC Edition LHR is equipped with a graphics chip of the Ampere architecture, which has 46 streaming multiprocessors. The graphics card INNO3D GeForce RTX 3070 Twin X2 OC LHR is based on the Ampere architecture and is equipped with 46 execution units. |
||
| ASUS GeForce RTX 3070 Noctua OC Edition LHR | GPU | INNO3D GeForce RTX 3070 Twin X2 OC LHR |
| NVIDIA GeForce RTX 3070 LHR | Based on | NVIDIA GeForce RTX 3070 LHR |
| GA104-302-A1 | GPU Chip | GA104-302-A1 |
| Ampere | Architecture | Ampere |
| 46 | Streaming Multiprocessors | 46 |
| 5888 | Shader | 5888 |
| 96 | Render Output Units | 96 |
| 184 | Texture Units | 184 |
| 46 | Raytracing Cores | 46 |
MemoryThe ASUS GeForce RTX 3070 Noctua OC Edition LHR is equipped with a 8 GB large GDDR6 graphics memory, which is equipped with 1.750 GHz clocks. The INNO3D GeForce RTX 3070 Twin X2 OC LHR has a 8 GB large GDDR6 graphics memory and the memory clock is 1.750GHz. |
||
| 8 GB | Memory Size | 8 GB |
| GDDR6 | Memory Type | GDDR6 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 14.0 Gbps | Memory Speed | 14.0 Gbps |
| 448 GB/s | Memory bandwidth | 448 GB/s |
| 256 bit | Memory Interface | 256 bit |
Clock SpeedsThe ASUS GeForce RTX 3070 Noctua OC Edition LHR has a turbo clock of 1.845 GHz  + 7 %. The turbo frequency of the INNO3D GeForce RTX 3070 Twin X2 OC LHR is 1.740 GHz+ 1 %. |
||
| 1.500 GHz | Base Clock | 1.500 GHz |
| 1.845 GHz+ 7 % |
Boost Clock | 1.740 GHz+ 1 % |
| 1.82 GHz | Avg (Game) Clock | |
| Yes | Overclocking | Yes |
Thermal DesignThe ASUS GeForce RTX 3070 Noctua OC Edition LHR has 2 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 93 °C. The INNO3D GeForce RTX 3070 Twin X2 OC LHR is equipped with a 2 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 93 °C. |
||
| 220 W | TDP | 220 W |
| -- | TDP (up) | -- |
| 93 °C | Tjunction max | 93 °C |
| 2 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe graphics processor and graphics memory of the ASUS GeForce RTX 3070 Noctua OC Edition LHR are cooled with a Air cooling. The INNO3D GeForce RTX 3070 Twin X2 OC LHR is cooled by a Air cooling. |
||
| Axial | Fan-Type | Axial |
| 2 x 120 mm | Fan 1 | 2 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | 42-43 dB |
ConnectivityThe ASUS GeForce RTX 3070 Noctua OC Edition LHR supports the downward compatible copy protection HDCP in version 2.3. The INNO3D GeForce RTX 3070 Twin X2 OC LHR supports HDCP in version 2.3 and all previous versions. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 2x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe ASUS GeForce RTX 3070 Noctua OC Edition LHR supports the DirectX standard from Microsoft in version 12_2 (Ultimate). The INNO3D GeForce RTX 3070 Twin X2 OC LHR supports Microsoft's DirectX version 12_2 (Ultimate). |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | No LED lighting |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe ASUS GeForce RTX 3070 Noctua OC Edition LHR is 88 mm wide and therefore needs the space of 2 PCIe-Slots in the case. The width of the INNO3D GeForce RTX 3070 Twin X2 OC LHR is 88 mm and thus requires the space of 2 PCIe-Slots in the PC case. |
||
| 310 mm | Length | 240 mm |
| 147 mm | Height | 120 mm |
| 88 mm | Width | -- |
| 5 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataManufactured using the 8 nanometer process, ASUS GeForce RTX 3070 Noctua OC Edition LHR was released in Q4/2021. The INNO3D GeForce RTX 3070 Twin X2 OC LHR published in Q4/2021 is manufactured with a structure width of 8 nanometers. |
||
| -- | Part-no | N30702-08D6X-171032LH |
| Q4/2021 | Release date | Q4/2021 |
| 499 $ (Reference) | Launch Price | 519 $ |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.500 GHz, 8 GB (220 W TDP)
Buy this graphic card at amazon!
1.500 GHz, 8 GB (220 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
ASUS GeForce RTX 3070 Noctua OC Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3070 Twin X2 OC LHR
8 GB GDDR6 |
||
