ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
vs

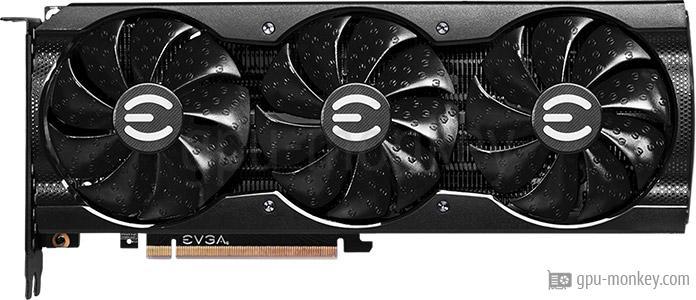

EVGA GeForce RTX 3070 Ti XC3 GAMING
GPU comparison with benchmarksThe ASUS ROG Strix GeForce RTX 3070 Ti OC Edition is based on the NVIDIA GeForce RTX 3070 Ti (Ampere) and has 8 GB GDDR6X graphics memory with a bandwidth of 608 GB/s.
The EVGA GeForce RTX 3070 Ti XC3 GAMING is based on the NVIDIA GeForce RTX 3070 Ti (Ampere) and has 8 GB GDDR6X graphics memory with a bandwidth of 608 GB/s. |
||
GPUThe ASUS ROG Strix GeForce RTX 3070 Ti OC Edition has the GA104-400-A1 graphics chip installed, which is based on the Ampere architecture. The EVGA GeForce RTX 3070 Ti XC3 GAMING is based on the graphics chip GA104-400-A1, which comes from the Ampere architecture. |
||
| ASUS ROG Strix GeForce RTX 3070 Ti OC Edition | GPU | EVGA GeForce RTX 3070 Ti XC3 GAMING |
| NVIDIA GeForce RTX 3070 Ti | Based on | NVIDIA GeForce RTX 3070 Ti |
| GA104-400-A1 | GPU Chip | GA104-400-A1 |
| Ampere | Architecture | Ampere |
| 48 | Streaming Multiprocessors | 48 |
| 6144 | Shader | 6144 |
| 96 | Render Output Units | 96 |
| 192 | Texture Units | 192 |
| 48 | Raytracing Cores | 48 |
MemoryThe graphics memory of the ASUS ROG Strix GeForce RTX 3070 Ti OC Edition clocks at 1.188 GHz, which corresponds to a speed of 19.0 Gbps. The graphics memory speed of the EVGA GeForce RTX 3070 Ti XC3 GAMING is 19.0 Gbps and the clock speed is 1.188 GHz. |
||
| 8 GB | Memory Size | 8 GB |
| GDDR6X | Memory Type | GDDR6X |
| 1.188 GHz | Memory Clock | 1.188 GHz |
| 19.0 Gbps | Memory Speed | 19.0 Gbps |
| 608 GB/s | Memory bandwidth | 608 GB/s |
| 256 bit | Memory Interface | 256 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 1.580 GHz | Base Clock | 1.580 GHz |
1.875 GHz + 6 % |
Boost Clock | 1.770 GHz |
| 1.85 GHz | Avg (Game) Clock | |
| Yes | Overclocking | Yes |
Thermal DesignThe ASUS ROG Strix GeForce RTX 3070 Ti OC Edition is powered by 3 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 290 W. The EVGA GeForce RTX 3070 Ti XC3 GAMING has 2 x 8-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 290 W. |
||
| 290 W | TDP | 290 W |
| -- | TDP (up) | -- |
| 93 °C | Tjunction max | 93 °C |
| 3 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe ASUS ROG Strix GeForce RTX 3070 Ti OC Edition is equipped with a total of 3 Axial main fans. The EVGA GeForce RTX 3070 Ti XC3 GAMING has 3 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 95 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the ASUS ROG Strix GeForce RTX 3070 Ti OC Edition. The EVGA GeForce RTX 3070 Ti XC3 GAMING supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 2x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the ASUS ROG Strix GeForce RTX 3070 Ti OC Edition it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the EVGA GeForce RTX 3070 Ti XC3 GAMING is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| ASUS Aura Sync | LED | Addressable LED |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe ASUS ROG Strix GeForce RTX 3070 Ti OC Edition is connected to the system via PCIe 4.0 x 16 lanes and requires 3 PCIe-Slots space in the housing. The EVGA GeForce RTX 3070 Ti XC3 GAMING needs the space of 3 PCIe-Slots in the case and has a PCIe 4.0 x 16 Lanes interface. |
||
| 319 mm | Length | 285 mm |
| 140 mm | Height | 111 mm |
| 58 mm | Width | -- |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
| No | SFF-Ready | No |
Additional dataThe ASUS ROG Strix GeForce RTX 3070 Ti OC Edition has been manufactured with a structure width of 8 nanometers since Q2/2021. The EVGA GeForce RTX 3070 Ti XC3 GAMING came on the market in Q2/2021 and will have a structure width of 8 nanometers manufactured. |
||
| -- | Part-no | 08G-P5-3783-KL |
| Q2/2021 | Release date | Q2/2021 |
| 599 $ (Reference) | Launch Price | 599 $ |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.580 GHz, 8 GB (290 W TDP)
Buy this graphic card at amazon!
1.580 GHz, 8 GB (290 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
Geekbench 6 - Vulkan
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ASUS ROG Strix GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
|
|
EVGA GeForce RTX 3070 Ti XC3 GAMING
8 GB GDDR6X |
||
