ASUS ROG Strix GeForce RTX 3080 OC
vs

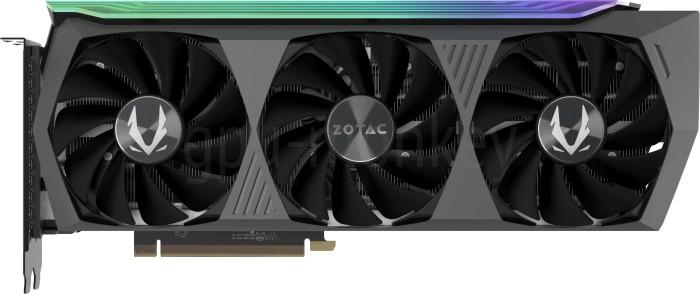

ZOTAC Gaming GeForce RTX 3080 AMP Holo
GPU comparison with benchmarksIn the gpu comparison between the ASUS ROG Strix GeForce RTX 3080 OC and the ZOTAC Gaming GeForce RTX 3080 AMP Holo, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe ASUS ROG Strix GeForce RTX 3080 OC is based on the NVIDIA GeForce RTX 3080 and has 8704 texture shaders and 68 execution units. ZOTAC Gaming GeForce RTX 3080 AMP Holo is based on NVIDIA GeForce RTX 3080, which has 8704 shaders and 68 execution units. |
||
| ASUS ROG Strix GeForce RTX 3080 OC | GPU | ZOTAC Gaming GeForce RTX 3080 AMP Holo |
| NVIDIA GeForce RTX 3080 | Based on | NVIDIA GeForce RTX 3080 |
| GA102-200-K1-A1 | GPU Chip | GA102-200-K1-A1 |
| Ampere | Architecture | Ampere |
| 68 | Streaming Multiprocessors | 68 |
| 8704 | Shader | 8704 |
| 96 | Render Output Units | 96 |
| 272 | Texture Units | 272 |
| 68 | Raytracing Cores | 68 |
MemoryThe ASUS ROG Strix GeForce RTX 3080 OC has 10 GB of graphics memory of the type GDDR6X and achieves a memory bandwidth of 760 GB/s. The ZOTAC Gaming GeForce RTX 3080 AMP Holo can access 10 GB GDDR6X graphics memory and thus achieves a memory bandwidth of 760 GB/s. |
||
| 10 GB | Memory Size | 10 GB |
| GDDR6X | Memory Type | GDDR6X |
| 1.188 GHz | Memory Clock | 1.188 GHz |
| 19.0 Gbps | Memory Speed | 19.0 Gbps |
| 760 GB/s | Memory bandwidth | 760 GB/s |
| 320 bit | Memory Interface | 320 bit |
Clock SpeedsThe ASUS ROG Strix GeForce RTX 3080 OC clocks in the base with up to 1.440 GHz. The base frequency of the ZOTAC Gaming GeForce RTX 3080 AMP Holo is 1.440 GHz. |
||
| 1.440 GHz | Base Clock | 1.440 GHz |
1.935 GHz + 13 % |
Boost Clock | 1.770 GHz+ 4 % |
| 1.91 GHz | Avg (Game) Clock | |
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the ASUS ROG Strix GeForce RTX 3080 OC is 370 W + 16 %. The graphics card is supplied with energy via the 3 x 8-Pin connector.The ZOTAC Gaming GeForce RTX 3080 AMP Holo has a TDP of 340 W + 6 % and is supplied with the required energy via 2 x 8-Pin PCIe power connectors. |
||
| 370 W+ 16 % |
TDP | 340 W+ 6 % |
| 450 W+ 22 % |
TDP (up) | 374 W+ 1 % |
| 93 °C | Tjunction max | 93 °C |
| 3 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe ASUS ROG Strix GeForce RTX 3080 OC has a total of 3 Axial fans. The ZOTAC Gaming GeForce RTX 3080 AMP Holo has 3 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 100 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 42 dB | Noise (Load) | 41-43 dB |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the ASUS ROG Strix GeForce RTX 3080 OC. The ZOTAC Gaming GeForce RTX 3080 AMP Holo supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 2x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe ASUS ROG Strix GeForce RTX 3080 OC supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the ZOTAC Gaming GeForce RTX 3080 AMP Holo is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| ASUS Aura Sync | LED | ZOTAC SPECTRA |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe ASUS ROG Strix GeForce RTX 3080 OC is 319 mm long, 140 mm high and 58 mm wide. The ZOTAC Gaming GeForce RTX 3080 AMP Holo is 318 mm long, 132 mm high and 60 mm wide. |
||
| 319 mm | Length | 318 mm |
| 140 mm | Height | 132 mm |
| 58 mm | Width | 60 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| 1900 g | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe ASUS ROG Strix GeForce RTX 3080 OC was released in Q3/2020 at a price of 799 $. The ZOTAC Gaming GeForce RTX 3080 AMP Holo was introduced in Q4/2020 at a price of 779 $. |
||
| ROG-STRIX-RTX3080-O10G-GAMING | Part-no | ZT-A30800F-10P |
| Q3/2020 | Release date | Q4/2020 |
| 799 $ | Launch Price | 779 $ |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.440 GHz, 10 GB (370 W TDP)
Buy this graphic card at amazon!
1.440 GHz, 10 GB (340 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
ASUS ROG Strix GeForce RTX 3080 OC
10 GB GDDR6X |
||
|
|
ZOTAC Gaming GeForce RTX 3080 AMP Holo
10 GB GDDR6X |
||
