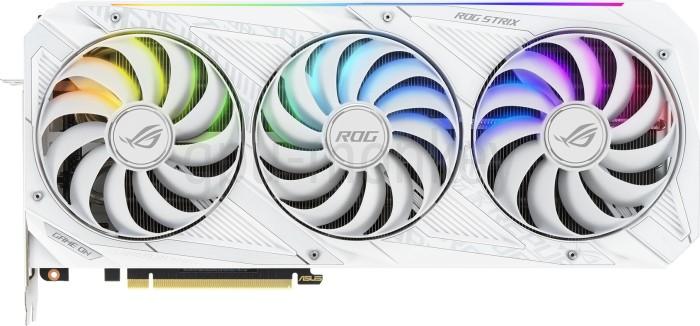

ASUS ROG Strix GeForce RTX 3080 OC White
vs
Gainward GeForce GTX 1070 Ti Phoenix GS


GPU comparison with benchmarks

The ASUS ROG Strix GeForce RTX 3080 OC White has 8704 shader units and these clock a maximum of 1.94 GHz which results in an FP32 computing power of 33.69 TFLOPS.

The Gainward GeForce GTX 1070 Ti Phoenix GS has 2432 shader units and these clock at a maximum of 1.80 GHz and achieve an FP32 computing power of 8.74 TFLOPS.

GPU

The ASUS ROG Strix GeForce RTX 3080 OC White is equipped with a graphics chip of the Ampere architecture, which has 68 streaming multiprocessors.

The graphics card Gainward GeForce GTX 1070 Ti Phoenix GS is based on the Pascal architecture and is equipped with 199 execution units.
ASUS ROG Strix GeForce RTX 3080 OC White GPU Gainward GeForce GTX 1070 Ti Phoenix GS
NVIDIA GeForce RTX 3080 Based on NVIDIA GeForce GTX 1070 Ti
GA102-200-K1-A1 GPU Chip GP104-300-A1
Ampere Architecture Pascal
68 Streaming Multiprocessors 199
8704 Shader 2432
96 Render Output Units 64
272 Texture Units 152
68 Raytracing Cores 0

Memory

The ASUS ROG Strix GeForce RTX 3080 OC White is equipped with a 10 GB large GDDR6X graphics memory, which is equipped with 1.188 GHz clocks.

The Gainward GeForce GTX 1070 Ti Phoenix GS has a 8 GB large GDDR5 graphics memory and the memory clock is 2.002GHz.

10 GB Memory Size 8 GB
GDDR6X Memory Type GDDR5
1.188 GHz Memory Clock 2.002 GHz
19.0 Gbps Memory Speed 8.0 Gbps
760 GB/s Memory bandwidth 256 GB/s
320 bit Memory Interface 256 bit

Clock Speeds

The ASUS ROG Strix GeForce RTX 3080 OC White has a turbo clock of 1.935 GHz. The turbo frequency of the Gainward GeForce GTX 1070 Ti Phoenix GS is 1.797 GHz.

1.440 GHz Base Clock 1.708 GHz
1.935 GHz Boost Clock 1.797 GHz
1.91 GHz Avg (Game) Clock
Yes Overclocking Yes

Thermal Design

The ASUS ROG Strix GeForce RTX 3080 OC White has 3 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 93 °C.

The Gainward GeForce GTX 1070 Ti Phoenix GS is equipped with a 1 x 6-Pin, 1 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 94 °C.

370 W TDP 180 W
450 W TDP (up) --
93 °C Tjunction max 94 °C
3 x 8-Pin PCIe-Power 1 x 6-Pin, 1 x 8-Pin

Cooler & Fans

The graphics processor and graphics memory of the ASUS ROG Strix GeForce RTX 3080 OC White are cooled with a Air cooling.

The Gainward GeForce GTX 1070 Ti Phoenix GS is cooled by a Air cooling.

Axial Fan-Type Axial
3 x 100 mm Fan 1 2 x 100 mm
-- Fan 2 --
Air cooling Cooler-Type Air cooling
0 dB Noise (Idle) dB
42 dB Noise (Load) --

Connectivity

The ASUS ROG Strix GeForce RTX 3080 OC White supports the downward compatible copy protection HDCP in version 2.3.

The Gainward GeForce GTX 1070 Ti Phoenix GS supports HDCP in version 2.2 and all previous versions.

4 Max. Displays 4
2.3 HDCP-Version 2.2
2x HDMI v2.1 HDMI Ports 1x HDMI v2.0b
3x DP v1.4a DP Ports 3x DP v1.4
-- DVI Ports 1
-- VGA Ports --
-- USB-C Ports --

Featureset

The ASUS ROG Strix GeForce RTX 3080 OC White supports the DirectX standard from Microsoft in version 12_2 (Ultimate).

The Gainward GeForce GTX 1070 Ti Phoenix GS supports Microsoft's DirectX version 12_1.

7680x4320 Max. resolution 7680x4320
12_2 (Ultimate) DirectX 12_1
Yes Raytracing No
Yes DLSS / FSR Yes
ASUS Aura Sync LED No LED lighting

Supported Video Codecs

This area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load.

Decode / Encode h264 Decode / Encode
Decode / Encode h265 / HEVC Decode / Encode
Decode AV1 No
Decode VP8 Decode
Decode VP9 Decode

Dimensions

The ASUS ROG Strix GeForce RTX 3080 OC White is 58 mm wide and therefore needs the space of 3 PCIe-Slots in the case.

The width of the Gainward GeForce GTX 1070 Ti Phoenix GS is 58 mm and thus requires the space of 3 PCIe-Slots in the PC case.

319 mm Length 285 mm
140 mm Height 133 mm
58 mm Width --
3 PCIe-Slots Width (Slots) 3 PCIe-Slots
1900 g Weight --
PCIe 4.0 x 16 GPU Interface PCIe 3.0 x 16
No SFF-Ready No

Additional data

Manufactured using the 8 nanometer process, ASUS ROG Strix GeForce RTX 3080 OC White was released in Q3/2020.

The Gainward GeForce GTX 1070 Ti Phoenix GS published in Q4/2017 is manufactured with a structure width of 16 nanometers.

ROG-STRIX-RTX3080-O10G-WHITE Part-no 426018336-4016
Q3/2020 Release date Q4/2017
799 $ Launch Price 449 $ (Reference)
8 nm Structure size 16 nm
data sheet Documents data sheet

Rate these graphics cards now

Here you can rate the ASUS ROG Strix GeForce RTX 3080 OC White to help other visitors make their purchasing decisions. The average rating is 0 stars (0 ratings). Rate now:
Here you can rate the Gainward GeForce GTX 1070 Ti Phoenix GS to help other visitors make their purchasing decisions. The average rating is 0 stars (0 ratings). Rate now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)
