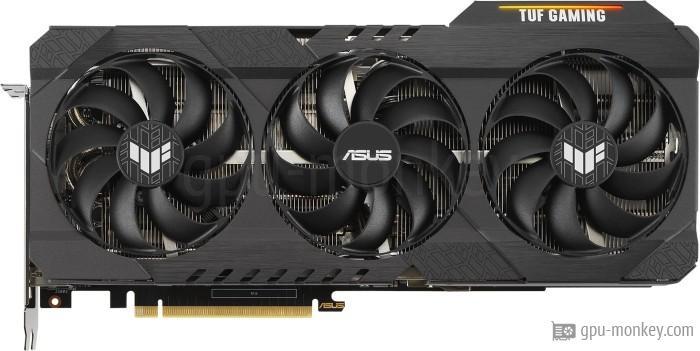

ASUS TUF Gaming GeForce RTX 3080 Ti
vs

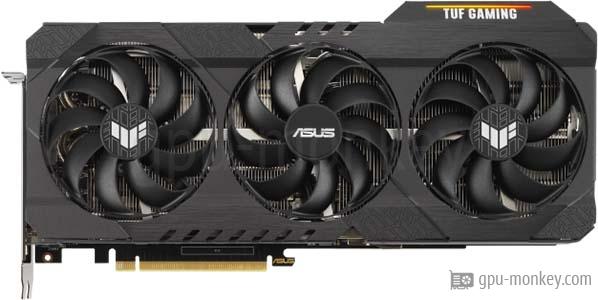

ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB
GPU comparison with benchmarksThe ASUS TUF Gaming GeForce RTX 3080 Ti has 10240 shader units and these clock a maximum of 1.70 GHz which results in an FP32 computing power of 34.71 TFLOPS.
The ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB has 8960 shader units and these clock at a maximum of 1.82 GHz and achieve an FP32 computing power of 32.52 TFLOPS. |
||
GPUThe ASUS TUF Gaming GeForce RTX 3080 Ti is equipped with a graphics chip of the Ampere architecture, which has 80 streaming multiprocessors. The graphics card ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB is based on the Ampere architecture and is equipped with 70 execution units. |
||
| ASUS TUF Gaming GeForce RTX 3080 Ti | GPU | ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB |
| NVIDIA GeForce RTX 3080 Ti | Based on | NVIDIA GeForce RTX 3080 12GB |
| GA102-225-A1 | GPU Chip | GA102 |
| Ampere | Architecture | Ampere |
| 80 | Streaming Multiprocessors | 70 |
| 10240 | Shader | 8960 |
| 112 | Render Output Units | 112 |
| 320 | Texture Units | 280 |
| 80 | Raytracing Cores | 70 |
MemoryThe ASUS TUF Gaming GeForce RTX 3080 Ti is equipped with a 12 GB large GDDR6X graphics memory, which is equipped with 1.188 GHz clocks. The ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB has a 12 GB large GDDR6X graphics memory and the memory clock is 1.188GHz. |
||
| 12 GB | Memory Size | 12 GB |
| GDDR6X | Memory Type | GDDR6X |
| 1.188 GHz | Memory Clock | 1.188 GHz |
| 19.0 Gbps | Memory Speed | 19.0 Gbps |
| 912 GB/s | Memory bandwidth | 912 GB/s |
| 384 bit | Memory Interface | 384 bit |
Clock SpeedsThe ASUS TUF Gaming GeForce RTX 3080 Ti has a turbo clock of 1.695 GHz. The turbo frequency of the ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB is 1.815 GHz. |
||
| 1.365 GHz | Base Clock | 1.260 GHz |
| 1.695 GHz | Boost Clock | 1.815 GHz |
| Avg (Game) Clock | 1.79 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe ASUS TUF Gaming GeForce RTX 3080 Ti has 2 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 93 °C. The ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB is equipped with a 2 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 93 °C. |
||
| 350 W | TDP | 350 W |
| 370 W | TDP (up) | -- |
| 93 °C | Tjunction max | 93 °C |
| 2 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe graphics processor and graphics memory of the ASUS TUF Gaming GeForce RTX 3080 Ti are cooled with a Air cooling. The ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB is cooled by a Air cooling. |
||
| Axial | Fan-Type | Axial |
| 3 x 95 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityThe ASUS TUF Gaming GeForce RTX 3080 Ti supports the downward compatible copy protection HDCP in version 2.3. The ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB supports HDCP in version 2.3 and all previous versions. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 2x HDMI v2.1 | HDMI Ports | 2x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe ASUS TUF Gaming GeForce RTX 3080 Ti supports the DirectX standard from Microsoft in version 12_2 (Ultimate). The ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB supports Microsoft's DirectX version 12_2 (Ultimate). |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| ASUS Aura Sync | LED | ASUS Aura Sync |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe ASUS TUF Gaming GeForce RTX 3080 Ti is 52 mm wide and therefore needs the space of 3 PCIe-Slots in the case. The width of the ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB is 52 mm and thus requires the space of 3 PCIe-Slots in the PC case. |
||
| 300 mm | Length | 300 mm |
| 127 mm | Height | 127 mm |
| 52 mm | Width | 52 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataManufactured using the 8 nanometer process, ASUS TUF Gaming GeForce RTX 3080 Ti was released in Q2/2021. The ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB published in Q1/2022 is manufactured with a structure width of 8 nanometers. |
||
| TUF-RTX3080TI-12G-GAMING | Part-no | TUF-RTX3080-O12G-GAMING |
| Q2/2021 | Release date | Q1/2022 |
| 1,199 $ (Reference) | Launch Price | 699 $ (Reference) |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.365 GHz, 12 GB (350 W TDP)
Buy this graphic card at amazon!
1.260 GHz, 12 GB (350 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB
12 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB
12 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB
12 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB
12 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB
12 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 OC Edition 12GB
12 GB GDDR6X |
||
