EVGA GeForce RTX 3090 FTW3 GAMING
vs

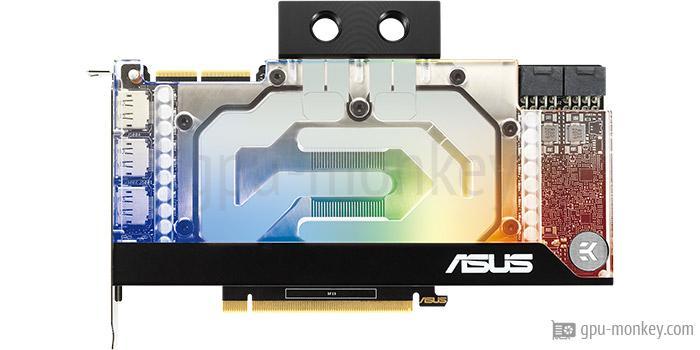

ASUS EKWB GeForce RTX 3090
GPU comparison with benchmarksIn the gpu comparison between the EVGA GeForce RTX 3090 FTW3 GAMING and the ASUS EKWB GeForce RTX 3090, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe EVGA GeForce RTX 3090 FTW3 GAMING is based on the NVIDIA GeForce RTX 3090 and has 10496 texture shaders and 82 execution units. ASUS EKWB GeForce RTX 3090 is based on NVIDIA GeForce RTX 3090, which has 10496 shaders and 82 execution units. |
||
| EVGA GeForce RTX 3090 FTW3 GAMING | GPU | ASUS EKWB GeForce RTX 3090 |
| NVIDIA GeForce RTX 3090 | Based on | NVIDIA GeForce RTX 3090 |
| GA102-300-A1 | GPU Chip | GA102-300-A1 |
| Ampere | Architecture | Ampere |
| 82 | Streaming Multiprocessors | 82 |
| 10496 | Shader | 10496 |
| 112 | Render Output Units | 112 |
| 328 | Texture Units | 328 |
| 82 | Raytracing Cores | 82 |
MemoryThe EVGA GeForce RTX 3090 FTW3 GAMING has 24 GB of graphics memory of the type GDDR6X and achieves a memory bandwidth of 936 GB/s. The ASUS EKWB GeForce RTX 3090 can access 24 GB GDDR6X graphics memory and thus achieves a memory bandwidth of 936 GB/s. |
||
| 24 GB | Memory Size | 24 GB |
| GDDR6X | Memory Type | GDDR6X |
| 1.219 GHz | Memory Clock | 1.219 GHz |
| 19.5 Gbps | Memory Speed | 19.5 Gbps |
| 936 GB/s | Memory bandwidth | 936 GB/s |
| 384 bit | Memory Interface | 384 bit |
Clock SpeedsThe EVGA GeForce RTX 3090 FTW3 GAMING clocks in the base with up to 1.395 GHz. The base frequency of the ASUS EKWB GeForce RTX 3090 is 1.395 GHz. |
||
| 1.395 GHz | Base Clock | 1.395 GHz |
1.740 GHz + 3 % |
Boost Clock | 1.725 GHz+ 2 % |
| Avg (Game) Clock | 1.70 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the EVGA GeForce RTX 3090 FTW3 GAMING is 420 W + 20 %. The graphics card is supplied with energy via the 3 x 8-Pin connector.The ASUS EKWB GeForce RTX 3090 has a TDP of 350 W and is supplied with the required energy via 2 x 8-Pin PCIe power connectors. |
||
| 420 W+ 20 % |
TDP | 350 W |
| 450 W | TDP (up) | -- |
| 93 °C | Tjunction max | 93 °C |
| 3 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe EVGA GeForce RTX 3090 FTW3 GAMING has a total of 3 Axial fans. The ASUS EKWB GeForce RTX 3090 has 0 -- fans to cool the GPU and memory. |
||
| Axial | Fan-Type | -- |
| 3 x 90 mm | Fan 1 | -- |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Water cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 38-41 dB | Noise (Load) | 0 dB |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the EVGA GeForce RTX 3090 FTW3 GAMING. The ASUS EKWB GeForce RTX 3090 supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe EVGA GeForce RTX 3090 FTW3 GAMING supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the ASUS EKWB GeForce RTX 3090 is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| Addressable LED | LED | ASUS Aura Sync |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe EVGA GeForce RTX 3090 FTW3 GAMING is 300 mm long, 137 mm high and -- wide. The ASUS EKWB GeForce RTX 3090 is 216 mm long, 136 mm high and 20 mm wide. |
||
| 300 mm | Length | 216 mm |
| 137 mm | Height | 136 mm |
| -- | Width | 20 mm |
| 3 PCIe-Slots | Width (Slots) | 1 PCIe-Slots |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe EVGA GeForce RTX 3090 FTW3 GAMING was released in Q4/2020 at a price of 1,819 $. The ASUS EKWB GeForce RTX 3090 was introduced in Q4/2020 at a price of 1,639 $. |
||
| 24G-P5-3985-KR | Part-no | RTX3090-24G-EK |
| Q4/2020 | Release date | Q4/2020 |
| 1,819 $ | Launch Price | 1,639 $ |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.395 GHz, 24 GB (420 W TDP)
Buy this graphic card at amazon!
1.395 GHz, 24 GB (350 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
EVGA GeForce RTX 3090 FTW3 GAMING
24 GB GDDR6X |
||
|
|
ASUS EKWB GeForce RTX 3090
24 GB GDDR6X |
||
