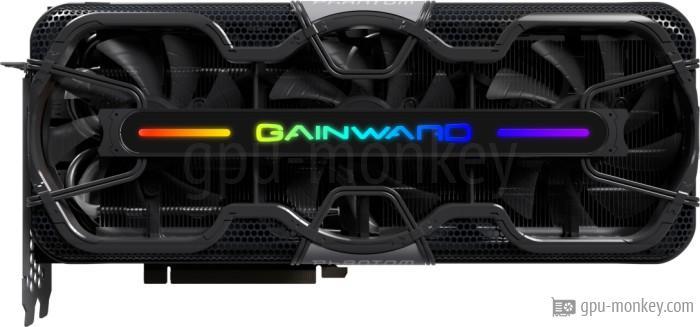

Gainward GeForce RTX 3080 Phantom GS V1 LHR
vs

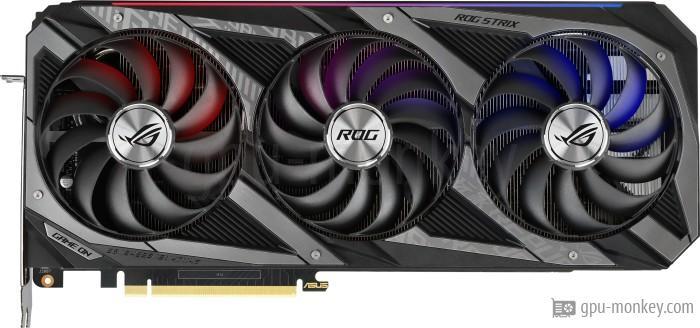

ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
GPU comparison with benchmarksThe Gainward GeForce RTX 3080 Phantom GS V1 LHR has 8704 shader units and these clock a maximum of 1.86 GHz which results in an FP32 computing power of 32.38 TFLOPS.
The ASUS ROG Strix GeForce RTX 3080 OC V2 LHR has 8704 shader units and these clock at a maximum of 1.94 GHz and achieve an FP32 computing power of 33.69 TFLOPS. |
||
GPUThe Gainward GeForce RTX 3080 Phantom GS V1 LHR is equipped with a graphics chip of the Ampere architecture, which has 68 streaming multiprocessors. The graphics card ASUS ROG Strix GeForce RTX 3080 OC V2 LHR is based on the Ampere architecture and is equipped with 68 execution units. |
||
| Gainward GeForce RTX 3080 Phantom GS V1 LHR | GPU | ASUS ROG Strix GeForce RTX 3080 OC V2 LHR |
| NVIDIA GeForce RTX 3080 LHR | Based on | NVIDIA GeForce RTX 3080 LHR |
| GA102-202-K1-A1 | GPU Chip | GA102-202-K1-A1 |
| Ampere | Architecture | Ampere |
| 68 | Streaming Multiprocessors | 68 |
| 8704 | Shader | 8704 |
| 96 | Render Output Units | 96 |
| 272 | Texture Units | 272 |
| 68 | Raytracing Cores | 68 |
MemoryThe Gainward GeForce RTX 3080 Phantom GS V1 LHR is equipped with a 10 GB large GDDR6X graphics memory, which is equipped with 1.188 GHz clocks. The ASUS ROG Strix GeForce RTX 3080 OC V2 LHR has a 10 GB large GDDR6X graphics memory and the memory clock is 1.188GHz. |
||
| 10 GB | Memory Size | 10 GB |
| GDDR6X | Memory Type | GDDR6X |
| 1.188 GHz | Memory Clock | 1.188 GHz |
| 19.0 Gbps | Memory Speed | 19.0 Gbps |
| 760 GB/s | Memory bandwidth | 760 GB/s |
| 320 bit | Memory Interface | 320 bit |
Clock SpeedsThe Gainward GeForce RTX 3080 Phantom GS V1 LHR has a turbo clock of 1.860 GHz  + 9 %. The turbo frequency of the ASUS ROG Strix GeForce RTX 3080 OC V2 LHR is 1.935 GHz+ 13 %. |
||
| 1.440 GHz | Base Clock | 1.440 GHz |
| 1.860 GHz+ 9 % |
Boost Clock | 1.935 GHz+ 13 % |
| Avg (Game) Clock | 1.91 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe Gainward GeForce RTX 3080 Phantom GS V1 LHR has 3 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 93 °C. The ASUS ROG Strix GeForce RTX 3080 OC V2 LHR is equipped with a 3 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 93 °C. |
||
| 370 W+ 16 % |
TDP | 370 W+ 16 % |
| -- | TDP (up) | 450 W+ 22 % |
| 93 °C | Tjunction max | 93 °C |
| 3 x 8-Pin | PCIe-Power | 3 x 8-Pin |
Cooler & FansThe graphics processor and graphics memory of the Gainward GeForce RTX 3080 Phantom GS V1 LHR are cooled with a Air cooling. The ASUS ROG Strix GeForce RTX 3080 OC V2 LHR is cooled by a Air cooling. |
||
| Axial | Fan-Type | Axial |
| 3 x 90 mm | Fan 1 | 3 x 100 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 42-45 dB | Noise (Load) | 42 dB |
ConnectivityThe Gainward GeForce RTX 3080 Phantom GS V1 LHR supports the downward compatible copy protection HDCP in version 2.3. The ASUS ROG Strix GeForce RTX 3080 OC V2 LHR supports HDCP in version 2.3 and all previous versions. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 2x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe Gainward GeForce RTX 3080 Phantom GS V1 LHR supports the DirectX standard from Microsoft in version 12_2 (Ultimate). The ASUS ROG Strix GeForce RTX 3080 OC V2 LHR supports Microsoft's DirectX version 12_2 (Ultimate). |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| Addressable LED | LED | ASUS Aura Sync |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe Gainward GeForce RTX 3080 Phantom GS V1 LHR is -- wide and therefore needs the space of 3 PCIe-Slots in the case. The width of the ASUS ROG Strix GeForce RTX 3080 OC V2 LHR is -- and thus requires the space of 3 PCIe-Slots in the PC case. |
||
| 304 mm | Length | 319 mm |
| 136 mm | Height | 140 mm |
| -- | Width | 58 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | 1900 g |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataManufactured using the 8 nanometer process, Gainward GeForce RTX 3080 Phantom GS V1 LHR was released in Q2/2021. The ASUS ROG Strix GeForce RTX 3080 OC V2 LHR published in Q2/2021 is manufactured with a structure width of 8 nanometers. |
||
| NED3080H19IA-1020P | Part-no | ROG-STRIX-RTX3080-O10G-GAMING-V2 |
| Q2/2021 | Release date | Q2/2021 |
| 869 $ | Launch Price | 799 $ |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.440 GHz, 10 GB (370 W TDP)
Buy this graphic card at amazon!
1.440 GHz, 10 GB (370 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
2560x1440 (1440p)
|
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
1920x1080 (1080p)
|
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
2560x1440 (1440p)
|
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
1920x1080 (1080p)
|
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
2560x1440 (1440p)
|
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
1920x1080 (1080p)
|
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
Gainward GeForce RTX 3080 Phantom GS V1 LHR
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 OC V2 LHR
10 GB GDDR6X |
||
