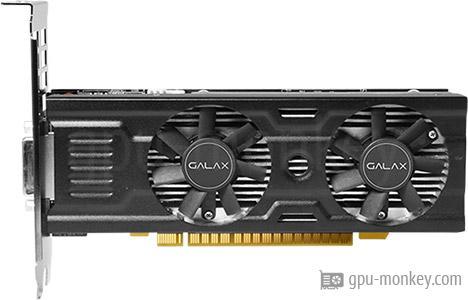

GALAX GeForce GTX 1050 Ti OC LP
vs

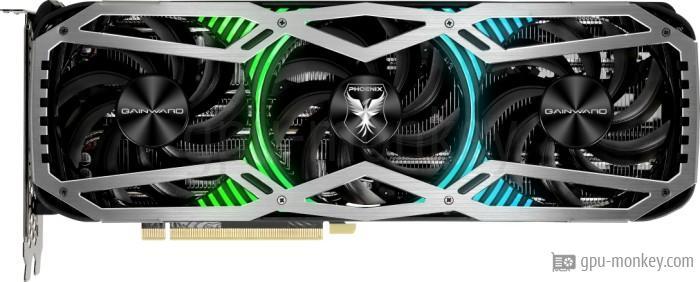

Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR
GPU comparison with benchmarksThe GALAX GeForce GTX 1050 Ti OC LP is based on the NVIDIA GeForce GTX 1050 Ti (Pascal) and has 4 GB GDDR5 graphics memory with a bandwidth of 112 GB/s.
The Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR is based on the NVIDIA GeForce RTX 3060 Ti LHR (Ampere) and has 8 GB GDDR6 graphics memory with a bandwidth of 448 GB/s. |
||
GPUThe GALAX GeForce GTX 1050 Ti OC LP has the GP107-400-A1 graphics chip installed, which is based on the Pascal architecture. The Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR is based on the graphics chip GA104-202-A1, which comes from the Ampere architecture. |
||
| GALAX GeForce GTX 1050 Ti OC LP | GPU | Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR |
| NVIDIA GeForce GTX 1050 Ti | Based on | NVIDIA GeForce RTX 3060 Ti LHR |
| GP107-400-A1 | GPU Chip | GA104-202-A1 |
| Pascal | Architecture | Ampere |
| 6 | Streaming Multiprocessors | 38 |
| 768 | Shader | 4864 |
| 32 | Render Output Units | 80 |
| 48 | Texture Units | 152 |
| 0 | Raytracing Cores | 38 |
MemoryThe graphics memory of the GALAX GeForce GTX 1050 Ti OC LP clocks at 1.752 GHz, which corresponds to a speed of 7.0 Gbps. The graphics memory speed of the Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR is 14.0 Gbps and the clock speed is 1.750 GHz. |
||
| 4 GB | Memory Size | 8 GB |
| GDDR5 | Memory Type | GDDR6 |
| 1.752 GHz | Memory Clock | 1.750 GHz |
| 7.0 Gbps | Memory Speed | 14.0 Gbps |
| 112 GB/s | Memory bandwidth | 448 GB/s |
| 128 bit | Memory Interface | 256 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 1.303 GHz | Base Clock | 1.410 GHz |
| 1.417 GHz | Boost Clock | 1.800 GHz |
| Avg (Game) Clock | 1.67 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe GALAX GeForce GTX 1050 Ti OC LP is powered by connectors. The TDP (Thermal Design Power) of the graphics card is 75 W. The Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR has 2 x 8-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 240 W. |
||
| 75 W | TDP | 240 W |
| -- | TDP (up) | -- |
| 97 °C | Tjunction max | 93 °C |
| PCIe-Power | 2 x 8-Pin | |
Cooler & FansThe GALAX GeForce GTX 1050 Ti OC LP is equipped with a total of 2 Axial main fans. The Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR has 3 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 2 x 50 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | 37 dB |
ConnectivityUp to 3 screens can be operated with the GALAX GeForce GTX 1050 Ti OC LP. The Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR supports the operation of a maximum of 4 monitors. |
||
| 3 | Max. Displays | 4 |
| 2.2 | HDCP-Version | 2.3 |
| 1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.1 |
| 1x DP v1.4 | DP Ports | 3x DP v1.4a |
| 1 | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the GALAX GeForce GTX 1050 Ti OC LP it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_1 | DirectX | 12_2 (Ultimate) |
| No | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | Addressable LED |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| No | AV1 | Decode |
| No | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe GALAX GeForce GTX 1050 Ti OC LP is connected to the system via PCIe 3.0 x 16 lanes and requires 2 PCIe-Slots space in the housing. The Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR needs the space of 3 PCIe-Slots in the case and has a PCIe 4.0 x 16 Lanes interface. |
||
| 182 mm | Length | 294 mm |
| 121 mm | Height | 112 mm |
| 39 mm | Width | -- |
| 2 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | -- |
| PCIe 3.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe GALAX GeForce GTX 1050 Ti OC LP has been manufactured with a structure width of 14 nanometers since Q4/2016. The Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR came on the market in Q2/2021 and will have a structure width of 8 nanometers manufactured. |
||
| 50IQH8DSP2MN | Part-no | NE6306TT19P2-1041X |
| Q4/2016 | Release date | Q2/2021 |
| 139 $ (Reference) | Launch Price | 459 $ |
| 14 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.303 GHz, 4 GB (75 W TDP)
Buy this graphic card at amazon!
1.410 GHz, 8 GB (240 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
GALAX GeForce GTX 1050 Ti OC LP
4 GB GDDR5 |
||
|
Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR
8 GB GDDR6 |
||
Port Royal (Raytracing)
Speed Way Graphics Score (Raytracing)
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
2560x1440 (1440p)
1920x1080 (1080p)
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.2560x1440 (1440p)
1920x1080 (1080p)
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
GALAX GeForce GTX 1050 Ti OC LP
4 GB GDDR5 |
||
|
|
Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
GALAX GeForce GTX 1050 Ti OC LP
4 GB GDDR5 |
||
|
|
Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
GALAX GeForce GTX 1050 Ti OC LP
4 GB GDDR5 |
||
|
|
Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR
8 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
GALAX GeForce GTX 1050 Ti OC LP
4 GB GDDR5 |
||
|
|
Gainward GeForce RTX 3060 Ti Phoenix GS V1 LHR
8 GB GDDR6 |
||
