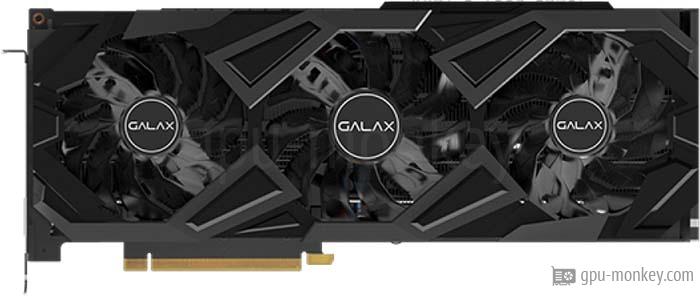

GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR
vs
GIGABYTE Radeon RX 5500 XT OC 4G
GPU comparison with benchmarksIn the gpu comparison between the GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR and the GIGABYTE Radeon RX 5500 XT OC 4G, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR is based on the NVIDIA GeForce RTX 3080 12GB and has 8960 texture shaders and 70 execution units. GIGABYTE Radeon RX 5500 XT OC 4G is based on AMD Radeon RX 5500 XT, which has 1408 shaders and 22 execution units. |
||
| GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR | GPU | GIGABYTE Radeon RX 5500 XT OC 4G |
| NVIDIA GeForce RTX 3080 12GB | Based on | AMD Radeon RX 5500 XT |
| GA102 | GPU Chip | Navi 14 XTX |
| Ampere | Architecture | RDNA 1 |
| 70 | Streaming Multiprocessors | 22 |
| 8960 | Shader | 1408 |
| 112 | Render Output Units | 32 |
| 280 | Texture Units | 88 |
| 70 | Raytracing Cores | 0 |
MemoryThe GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR has 12 GB of graphics memory of the type GDDR6X and achieves a memory bandwidth of 912 GB/s. The GIGABYTE Radeon RX 5500 XT OC 4G can access 4 GB GDDR6 graphics memory and thus achieves a memory bandwidth of 224 GB/s. |
||
| 12 GB | Memory Size | 4 GB |
| GDDR6X | Memory Type | GDDR6 |
| 1.188 GHz | Memory Clock | 1.750 GHz |
| 19.0 Gbps | Memory Speed | 14.0 Gbps |
| 912 GB/s | Memory bandwidth | 224 GB/s |
| 384 bit | Memory Interface | 128 bit |
Clock SpeedsThe GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR clocks in the base with up to 1.260 GHz. The base frequency of the GIGABYTE Radeon RX 5500 XT OC 4G is 1.607 GHz. |
||
| 1.260 GHz | Base Clock | 1.607 GHz |
| 1.770 GHz | Boost Clock | 1.845 GHz |
| Avg (Game) Clock | 1.73 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR is 350 W. The graphics card is supplied with energy via the 2 x 8-Pin connector. The GIGABYTE Radeon RX 5500 XT OC 4G has a TDP of 130 W and is supplied with the required energy via 1 x 8-Pin PCIe power connectors. |
||
| 350 W | TDP | 130 W |
| -- | TDP (up) | -- |
| 93 °C | Tjunction max | 95 °C |
| 2 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR has a total of 3 Axial fans. The GIGABYTE Radeon RX 5500 XT OC 4G has 2 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 2 x 92 mm | Fan 1 | 2 x 90 mm |
| 1 x 102 mm | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | 41 dB |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR. The GIGABYTE Radeon RX 5500 XT OC 4G supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.0b |
| 3x DP v1.4a | DP Ports | 3x DP v1.4 |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the GIGABYTE Radeon RX 5500 XT OC 4G is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_1 |
| Yes | Raytracing | No |
| Yes | DLSS / FSR | Yes |
| Addressable LED | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | No |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode / Encode |
DimensionsThe GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR is 330 mm long, 142 mm high and 58 mm wide. The GIGABYTE Radeon RX 5500 XT OC 4G is 225 mm long, 119 mm high and 40 mm wide. |
||
| 330 mm | Length | 225 mm |
| 142 mm | Height | 119 mm |
| 58 mm | Width | 40 mm |
| 3 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 8 |
| No | SFF-Ready | No |
Additional dataThe GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR was released in Q1/2022 at a price of 699 $ (Reference). The GIGABYTE Radeon RX 5500 XT OC 4G was introduced in Q3/2019 at a price of 169 $ (Reference). |
||
| 38NOM5MD1JER | Part-no | GV-R55XTOC-4GD |
| Q1/2022 | Release date | Q3/2019 |
| 699 $ (Reference) | Launch Price | 169 $ (Reference) |
| 8 nm | Structure size | 7 nm |
| data sheet | Documents | data sheet |
1.260 GHz, 12 GB (350 W TDP)
Buy this graphic card at amazon!
1.607 GHz, 4 GB (130 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR
12 GB GDDR6X |
||
|
GIGABYTE Radeon RX 5500 XT OC 4G
4 GB GDDR6 |
||
Port Royal (Raytracing)
Speed Way Graphics Score (Raytracing)
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
2560x1440 (1440p)
1920x1080 (1080p)
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
2560x1440 (1440p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
GIGABYTE Radeon RX 5500 XT OC 4G
4 GB GDDR6 |
||
1920x1080 (1080p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
GIGABYTE Radeon RX 5500 XT OC 4G
4 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
GIGABYTE Radeon RX 5500 XT OC 4G
4 GB GDDR6 |
||
2560x1440 (1440p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
GIGABYTE Radeon RX 5500 XT OC 4G
4 GB GDDR6 |
||
1920x1080 (1080p)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
GIGABYTE Radeon RX 5500 XT OC 4G
4 GB GDDR6 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
GIGABYTE Radeon RX 5500 XT OC 4G
4 GB GDDR6 |
||
Geekbench 6 - Vulkan
|
|
GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
GIGABYTE Radeon RX 5500 XT OC 4G
4 GB GDDR6 |
||
Geekbench 6 - Metal
|
|
GIGABYTE Radeon RX 5500 XT OC 4G
4 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GALAX GeForce RTX 3080 12GB EX Gamer (1-Click OC) LHR
12 GB GDDR6X |
||
|
|
GIGABYTE Radeon RX 5500 XT OC 4G
4 GB GDDR6 |
||
