GIGABYTE GeForce RTX 2060 SUPER GAMING 3X 8G
vs
Sapphire Toxic Radeon RX 6900 XT Limited Edition (rev 2.0)


8mp

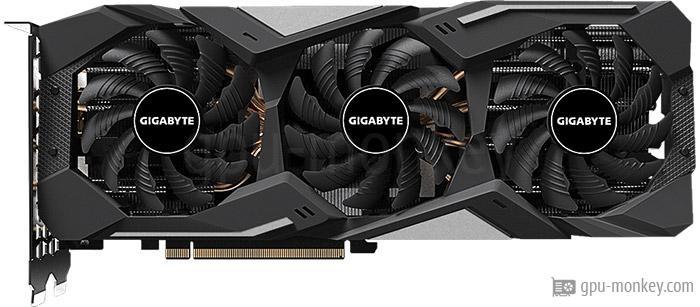

GIGABYTE GeForce RTX 2060 SUPER GAMING 3X 8G
-VS-
27mp
Sapphire Toxic Radeon RX 6900 XT Limited Edition (rev 2.0)

GPU comparison with benchmarks

The GIGABYTE GeForce RTX 2060 SUPER GAMING 3X 8G is based on the NVIDIA GeForce RTX 2060 SUPER (Turing) and has 8 GB GDDR6 graphics memory with a bandwidth of 448 GB/s.

The Sapphire Toxic Radeon RX 6900 XT Limited Edition (rev 2.0) is based on the AMD Radeon RX 6900 XT (RDNA 2) and has 16 GB GDDR6 graphics memory with a bandwidth of 512 GB/s.

GPU

The GIGABYTE GeForce RTX 2060 SUPER GAMING 3X 8G has the TU106 graphics chip installed, which is based on the Turing architecture.

The Sapphire Toxic Radeon RX 6900 XT Limited Edition (rev 2.0) is based on the graphics chip Navi 21, which comes from the RDNA 2 architecture.
GIGABYTE GeForce RTX 2060 SUPER GAMING 3X 8G GPU Sapphire Toxic Radeon RX 6900 XT Limited Edition (rev 2.0)
NVIDIA GeForce RTX 2060 SUPER Based on AMD Radeon RX 6900 XT
TU106 GPU Chip Navi 21
Turing Architecture RDNA 2
34 Streaming Multiprocessors 80
2176 Shader 5120
64 Render Output Units 128
136 Texture Units 320
34 Raytracing Cores 80

Memory

The graphics memory of the GIGABYTE GeForce RTX 2060 SUPER GAMING 3X 8G clocks at 1.750 GHz, which corresponds to a speed of 14.0 Gbps.

The graphics memory speed of the Sapphire Toxic Radeon RX 6900 XT Limited Edition (rev 2.0) is 16.0 Gbps and the clock speed is 2.000 GHz.
8 GB Memory Size 16 GB
GDDR6 Memory Type GDDR6
1.750 GHz Memory Clock 2.000 GHz
14.0 Gbps Memory Speed 16.0 Gbps
448 GB/s Memory bandwidth 512 GB/s
256 bit Memory Interface 256 bit

Clock Speeds

The clock frequency of a graphics card determines the speed in connection with the graphics architecture.
1.470 GHz Base Clock 1.825 GHz
1.650 GHz Boost Clock 2.365 GHz
Avg (Game) Clock 2.14 GHz
Yes Overclocking Yes

Thermal Design

The GIGABYTE GeForce RTX 2060 SUPER GAMING 3X 8G is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 175 W.

The Sapphire Toxic Radeon RX 6900 XT Limited Edition (rev 2.0) has 1 x 6-Pin, 2 x 8-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 400 W.
175 W TDP 400 W
-- TDP (up) --
89 °C Tjunction max 100 °C
1 x 8-Pin PCIe-Power 1 x 6-Pin, 2 x 8-Pin

Cooler & Fans

The GIGABYTE GeForce RTX 2060 SUPER GAMING 3X 8G is equipped with a total of 3 Axial main fans.

The Sapphire Toxic Radeon RX 6900 XT Limited Edition (rev 2.0) has 4 Axial main fans that cool the GPU and memory.
Axial Fan-Type Axial
3 x 80 mm Fan 1 3 x 120 mm
-- Fan 2 1 x 90 mm
Air cooling Cooler-Type AIO water cooling
0 dB Noise (Idle) 0 dB
-- Noise (Load) --

Connectivity

Up to 4 screens can be operated with the GIGABYTE GeForce RTX 2060 SUPER GAMING 3X 8G.

The Sapphire Toxic Radeon RX 6900 XT Limited Edition (rev 2.0) supports the operation of a maximum of 4 monitors.
4 Max. Displays 4
2.2 HDCP-Version 2.3
1x HDMI v2.0b HDMI Ports 1x HDMI v2.1
3x DP v1.4a DP Ports 3x DP v1.4a
-- DVI Ports --
-- VGA Ports --
-- USB-C Ports --

Featureset

With the GIGABYTE GeForce RTX 2060 SUPER GAMING 3X 8G it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels.

The maximum supported resolution of the Sapphire Toxic Radeon RX 6900 XT Limited Edition (rev 2.0) is 7680x4320 pixels.
7680x4320 Max. resolution 7680x4320
12_2 (Ultimate) DirectX 12_2 (Ultimate)
Yes Raytracing Yes
Yes DLSS / FSR Yes
No LED lighting LED Addressable LED

Supported Video Codecs

The support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card.
Decode / Encode h264 Decode / Encode
Decode / Encode h265 / HEVC Decode / Encode
No AV1 Decode
Decode VP8 Decode / Encode
Decode VP9 Decode / Encode

Dimensions

The GIGABYTE GeForce RTX 2060 SUPER GAMING 3X 8G is connected to the system via PCIe 3.0 x 16 lanes and requires 2 PCIe-Slots space in the housing.

The Sapphire Toxic Radeon RX 6900 XT Limited Edition (rev 2.0) needs the space of 3 PCIe-Slots in the case and has a PCIe 4.0 x 16 Lanes interface.
280 mm Length 270 mm
118 mm Height 130 mm
41 mm Width 45 mm
2 PCIe-Slots Width (Slots) 3 PCIe-Slots
-- Weight 1148 g
PCIe 3.0 x 16 GPU Interface PCIe 4.0 x 16

Additional data

The GIGABYTE GeForce RTX 2060 SUPER GAMING 3X 8G has been manufactured with a structure width of 12 nanometers since Q3/2019.

The Sapphire Toxic Radeon RX 6900 XT Limited Edition (rev 2.0) came on the market in Q1/2021 and will have a structure width of 7 nanometers manufactured.
GV-N206SGAMING-8GD Part-no 11308-06-20G
Q3/2019 Release date Q1/2021
399 $ (Reference) Launch Price 1,499 $
12 nm Structure size 7 nm
data sheet Documents data sheet

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

View all 3DMark Benchmark (DirectX, Raytracing) benchmark results



Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

View all Cyberpunk 2077 benchmark results



The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

View all The Last of Us Part 1 benchmark results



Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

View all Battlefield 5 benchmark results



FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

View all FP32 Performance (Single-precision TFLOPS) benchmark results
