GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR
vs

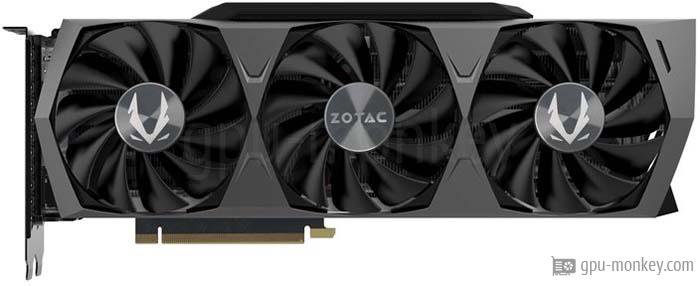

Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB


14mp
GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR
-VS-
34mp
Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB

GPU comparison with benchmarks

In the gpu comparison between the GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR and the Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB, we compare both the technical data and the benchmark results of the two graphics cards.

GPU

The GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR is based on the NVIDIA GeForce RTX 3060 LHR and has 3584 texture shaders and 28 execution units.

Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB is based on NVIDIA GeForce RTX 3080 12GB, which has 8960 shaders and 70 execution units.
GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR GPU Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB
NVIDIA GeForce RTX 3060 LHR Based on NVIDIA GeForce RTX 3080 12GB
GA106-302-A1 GPU Chip GA102
Ampere Architecture Ampere
28 Streaming Multiprocessors 70
3584 Shader 8960
48 Render Output Units 112
112 Texture Units 280
28 Raytracing Cores 70

Memory

The GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR has 12 GB of graphics memory of the type GDDR6 and achieves a memory bandwidth of 360 GB/s.

The Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB can access 12 GB GDDR6X graphics memory and thus achieves a memory bandwidth of 912 GB/s.
12 GB Memory Size 12 GB
GDDR6 Memory Type GDDR6X
1.875 GHz Memory Clock 1.188 GHz
15.0 Gbps Memory Speed 19.0 Gbps
360 GB/s Memory bandwidth 912 GB/s
192 bit Memory Interface 384 bit

Clock Speeds

The GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR clocks in the base with up to 1.320 GHz. The base frequency of the Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB is 1.260 GHz.
1.320 GHz Base Clock 1.260 GHz
1.807 GHz Boost Clock 1.725 GHz
1.78 GHz Avg (Game) Clock
Yes Overclocking Yes

Thermal Design

The TDP (Thermal Design Power) of the GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR is 170 W. The graphics card is supplied with energy via the 1 x 8-Pin connector.

The Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB has a TDP of 350 W and is supplied with the required energy via 2 x 8-Pin PCIe power connectors.
170 W TDP 350 W
180 W TDP (up) --
93 °C Tjunction max 93 °C
1 x 8-Pin PCIe-Power 2 x 8-Pin

Cooler & Fans

The GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR has a total of 2 Axial fans.

The Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB has 3 Axial fans to cool the GPU and memory.
Axial Fan-Type Axial
2 x 100 mm Fan 1 3 x 90 mm
-- Fan 2 --
Air cooling Cooler-Type Air cooling
0 dB Noise (Idle) 0 dB
35 dB Noise (Load) --

Connectivity

In the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR.

The Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB supports a maximum of 4 screens.
4 Max. Displays 4
2.3 HDCP-Version 2.3
2x HDMI v2.1 HDMI Ports 1x HDMI v2.1
2x DP v1.4a DP Ports 3x DP v1.4a
-- DVI Ports --
-- VGA Ports --
-- USB-C Ports --

Featureset

The GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR supports a maximum resolution of 7680x4320 pixels.

The maximum resolution of the Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB is 7680x4320 pixels.
7680x4320 Max. resolution 7680x4320
12_2 (Ultimate) DirectX 12_2 (Ultimate)
Yes Raytracing Yes
Yes DLSS / FSR Yes
GIGABYTE RGB Fusion LED ZOTAC SPECTRA

Supported Video Codecs

The support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos.
Decode / Encode h264 Decode / Encode
Decode / Encode h265 / HEVC Decode / Encode
Decode AV1 Decode
Decode VP8 Decode
Decode VP9 Decode

Dimensions

The GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR is 242 mm long, 124 mm high and 41 mm wide.

The Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB is 318 mm long, 121 mm high and 63 mm wide.
242 mm Length 318 mm
124 mm Height 121 mm
41 mm Width 63 mm
2 PCIe-Slots Width (Slots) 3 PCIe-Slots
-- Weight --
PCIe 4.0 x 16 GPU Interface PCIe 4.0 x 16

Additional data

The GIGABYTE GeForce RTX 3060 Eagle OC 12G (rev. 2.0) LHR was released in Q2/2021 at a price of 439 $.

The Zotac GAMING GeForce RTX 3080 Trinity OC LHR 12GB was introduced in Q1/2022 at a price of 699 $ (Reference).
GV-N3060EAGLE OC-12GD Part-no ZT-A30820J-10PLHR
Q2/2021 Release date Q1/2022
439 $ Launch Price 699 $ (Reference)
8 nm Structure size 8 nm
data sheet Documents data sheet

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

View all 3DMark Benchmark (DirectX, Raytracing) benchmark results



Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

View all Cyberpunk 2077 benchmark results



Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

View all Battlefield 5 benchmark results



FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

View all FP32 Performance (Single-precision TFLOPS) benchmark results
