GIGABYTE GeForce RTX 3070 Gaming OC 8G
vs

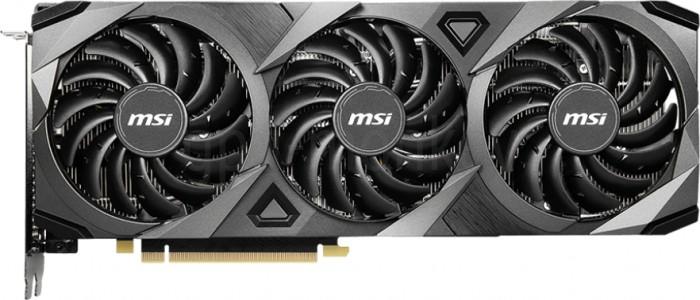

MSI GeForce RTX 3070 Ventus 3X 8G OC
GPU comparison with benchmarksIn the gpu comparison between the GIGABYTE GeForce RTX 3070 Gaming OC 8G and the MSI GeForce RTX 3070 Ventus 3X 8G OC, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe GIGABYTE GeForce RTX 3070 Gaming OC 8G is based on the NVIDIA GeForce RTX 3070 and has 5888 texture shaders and 46 execution units. MSI GeForce RTX 3070 Ventus 3X 8G OC is based on NVIDIA GeForce RTX 3070, which has 5888 shaders and 46 execution units. |
||
| GIGABYTE GeForce RTX 3070 Gaming OC 8G | GPU | MSI GeForce RTX 3070 Ventus 3X 8G OC |
| NVIDIA GeForce RTX 3070 | Based on | NVIDIA GeForce RTX 3070 |
| GA104-300-A1 | GPU Chip | GA104-300-A1 |
| Ampere | Architecture | Ampere |
| 46 | Streaming Multiprocessors | 46 |
| 5888 | Shader | 5888 |
| 96 | Render Output Units | 96 |
| 184 | Texture Units | 184 |
| 46 | Raytracing Cores | 46 |
MemoryThe GIGABYTE GeForce RTX 3070 Gaming OC 8G has 8 GB of graphics memory of the type GDDR6 and achieves a memory bandwidth of 448 GB/s. The MSI GeForce RTX 3070 Ventus 3X 8G OC can access 8 GB GDDR6 graphics memory and thus achieves a memory bandwidth of 448 GB/s. |
||
| 8 GB | Memory Size | 8 GB |
| GDDR6 | Memory Type | GDDR6 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 14.0 Gbps | Memory Speed | 14.0 Gbps |
| 448 GB/s | Memory bandwidth | 448 GB/s |
| 256 bit | Memory Interface | 256 bit |
Clock SpeedsThe GIGABYTE GeForce RTX 3070 Gaming OC 8G clocks in the base with up to 1.500 GHz. The base frequency of the MSI GeForce RTX 3070 Ventus 3X 8G OC is 1.500 GHz. |
||
| 1.500 GHz | Base Clock | 1.500 GHz |
1.815 GHz + 5 % |
Boost Clock | 1.755 GHz+ 2 % |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the GIGABYTE GeForce RTX 3070 Gaming OC 8G is 240 W + 9 %. The graphics card is supplied with energy via the 1 x 6-Pin, 1 x 8-Pin connector.The MSI GeForce RTX 3070 Ventus 3X 8G OC has a TDP of 220 W and is supplied with the required energy via 2 x 8-Pin PCIe power connectors. |
||
| 240 W+ 9 % |
TDP | 220 W |
| 250 W+ 4 % |
TDP (up) | 250 W+ 4 % |
| 93 °C | Tjunction max | 93 °C |
| 1 x 6-Pin, 1 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe GIGABYTE GeForce RTX 3070 Gaming OC 8G has a total of 3 Axial fans. The MSI GeForce RTX 3070 Ventus 3X 8G OC has 3 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 80 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 39-42 dB | Noise (Load) | 36-37 dB |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the GIGABYTE GeForce RTX 3070 Gaming OC 8G. The MSI GeForce RTX 3070 Ventus 3X 8G OC supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 2x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 2x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe GIGABYTE GeForce RTX 3070 Gaming OC 8G supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the MSI GeForce RTX 3070 Ventus 3X 8G OC is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| GIGABYTE RGB Fusion | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe GIGABYTE GeForce RTX 3070 Gaming OC 8G is 286 mm long, 115 mm high and 51 mm wide. The MSI GeForce RTX 3070 Ventus 3X 8G OC is 305 mm long, 121 mm high and 52 mm wide. |
||
| 286 mm | Length | 305 mm |
| 115 mm | Height | 121 mm |
| 51 mm | Width | 52 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | 992 g |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe GIGABYTE GeForce RTX 3070 Gaming OC 8G was released in Q4/2020 at a price of 669 $. The MSI GeForce RTX 3070 Ventus 3X 8G OC was introduced in Q4/2020 at a price of 679 $. |
||
| GV-N3070GAMING OC-8GD | Part-no | -- |
| Q4/2020 | Release date | Q4/2020 |
| 669 $ | Launch Price | 679 $ |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.500 GHz, 8 GB (240 W TDP)
Buy this graphic card at amazon!
1.500 GHz, 8 GB (220 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
GIGABYTE GeForce RTX 3070 Gaming OC 8G
8 GB GDDR6 |
||
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
