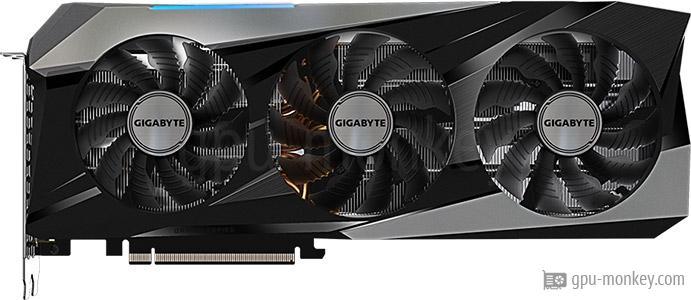

GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G
vs
ASUS Dual GeForce RTX 3070
GPU comparison with benchmarksIn the gpu comparison between the GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G and the ASUS Dual GeForce RTX 3070, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G is based on the NVIDIA GeForce RTX 3070 Ti and has 6144 texture shaders and 48 execution units. ASUS Dual GeForce RTX 3070 is based on NVIDIA GeForce RTX 3070, which has 5888 shaders and 46 execution units. |
||
| GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G | GPU | ASUS Dual GeForce RTX 3070 |
| NVIDIA GeForce RTX 3070 Ti | Based on | NVIDIA GeForce RTX 3070 |
| GA104-400-A1 | GPU Chip | GA104-300-A1 |
| Ampere | Architecture | Ampere |
| 48 | Streaming Multiprocessors | 46 |
| 6144 | Shader | 5888 |
| 96 | Render Output Units | 96 |
| 192 | Texture Units | 184 |
| 48 | Raytracing Cores | 46 |
MemoryThe GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G has 8 GB of graphics memory of the type GDDR6X and achieves a memory bandwidth of 608 GB/s. The ASUS Dual GeForce RTX 3070 can access 8 GB GDDR6 graphics memory and thus achieves a memory bandwidth of 448 GB/s. |
||
| 8 GB | Memory Size | 8 GB |
| GDDR6X | Memory Type | GDDR6 |
| 1.188 GHz | Memory Clock | 1.750 GHz |
| 19.0 Gbps | Memory Speed | 14.0 Gbps |
| 608 GB/s | Memory bandwidth | 448 GB/s |
| 256 bit | Memory Interface | 256 bit |
Clock SpeedsThe GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G clocks in the base with up to 1.580 GHz. The base frequency of the ASUS Dual GeForce RTX 3070 is 1.500 GHz. |
||
| 1.580 GHz | Base Clock | 1.500 GHz |
| 1.830 GHz | Boost Clock | 1.755 GHz |
| Avg (Game) Clock | 1.73 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G is 290 W. The graphics card is supplied with energy via the 2 x 8-Pin connector. The ASUS Dual GeForce RTX 3070 has a TDP of 220 W and is supplied with the required energy via 2 x 8-Pin PCIe power connectors. |
||
| 290 W | TDP | 220 W |
| -- | TDP (up) | 250 W |
| 93 °C | Tjunction max | 93 °C |
| 2 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G has a total of 3 Axial fans. The ASUS Dual GeForce RTX 3070 has 2 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 2 x 90 mm | Fan 1 | 2 x 100 mm |
| 1 x 80 mm | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | 43-45 dB |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G. The ASUS Dual GeForce RTX 3070 supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 2x HDMI v2.1 | HDMI Ports | 2x HDMI v2.1 |
| 2x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the ASUS Dual GeForce RTX 3070 is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| GIGABYTE RGB Fusion | LED | ASUS Aura Sync |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G is 320 mm long, 129 mm high and 55 mm wide. The ASUS Dual GeForce RTX 3070 is 267 mm long, 135 mm high and 52 mm wide. |
||
| 320 mm | Length | 267 mm |
| 129 mm | Height | 135 mm |
| 55 mm | Width | 52 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G was released in Q2/2021 at a price of 599 $ (Reference). The ASUS Dual GeForce RTX 3070 was introduced in Q4/2020 at a price of 649 $. |
||
| GV-N307TGAMING OC-8GD | Part-no | DUAL-RTX3070-8G |
| Q2/2021 | Release date | Q4/2020 |
| 599 $ (Reference) | Launch Price | 649 $ |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.580 GHz, 8 GB (290 W TDP)
Buy this graphic card at amazon!
1.500 GHz, 8 GB (220 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G
8 GB GDDR6X |
||
|
ASUS Dual GeForce RTX 3070
8 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G
8 GB GDDR6X |
||
|
|
ASUS Dual GeForce RTX 3070
8 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G
8 GB GDDR6X |
||
|
|
ASUS Dual GeForce RTX 3070
8 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G
8 GB GDDR6X |
||
|
|
ASUS Dual GeForce RTX 3070
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G
8 GB GDDR6X |
||
|
|
ASUS Dual GeForce RTX 3070
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G
8 GB GDDR6X |
||
|
|
ASUS Dual GeForce RTX 3070
8 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G
8 GB GDDR6X |
||
|
|
ASUS Dual GeForce RTX 3070
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G
8 GB GDDR6X |
||
|
|
ASUS Dual GeForce RTX 3070
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G
8 GB GDDR6X |
||
|
|
ASUS Dual GeForce RTX 3070
8 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
GIGABYTE GeForce RTX 3070 Ti GAMING OC 8G
8 GB GDDR6X |
||
|
|
ASUS Dual GeForce RTX 3070
8 GB GDDR6 |
||
