GIGABYTE GeForce RTX 3090 TURBO 24G
vs

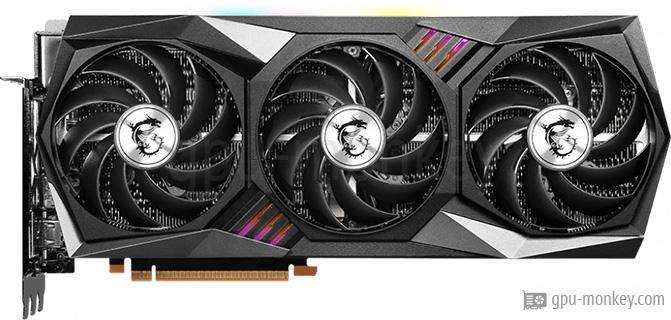

MSI GeForce RTX 3090 Ti GAMING X TRIO 24G
GPU comparison with benchmarksThe GIGABYTE GeForce RTX 3090 TURBO 24G is based on the NVIDIA GeForce RTX 3090 (Ampere) and has 24 GB GDDR6X graphics memory with a bandwidth of 936 GB/s.
The MSI GeForce RTX 3090 Ti GAMING X TRIO 24G is based on the NVIDIA GeForce RTX 3090 Ti (Ampere) and has 24 GB GDDR6X graphics memory with a bandwidth of 1008 GB/s. |
||
GPUThe GIGABYTE GeForce RTX 3090 TURBO 24G has the GA102-300-A1 graphics chip installed, which is based on the Ampere architecture. The MSI GeForce RTX 3090 Ti GAMING X TRIO 24G is based on the graphics chip GA102-350-A1, which comes from the Ampere architecture. |
||
| GIGABYTE GeForce RTX 3090 TURBO 24G | GPU | MSI GeForce RTX 3090 Ti GAMING X TRIO 24G |
| NVIDIA GeForce RTX 3090 | Based on | NVIDIA GeForce RTX 3090 Ti |
| GA102-300-A1 | GPU Chip | GA102-350-A1 |
| Ampere | Architecture | Ampere |
| 82 | Streaming Multiprocessors | 84 |
| 10496 | Shader | 10752 |
| 112 | Render Output Units | 112 |
| 328 | Texture Units | 336 |
| 82 | Raytracing Cores | 84 |
MemoryThe graphics memory of the GIGABYTE GeForce RTX 3090 TURBO 24G clocks at 1.219 GHz, which corresponds to a speed of 19.5 Gbps. The graphics memory speed of the MSI GeForce RTX 3090 Ti GAMING X TRIO 24G is 21.0 Gbps and the clock speed is 1.313 GHz. |
||
| 24 GB | Memory Size | 24 GB |
| GDDR6X | Memory Type | GDDR6X |
| 1.219 GHz | Memory Clock | 1.313 GHz |
| 19.5 Gbps | Memory Speed | 21.0 Gbps |
| 936 GB/s | Memory bandwidth | 1008 GB/s |
| 384 bit | Memory Interface | 384 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 1.395 GHz | Base Clock | 1.560 GHz |
| 1.950 GHz | Boost Clock | 1.920 GHz |
| 1.70 GHz | Avg (Game) Clock | |
| Yes | Overclocking | Yes |
Thermal DesignThe GIGABYTE GeForce RTX 3090 TURBO 24G is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 350 W. The MSI GeForce RTX 3090 Ti GAMING X TRIO 24G has 1 x 16-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 450 W. |
||
| 350 W | TDP | 450 W |
| -- | TDP (up) | -- |
| 93 °C | Tjunction max | 92 °C |
| 2 x 8-Pin | PCIe-Power | 1 x 16-Pin |
Cooler & FansThe GIGABYTE GeForce RTX 3090 TURBO 24G is equipped with a total of 1 Axial main fans. The MSI GeForce RTX 3090 Ti GAMING X TRIO 24G has 3 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 1 x 80 mm | Fan 1 | 3 x 100 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 47 dB | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the GIGABYTE GeForce RTX 3090 TURBO 24G. The MSI GeForce RTX 3090 Ti GAMING X TRIO 24G supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the GIGABYTE GeForce RTX 3090 TURBO 24G it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the MSI GeForce RTX 3090 Ti GAMING X TRIO 24G is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | MSI Mystic Light |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe GIGABYTE GeForce RTX 3090 TURBO 24G is connected to the system via PCIe 4.0 x 16 lanes and requires 2 PCIe-Slots space in the housing. The MSI GeForce RTX 3090 Ti GAMING X TRIO 24G needs the space of 3 PCIe-Slots in the case and has a PCIe 4.0 x 16 Lanes interface. |
||
| 267 mm | Length | 325 mm |
| 111 mm | Height | 140 mm |
| -- | Width | 62 mm |
| 2 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | 1683 g |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe GIGABYTE GeForce RTX 3090 TURBO 24G has been manufactured with a structure width of 8 nanometers since Q4/2020. The MSI GeForce RTX 3090 Ti GAMING X TRIO 24G came on the market in Q1/2022 and will have a structure width of 8 nanometers manufactured. |
||
| -- | Part-no | -- |
| Q4/2020 | Release date | Q1/2022 |
| 1,589 $ | Launch Price | 1,999 $ (Reference) |
| 8 nm | Structure size | 8 nm |
| -- | Documents | data sheet |
1.395 GHz, 24 GB (350 W TDP)
Buy this graphic card at amazon!
1.560 GHz, 24 GB (450 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
GIGABYTE GeForce RTX 3090 TURBO 24G
24 GB GDDR6X |
||
|
MSI GeForce RTX 3090 Ti GAMING X TRIO 24G
24 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
GIGABYTE GeForce RTX 3090 TURBO 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 3090 Ti GAMING X TRIO 24G
24 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
GIGABYTE GeForce RTX 3090 TURBO 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 3090 Ti GAMING X TRIO 24G
24 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
GIGABYTE GeForce RTX 3090 TURBO 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 3090 Ti GAMING X TRIO 24G
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce RTX 3090 TURBO 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 3090 Ti GAMING X TRIO 24G
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce RTX 3090 TURBO 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 3090 Ti GAMING X TRIO 24G
24 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
GIGABYTE GeForce RTX 3090 TURBO 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 3090 Ti GAMING X TRIO 24G
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce RTX 3090 TURBO 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 3090 Ti GAMING X TRIO 24G
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce RTX 3090 TURBO 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 3090 Ti GAMING X TRIO 24G
24 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
GIGABYTE GeForce RTX 3090 TURBO 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 3090 Ti GAMING X TRIO 24G
24 GB GDDR6X |
||
