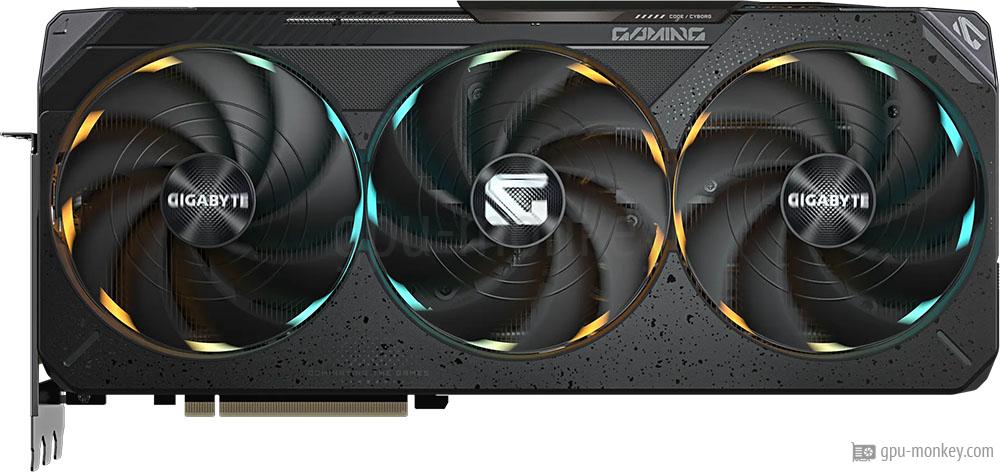

GIGABYTE GeForce RTX 5090 GAMING OC
vs
GIGABYTE AORUS GeForce RTX 5090 MASTER
GPU comparison with benchmarksThe GIGABYTE GeForce RTX 5090 GAMING OC is based on the NVIDIA GeForce RTX 5090 (Blackwell) and has 32 GB GDDR7 graphics memory with a bandwidth of 1792 GB/s.
The GIGABYTE AORUS GeForce RTX 5090 MASTER is based on the NVIDIA GeForce RTX 5090 (Blackwell) and has 32 GB GDDR7 graphics memory with a bandwidth of 1792 GB/s. |
||
GPUThe GIGABYTE GeForce RTX 5090 GAMING OC has the GB202-300-A1 graphics chip installed, which is based on the Blackwell architecture. The GIGABYTE AORUS GeForce RTX 5090 MASTER is based on the graphics chip GB202-300-A1, which comes from the Blackwell architecture. |
||
| GIGABYTE GeForce RTX 5090 GAMING OC | GPU | GIGABYTE AORUS GeForce RTX 5090 MASTER |
| NVIDIA GeForce RTX 5090 | Based on | NVIDIA GeForce RTX 5090 |
| GB202-300-A1 | GPU Chip | GB202-300-A1 |
| Blackwell | Architecture | Blackwell |
| 170 | Streaming Multiprocessors | 170 |
| 21760 | Shader | 21760 |
| 176 | Render Output Units | 176 |
| 680 | Texture Units | 680 |
| 170 | Raytracing Cores | 170 |
MemoryThe graphics memory of the GIGABYTE GeForce RTX 5090 GAMING OC clocks at 1.750 GHz, which corresponds to a speed of 28.0 Gbps. The graphics memory speed of the GIGABYTE AORUS GeForce RTX 5090 MASTER is 28.0 Gbps and the clock speed is 1.750 GHz. |
||
| 32 GB | Memory Size | 32 GB |
| GDDR7 | Memory Type | GDDR7 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 28.0 Gbps | Memory Speed | 28.0 Gbps |
| 1792 GB/s | Memory bandwidth | 1792 GB/s |
| 512 bit | Memory Interface | 512 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 2.017 GHz | Base Clock | 2.017 GHz |
2.550 GHz + 6 % |
Boost Clock | 2.655 GHz+ 10 % |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe GIGABYTE GeForce RTX 5090 GAMING OC is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 575 W (Reference). The GIGABYTE AORUS GeForce RTX 5090 MASTER has 1 x 16-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 575 W (Reference). |
||
| 575 W (Reference) | TDP | 575 W (Reference) |
| -- | TDP (up) | -- |
| 90 °C | Tjunction max | 90 °C |
| 1 x 16-Pin | PCIe-Power | 1 x 16-Pin |
Cooler & FansThe GIGABYTE GeForce RTX 5090 GAMING OC is equipped with a total of 3 Axial main fans. The GIGABYTE AORUS GeForce RTX 5090 MASTER has 3 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 110 mm | Fan 1 | 3 x 110 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the GIGABYTE GeForce RTX 5090 GAMING OC. The GIGABYTE AORUS GeForce RTX 5090 MASTER supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1b | HDMI Ports | 1x HDMI v2.1b |
| 3x DP v2.1b | DP Ports | 3x DP v2.1b |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the GIGABYTE GeForce RTX 5090 GAMING OC it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the GIGABYTE AORUS GeForce RTX 5090 MASTER is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| GIGABYTE RGB Fusion | LED | GIGABYTE RGB Fusion |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode / Encode | AV1 | Decode / Encode |
| Decode / Encode | VP8 | Decode / Encode |
| Decode / Encode | VP9 | Decode / Encode |
DimensionsThe GIGABYTE GeForce RTX 5090 GAMING OC is connected to the system via PCIe 5 x 16 lanes and requires 4 PCIe-Slots space in the housing. The GIGABYTE AORUS GeForce RTX 5090 MASTER needs the space of 4 PCIe-Slots in the case and has a PCIe 5 x 16 Lanes interface. |
||
| 342 mm | Length | 360 mm |
| 152 mm | Height | 150 mm |
| 70 mm | Width | 75 mm |
| 4 PCIe-Slots | Width (Slots) | 4 PCIe-Slots |
| -- | Weight | -- |
| PCIe 5 x 16 | GPU Interface | PCIe 5 x 16 |
| No | SFF-Ready | No |
Additional dataThe GIGABYTE GeForce RTX 5090 GAMING OC has been manufactured with a structure width of 5 nanometers since Q1/2025. The GIGABYTE AORUS GeForce RTX 5090 MASTER came on the market in Q1/2025 and will have a structure width of 5 nanometers manufactured. |
||
| GV-N5090GAMING OC-32GD | Part-no | GV-N5090AORUS M-32GD |
| Q1/2025 | Release date | Q1/2025 |
| 2,329 $ (Reference) | Launch Price | 2,329 $ (Reference) |
| 5 nm | Structure size | 5 nm |
| data sheet | Documents | data sheet |
2.017 GHz, 32 GB (-- TDP)
Buy this graphic card at amazon!
2.017 GHz, 32 GB (-- TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
GIGABYTE GeForce RTX 5090 GAMING OC
32 GB GDDR7 |
||
|
|
GIGABYTE AORUS GeForce RTX 5090 MASTER
32 GB GDDR7 |
||
