GPU comparison with benchmarksThe GIGABYTE Radeon RX 5700 Gaming OC 8G is based on the AMD Radeon RX 5700 (RDNA 1) and has 8 GB GDDR6 graphics memory with a bandwidth of 448 GB/s.

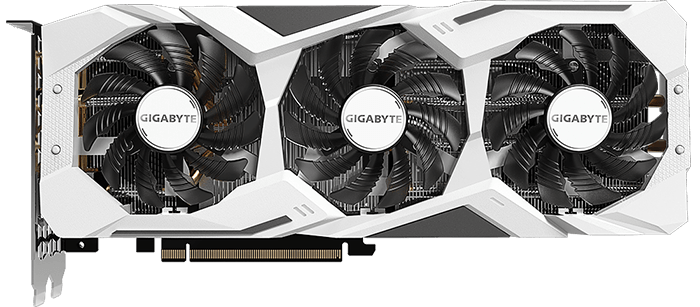

The GIGABYTE GeForce RTX 2070 GAMING OC WHITE 8G is based on the NVIDIA GeForce RTX 2070 (Turing) and has 8 GB GDDR6 graphics memory with a bandwidth of 448 GB/s. |
||
GPUThe GIGABYTE Radeon RX 5700 Gaming OC 8G has the Navi 10 graphics chip installed, which is based on the RDNA 1 architecture. The GIGABYTE GeForce RTX 2070 GAMING OC WHITE 8G is based on the graphics chip TU106, which comes from the Turing architecture. |
||
GIGABYTE Radeon RX 5700 Gaming OC 8G | GPU | GIGABYTE GeForce RTX 2070 GAMING OC WHITE 8G |
AMD Radeon RX 5700 | Based on | NVIDIA GeForce RTX 2070 |
Navi 10 | GPU Chip | TU106 |
RDNA 1 | Architecture | Turing |
36 | Streaming Multiprocessors | 36 |
2304 | Shader | 2304 |
64 | Render Output Units | 64 |
144 | Texture Units | 144 |
0 | Raytracing Cores | 36 |
MemoryThe graphics memory of the GIGABYTE Radeon RX 5700 Gaming OC 8G clocks at 1.750 GHz, which corresponds to a speed of 14.0 Gbps. The graphics memory speed of the GIGABYTE GeForce RTX 2070 GAMING OC WHITE 8G is 14.0 Gbps and the clock speed is 1.750 GHz. |
||
8 GB | Memory Size | 8 GB |
GDDR6 | Memory Type | GDDR6 |
1.750 GHz | Memory Clock | 1.750 GHz |
14.0 Gbps | Memory Speed | 14.0 Gbps |
448 GB/s | Memory bandwidth | 448 GB/s |
256 bit | Memory Interface | 256 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
1.565 GHz | Base Clock | 1.410 GHz |
1.750 GHz | Boost Clock | 1.740 GHz |
1.72 GHz | Avg (Game) Clock | 1.73 GHz |
Yes | Overclocking | Yes |
Thermal DesignThe GIGABYTE Radeon RX 5700 Gaming OC 8G is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 180 W. The GIGABYTE GeForce RTX 2070 GAMING OC WHITE 8G has 1 x 6-Pin, 1 x 8-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 175 W. |
||
180 W | TDP | 175 W |
220 W | TDP (up) | -- |
98 °C | Tjunction max | 89 °C |
1 x 8-Pin | PCIe-Power | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe GIGABYTE Radeon RX 5700 Gaming OC 8G is equipped with a total of 3 Axial main fans. The GIGABYTE GeForce RTX 2070 GAMING OC WHITE 8G has 3 Axial main fans that cool the GPU and memory. |
||
Axial | Fan-Type | Axial |
3 x 80 mm | Fan 1 | 3 x 80 mm |
-- | Fan 2 | -- |
Air cooling | Cooler-Type | Air cooling |
0 dB | Noise (Idle) | 0 dB |
42 dB | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the GIGABYTE Radeon RX 5700 Gaming OC 8G. The GIGABYTE GeForce RTX 2070 GAMING OC WHITE 8G supports the operation of a maximum of 4 monitors. |
||
4 | Max. Displays | 4 |
2.3 | HDCP-Version | 2.2 |
1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.0b |
3x DP v1.4 | DP Ports | 3x DP v1.4a |
-- | DVI Ports | -- |
-- | VGA Ports | -- |
-- | USB-C Ports | 1 |
FeaturesetWith the GIGABYTE Radeon RX 5700 Gaming OC 8G it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the GIGABYTE GeForce RTX 2070 GAMING OC WHITE 8G is 7680x4320 pixels. |
||
7680x4320 | Max. resolution | 7680x4320 |
12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
No | Raytracing | Yes |
Yes | DLSS / FSR | Yes |
GIGABYTE RGB Fusion | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
Decode / Encode | h264 | Decode / Encode |
Decode / Encode | h265 / HEVC | Decode / Encode |
No | AV1 | No |
Decode | VP8 | Decode |
Decode / Encode | VP9 | Decode |
DimensionsThe GIGABYTE Radeon RX 5700 Gaming OC 8G is connected to the system via PCIe 4.0 x 16 lanes and requires 3 PCIe-Slots space in the housing. The GIGABYTE GeForce RTX 2070 GAMING OC WHITE 8G needs the space of 2 PCIe-Slots in the case and has a PCIe 3.0 x 16 Lanes interface. |
||
280 mm | Length | 280 mm |
115 mm | Height | 117 mm |
50 mm | Width | -- |
3 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
-- | Weight | -- |
PCIe 4.0 x 16 | GPU Interface | PCIe 3.0 x 16 |
Additional dataThe GIGABYTE Radeon RX 5700 Gaming OC 8G has been manufactured with a structure width of 7 nanometers since Q3/2019. The GIGABYTE GeForce RTX 2070 GAMING OC WHITE 8G came on the market in Q4/2018 and will have a structure width of 12 nanometers manufactured. |
||
RX5700 CLD 8GO | Part-no | GV-N2070GAMINGOC WHITE-8GC |
Q3/2019 | Release date | Q4/2018 |
449 $ | Launch Price | 499 $ (Reference) |
7 nm | Structure size | 12 nm |
data sheet | Documents | data sheet |
