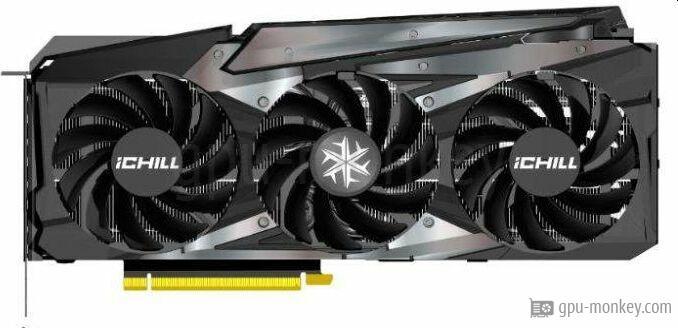

INNO3D GeForce RTX 3080 Ti iCHILL X4
vs
ASUS TUF Gaming GeForce RTX 3080 Ti
GPU comparison with benchmarksThe INNO3D GeForce RTX 3080 Ti iCHILL X4 has 10240 shader units and these clock a maximum of 1.71 GHz which results in an FP32 computing power of 35.02 TFLOPS.
The ASUS TUF Gaming GeForce RTX 3080 Ti has 10240 shader units and these clock at a maximum of 1.70 GHz and achieve an FP32 computing power of 34.71 TFLOPS. |
||
GPUThe INNO3D GeForce RTX 3080 Ti iCHILL X4 is equipped with a graphics chip of the Ampere architecture, which has 80 streaming multiprocessors. The graphics card ASUS TUF Gaming GeForce RTX 3080 Ti is based on the Ampere architecture and is equipped with 80 execution units. |
||
| INNO3D GeForce RTX 3080 Ti iCHILL X4 | GPU | ASUS TUF Gaming GeForce RTX 3080 Ti |
| NVIDIA GeForce RTX 3080 Ti | Based on | NVIDIA GeForce RTX 3080 Ti |
| GA102-225-A1 | GPU Chip | GA102-225-A1 |
| Ampere | Architecture | Ampere |
| 80 | Streaming Multiprocessors | 80 |
| 10240 | Shader | 10240 |
| 112 | Render Output Units | 112 |
| 320 | Texture Units | 320 |
| 80 | Raytracing Cores | 80 |
MemoryThe INNO3D GeForce RTX 3080 Ti iCHILL X4 is equipped with a 12 GB large GDDR6X graphics memory, which is equipped with 1.188 GHz clocks. The ASUS TUF Gaming GeForce RTX 3080 Ti has a 12 GB large GDDR6X graphics memory and the memory clock is 1.188GHz. |
||
| 12 GB | Memory Size | 12 GB |
| GDDR6X | Memory Type | GDDR6X |
| 1.188 GHz | Memory Clock | 1.188 GHz |
| 19.0 Gbps | Memory Speed | 19.0 Gbps |
| 912 GB/s | Memory bandwidth | 912 GB/s |
| 384 bit | Memory Interface | 384 bit |
Clock SpeedsThe INNO3D GeForce RTX 3080 Ti iCHILL X4 has a turbo clock of 1.710 GHz  + 3 %. The turbo frequency of the ASUS TUF Gaming GeForce RTX 3080 Ti is 1.695 GHz+ 2 %. |
||
| 1.365 GHz | Base Clock | 1.365 GHz |
| 1.710 GHz+ 3 % |
Boost Clock | 1.695 GHz+ 2 % |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe INNO3D GeForce RTX 3080 Ti iCHILL X4 has 2 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 93 °C. The ASUS TUF Gaming GeForce RTX 3080 Ti is equipped with a 2 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 93 °C. |
||
| 350 W | TDP | 350 W |
| 350 W | TDP (up) | 370 W |
| 93 °C | Tjunction max | 93 °C |
| 2 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe graphics processor and graphics memory of the INNO3D GeForce RTX 3080 Ti iCHILL X4 are cooled with a Air cooling. The ASUS TUF Gaming GeForce RTX 3080 Ti is cooled by a Air cooling. |
||
| Axial | Fan-Type | Axial |
| 3 x 90 mm | Fan 1 | 3 x 95 mm |
| 1 x 45 mm | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 43 dB | Noise (Load) | -- |
ConnectivityThe INNO3D GeForce RTX 3080 Ti iCHILL X4 supports the downward compatible copy protection HDCP in version 2.3. The ASUS TUF Gaming GeForce RTX 3080 Ti supports HDCP in version 2.3 and all previous versions. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 2x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe INNO3D GeForce RTX 3080 Ti iCHILL X4 supports the DirectX standard from Microsoft in version 12_2 (Ultimate). The ASUS TUF Gaming GeForce RTX 3080 Ti supports Microsoft's DirectX version 12_2 (Ultimate). |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light | LED | ASUS Aura Sync |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe INNO3D GeForce RTX 3080 Ti iCHILL X4 is 60 mm wide and therefore needs the space of 3 PCIe-Slots in the case. The width of the ASUS TUF Gaming GeForce RTX 3080 Ti is 60 mm and thus requires the space of 3 PCIe-Slots in the PC case. |
||
| 300 mm | Length | 300 mm |
| 135 mm | Height | 127 mm |
| 60 mm | Width | 52 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataManufactured using the 8 nanometer process, INNO3D GeForce RTX 3080 Ti iCHILL X4 was released in Q2/2021. The ASUS TUF Gaming GeForce RTX 3080 Ti published in Q2/2021 is manufactured with a structure width of 8 nanometers. |
||
| C308T4-126XX-1810VA36 | Part-no | TUF-RTX3080TI-12G-GAMING |
| Q2/2021 | Release date | Q2/2021 |
| 1,199 $ (Reference) | Launch Price | 1,199 $ (Reference) |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.365 GHz, 12 GB (350 W TDP)
Buy this graphic card at amazon!
1.365 GHz, 12 GB (350 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
Geekbench 6 - Vulkan
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
INNO3D GeForce RTX 3080 Ti iCHILL X4
12 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 Ti
12 GB GDDR6X |
||
