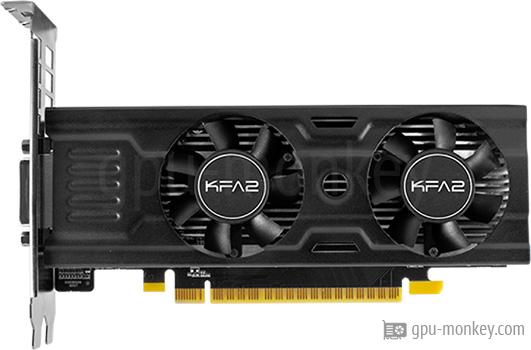

KFA2 GeForce GTX 1630 LP
vs
EVGA GeForce GTX 1080 Ti K|NGP|N GAMING


GPU comparison with benchmarks

The KFA2 GeForce GTX 1630 LP is based on the NVIDIA GeForce GTX 1630 (Turing) and has 4 GB GDDR6 graphics memory with a bandwidth of 96 GB/s.

The EVGA GeForce GTX 1080 Ti K|NGP|N GAMING is based on the NVIDIA GeForce GTX 1080 Ti (Pascal) and has 11 GB GDDR5X graphics memory with a bandwidth of 484 GB/s.

GPU

The KFA2 GeForce GTX 1630 LP has the TU117-150 graphics chip installed, which is based on the Turing architecture.

The EVGA GeForce GTX 1080 Ti K|NGP|N GAMING is based on the graphics chip GP102-350-K1-A1, which comes from the Pascal architecture.
KFA2 GeForce GTX 1630 LP GPU EVGA GeForce GTX 1080 Ti K|NGP|N GAMING
NVIDIA GeForce GTX 1630 Based on NVIDIA GeForce GTX 1080 Ti
TU117-150 GPU Chip GP102-350-K1-A1
Turing Architecture Pascal
8 Streaming Multiprocessors 28
512 Shader 3584
16 Render Output Units 88
32 Texture Units 224
0 Raytracing Cores 0

Memory

The graphics memory of the KFA2 GeForce GTX 1630 LP clocks at 1.500 GHz, which corresponds to a speed of 12.0 Gbps.

The graphics memory speed of the EVGA GeForce GTX 1080 Ti K|NGP|N GAMING is 11.0 Gbps and the clock speed is 1.376 GHz.

4 GB Memory Size 11 GB
GDDR6 Memory Type GDDR5X
1.500 GHz Memory Clock 1.376 GHz
12.0 Gbps Memory Speed 11.0 Gbps
96 GB/s Memory bandwidth 484 GB/s
64 bit Memory Interface 352 bit

Clock Speeds

The clock frequency of a graphics card determines the speed in connection with the graphics architecture.

1.740 GHz Base Clock 1.582 GHz
1.800 GHz Boost Clock 1.695 GHz
Avg (Game) Clock
Yes Overclocking Yes

Thermal Design

The KFA2 GeForce GTX 1630 LP is powered by connectors. The TDP (Thermal Design Power) of the graphics card is 75 W.

The EVGA GeForce GTX 1080 Ti K|NGP|N GAMING has 2 x 8-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 250 W.

75 W TDP 250 W
-- TDP (up) --
90 °C Tjunction max 91 °C
PCIe-Power 2 x 8-Pin

Cooler & Fans

The KFA2 GeForce GTX 1630 LP is equipped with a total of 2 Axial main fans.

The EVGA GeForce GTX 1080 Ti K|NGP|N GAMING has 3 Axial main fans that cool the GPU and memory.

Axial Fan-Type Axial
2 x 50 mm Fan 1 3 x 90 mm
-- Fan 2 --
Air cooling Cooler-Type Air cooling
dB Noise (Idle) 0 dB
-- Noise (Load) --

Connectivity

Up to 3 screens can be operated with the KFA2 GeForce GTX 1630 LP.

The EVGA GeForce GTX 1080 Ti K|NGP|N GAMING supports the operation of a maximum of 4 monitors.

3 Max. Displays 4
2.3 HDCP-Version 2.2
1x HDMI v2.0b HDMI Ports 1x HDMI v2.0b
1x DP v1.4a DP Ports 3x DP v1.4
1 DVI Ports 1
-- VGA Ports --
-- USB-C Ports --

Featureset

With the KFA2 GeForce GTX 1630 LP it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels.

The maximum supported resolution of the EVGA GeForce GTX 1080 Ti K|NGP|N GAMING is 7680x4320 pixels.

7680x4320 Max. resolution 7680x4320
12_1 DirectX 12_1
No Raytracing No
Yes DLSS / FSR Yes
No LED lighting LED No LED lighting

Supported Video Codecs

The support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card.

Decode / Encode h264 Decode / Encode
Decode / Encode h265 / HEVC Decode / Encode
No AV1 No
Decode VP8 Decode
Decode VP9 Decode

Dimensions

The KFA2 GeForce GTX 1630 LP is connected to the system via PCIe 3.0 x 8 lanes and requires 2 PCIe-Slots space in the housing.

The EVGA GeForce GTX 1080 Ti K|NGP|N GAMING needs the space of 2 PCIe-Slots in the case and has a PCIe 3.0 x 16 Lanes interface.

182 mm Length 300 mm
121 mm Height 143 mm
39 mm Width --
2 PCIe-Slots Width (Slots) 2 PCIe-Slots
-- Weight --
PCIe 3.0 x 8 GPU Interface PCIe 3.0 x 16

Additional data

The KFA2 GeForce GTX 1630 LP has been manufactured with a structure width of 12 nanometers since Q2/2022.

The EVGA GeForce GTX 1080 Ti K|NGP|N GAMING came on the market in Q1/2017 and will have a structure width of 16 nanometers manufactured.

63NQL4HP86LP Part-no 11G-P4-6798-KR
Q2/2022 Release date Q1/2017
169 $ (Reference) Launch Price 699 $ (Reference)
12 nm Structure size 16 nm
data sheet Documents data sheet

Rate these graphics cards now

Here you can rate the KFA2 GeForce GTX 1630 LP to help other visitors make their purchasing decisions. The average rating is 0 stars (0 ratings). Rate now:
Here you can rate the EVGA GeForce GTX 1080 Ti K|NGP|N GAMING to help other visitors make their purchasing decisions. The average rating is 0 stars (0 ratings). Rate now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)
