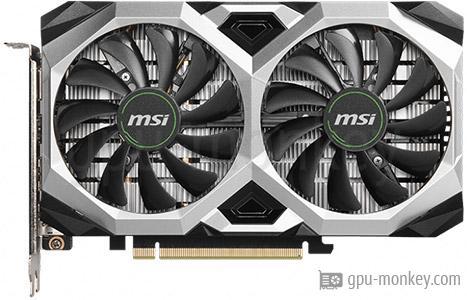

MSI GeForce GTX 1660 SUPER VENTUS XS V2
vs

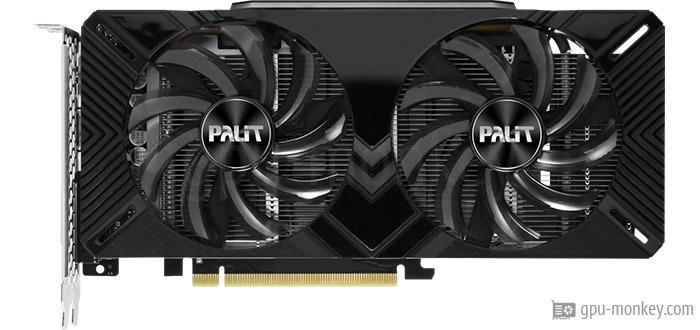

Palit GeForce RTX 2060 Dual V1
GPU comparison with benchmarksThe MSI GeForce GTX 1660 SUPER VENTUS XS V2 has 1408 shader units and these clock a maximum of 1.79 GHz which results in an FP32 computing power of 5.03 TFLOPS.
The Palit GeForce RTX 2060 Dual V1 has 1920 shader units and these clock at a maximum of 1.68 GHz and achieve an FP32 computing power of 6.45 TFLOPS. |
||
GPUThe MSI GeForce GTX 1660 SUPER VENTUS XS V2 is equipped with a graphics chip of the Turing architecture, which has 22 streaming multiprocessors. The graphics card Palit GeForce RTX 2060 Dual V1 is based on the Turing architecture and is equipped with 30 execution units. |
||
| MSI GeForce GTX 1660 SUPER VENTUS XS V2 | GPU | Palit GeForce RTX 2060 Dual V1 |
| NVIDIA GeForce GTX 1660 SUPER | Based on | NVIDIA GeForce RTX 2060 |
| TU116-300-A1 | GPU Chip | TU106 |
| Turing | Architecture | Turing |
| 22 | Streaming Multiprocessors | 30 |
| 1408 | Shader | 1920 |
| 48 | Render Output Units | 48 |
| 88 | Texture Units | 120 |
| 0 | Raytracing Cores | 30 |
MemoryThe MSI GeForce GTX 1660 SUPER VENTUS XS V2 is equipped with a 6 GB large GDDR6 graphics memory, which is equipped with 1.750 GHz clocks. The Palit GeForce RTX 2060 Dual V1 has a 6 GB large GDDR6 graphics memory and the memory clock is 1.750GHz. |
||
| 6 GB | Memory Size | 6 GB |
| GDDR6 | Memory Type | GDDR6 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 14.0 Gbps | Memory Speed | 14.0 Gbps |
| 336 GB/s | Memory bandwidth | 336 GB/s |
| 192 bit | Memory Interface | 192 bit |
Clock SpeedsThe MSI GeForce GTX 1660 SUPER VENTUS XS V2 has a turbo clock of 1.785 GHz. The turbo frequency of the Palit GeForce RTX 2060 Dual V1 is 1.680 GHz. |
||
| 1.530 GHz | Base Clock | 1.365 GHz |
| 1.785 GHz | Boost Clock | 1.680 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe MSI GeForce GTX 1660 SUPER VENTUS XS V2 has 1 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 93 °C. The Palit GeForce RTX 2060 Dual V1 is equipped with a 1 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 88 °C. |
||
| 125 W | TDP | 160 W |
| -- | TDP (up) | -- |
| 93 °C | Tjunction max | 88 °C |
| 1 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe graphics processor and graphics memory of the MSI GeForce GTX 1660 SUPER VENTUS XS V2 are cooled with a Air cooling. The Palit GeForce RTX 2060 Dual V1 is cooled by a Air cooling. |
||
| Axial | Fan-Type | Axial |
| 2 x 90 mm | Fan 1 | 2 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityThe MSI GeForce GTX 1660 SUPER VENTUS XS V2 supports the downward compatible copy protection HDCP in version 2.2. The Palit GeForce RTX 2060 Dual V1 supports HDCP in version 2.2 and all previous versions. |
||
| 3 | Max. Displays | 4 |
| 2.2 | HDCP-Version | 2.2 |
| 1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.0b |
| 3x DP v1.4a | DP Ports | 1x DP v1.4a |
| -- | DVI Ports | 1 |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe MSI GeForce GTX 1660 SUPER VENTUS XS V2 supports the DirectX standard from Microsoft in version 12_1. The Palit GeForce RTX 2060 Dual V1 supports Microsoft's DirectX version 12_2 (Ultimate). |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_1 | DirectX | 12_2 (Ultimate) |
| No | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | No LED lighting |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| No | AV1 | No |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe MSI GeForce GTX 1660 SUPER VENTUS XS V2 is 43 mm wide and therefore needs the space of 2 PCIe-Slots in the case. The width of the Palit GeForce RTX 2060 Dual V1 is 43 mm and thus requires the space of 2 PCIe-Slots in the PC case. |
||
| 205 mm | Length | 235 mm |
| 127 mm | Height | 115 mm |
| 43 mm | Width | 40 mm |
| 2 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| 729 g | Weight | -- |
| PCIe 3.0 x 16 | GPU Interface | PCIe 3.0 x 16 |
Additional dataManufactured using the 12 nanometer process, MSI GeForce GTX 1660 SUPER VENTUS XS V2 was released in Q4/2019. The Palit GeForce RTX 2060 Dual V1 published in Q1/2019 is manufactured with a structure width of 12 nanometers. |
||
| -- | Part-no | NE62060018J9-1160A-1 |
| Q4/2019 | Release date | Q1/2019 |
| 229 $ (Reference) | Launch Price | 349 $ (Reference) |
| 12 nm | Structure size | 12 nm |
| data sheet | Documents | data sheet |
1.530 GHz, 6 GB (125 W TDP)
Buy this graphic card at amazon!
1.365 GHz, 6 GB (160 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
MSI GeForce GTX 1660 SUPER VENTUS XS V2
6 GB GDDR6 |
||
|
Palit GeForce RTX 2060 Dual V1
6 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
MSI GeForce GTX 1660 SUPER VENTUS XS V2
6 GB GDDR6 |
||
|
|
Palit GeForce RTX 2060 Dual V1
6 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
Palit GeForce RTX 2060 Dual V1
6 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
Palit GeForce RTX 2060 Dual V1
6 GB GDDR6 |
||
2560x1440 (1440p)
|
|
Palit GeForce RTX 2060 Dual V1
6 GB GDDR6 |
||
1920x1080 (1080p)
|
|
Palit GeForce RTX 2060 Dual V1
6 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.2560x1440 (1440p)
|
|
MSI GeForce GTX 1660 SUPER VENTUS XS V2
6 GB GDDR6 |
||
1920x1080 (1080p)
|
|
MSI GeForce GTX 1660 SUPER VENTUS XS V2
6 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
MSI GeForce GTX 1660 SUPER VENTUS XS V2
6 GB GDDR6 |
||
|
|
Palit GeForce RTX 2060 Dual V1
6 GB GDDR6 |
||
2560x1440 (1440p)
|
|
MSI GeForce GTX 1660 SUPER VENTUS XS V2
6 GB GDDR6 |
||
|
|
Palit GeForce RTX 2060 Dual V1
6 GB GDDR6 |
||
1920x1080 (1080p)
|
|
MSI GeForce GTX 1660 SUPER VENTUS XS V2
6 GB GDDR6 |
||
|
|
Palit GeForce RTX 2060 Dual V1
6 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
MSI GeForce GTX 1660 SUPER VENTUS XS V2
6 GB GDDR6 |
||
|
|
Palit GeForce RTX 2060 Dual V1
6 GB GDDR6 |
||
