GPU comparison with benchmarksThe MSI GeForce RTX 3060 Ti Gaming X 8G LHR has 4864 shader units and these clock a maximum of 1.77 GHz which results in an FP32 computing power of 17.22 TFLOPS.

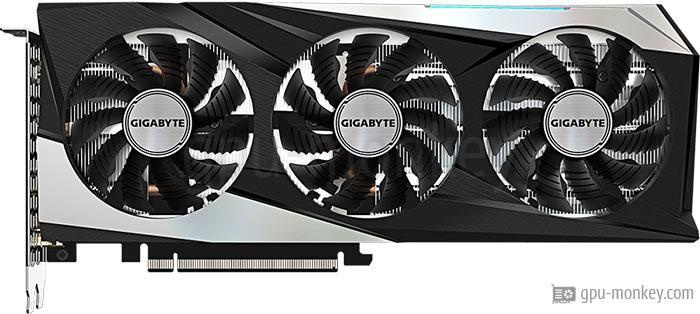

The GIGABYTE GeForce RTX 3060 Ti Gaming 8G has 4864 shader units and these clock at a maximum of 1.67 GHz and achieve an FP32 computing power of 16.20 TFLOPS. |
||
GPUThe MSI GeForce RTX 3060 Ti Gaming X 8G LHR is equipped with a graphics chip of the Ampere architecture, which has 38 streaming multiprocessors. The graphics card GIGABYTE GeForce RTX 3060 Ti Gaming 8G is based on the Ampere architecture and is equipped with 38 execution units. |
||
MSI GeForce RTX 3060 Ti Gaming X 8G LHR | GPU | GIGABYTE GeForce RTX 3060 Ti Gaming 8G |
NVIDIA GeForce RTX 3060 Ti LHR | Based on | NVIDIA GeForce RTX 3060 Ti |
GA104-202-A1 | GPU Chip | GA104-200-A1 |
Ampere | Architecture | Ampere |
38 | Streaming Multiprocessors | 38 |
4864 | Shader | 4864 |
80 | Render Output Units | 80 |
152 | Texture Units | 152 |
38 | Raytracing Cores | 38 |
MemoryThe MSI GeForce RTX 3060 Ti Gaming X 8G LHR is equipped with a 8 GB large GDDR6 graphics memory, which is equipped with 1.750 GHz clocks. The GIGABYTE GeForce RTX 3060 Ti Gaming 8G has a 8 GB large GDDR6 graphics memory and the memory clock is 1.750GHz. |
||
8 GB | Memory Size | 8 GB |
GDDR6 | Memory Type | GDDR6 |
1.750 GHz | Memory Clock | 1.750 GHz |
14.0 Gbps | Memory Speed | 14.0 Gbps |
448 GB/s | Memory bandwidth | 448 GB/s |
256 bit | Memory Interface | 256 bit |
Clock SpeedsThe MSI GeForce RTX 3060 Ti Gaming X 8G LHR has a turbo clock of 1.770 GHz. The turbo frequency of the GIGABYTE GeForce RTX 3060 Ti Gaming 8G is 1.665 GHz. |
||
1.410 GHz | Base Clock | 1.410 GHz |
1.770 GHz | Boost Clock | 1.665 GHz |
1.67 GHz | Avg (Game) Clock | |
Yes | Overclocking | Yes |
Thermal DesignThe MSI GeForce RTX 3060 Ti Gaming X 8G LHR has 1 x 6-Pin, 1 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 93 °C. The GIGABYTE GeForce RTX 3060 Ti Gaming 8G is equipped with a 1 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 93 °C. |
||
220 W | TDP | 200 W |
230 W | TDP (up) | 220 W |
93 °C | Tjunction max | 93 °C |
1 x 6-Pin, 1 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe graphics processor and graphics memory of the MSI GeForce RTX 3060 Ti Gaming X 8G LHR are cooled with a Air cooling. The GIGABYTE GeForce RTX 3060 Ti Gaming 8G is cooled by a Air cooling. |
||
Axial | Fan-Type | Axial |
2 x 100 mm | Fan 1 | 3 x 80 mm |
-- | Fan 2 | -- |
Air cooling | Cooler-Type | Air cooling |
0 dB | Noise (Idle) | 0 dB |
36 dB | Noise (Load) | -- |
ConnectivityThe MSI GeForce RTX 3060 Ti Gaming X 8G LHR supports the downward compatible copy protection HDCP in version 2.3. The GIGABYTE GeForce RTX 3060 Ti Gaming 8G supports HDCP in version 2.3 and all previous versions. |
||
4 | Max. Displays | 4 |
2.3 | HDCP-Version | 2.3 |
1x HDMI v2.1 | HDMI Ports | 2x HDMI v2.1 |
3x DP v1.4a | DP Ports | 2x DP v1.4a |
-- | DVI Ports | -- |
-- | VGA Ports | -- |
-- | USB-C Ports | -- |
FeaturesetThe MSI GeForce RTX 3060 Ti Gaming X 8G LHR supports the DirectX standard from Microsoft in version 12_2 (Ultimate). The GIGABYTE GeForce RTX 3060 Ti Gaming 8G supports Microsoft's DirectX version 12_2 (Ultimate). |
||
7680x4320 | Max. resolution | 7680x4320 |
12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
Yes | Raytracing | Yes |
Yes | DLSS / FSR | Yes |
MSI Mystic Light | LED | GIGABYTE RGB Fusion |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
Decode / Encode | h264 | Decode / Encode |
Decode / Encode | h265 / HEVC | Decode / Encode |
Decode | AV1 | Decode |
Decode | VP8 | Decode |
Decode | VP9 | Decode |
DimensionsThe MSI GeForce RTX 3060 Ti Gaming X 8G LHR is 51 mm wide and therefore needs the space of 2 PCIe-Slots in the case. The width of the GIGABYTE GeForce RTX 3060 Ti Gaming 8G is 51 mm and thus requires the space of 2 PCIe-Slots in the PC case. |
||
278 mm | Length | 282 mm |
131 mm | Height | 117 mm |
51 mm | Width | 41 mm |
3 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
1007 g | Weight | -- |
PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataManufactured using the 8 nanometer process, MSI GeForce RTX 3060 Ti Gaming X 8G LHR was released in Q2/2021. The GIGABYTE GeForce RTX 3060 Ti Gaming 8G published in Q4/2020 is manufactured with a structure width of 8 nanometers. |
||
-- | Part-no | GV-N306TGAMING-8GD |
Q2/2021 | Release date | Q4/2020 |
459 $ | Launch Price | 399 $ (Reference) |
8 nm | Structure size | 8 nm |
data sheet | Documents | data sheet |
![]() |
