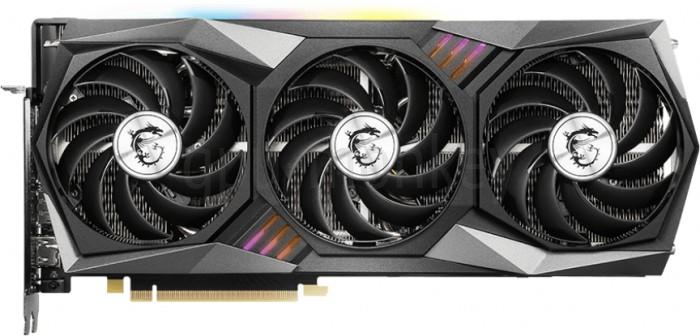

MSI GeForce RTX 3070 Gaming Trio 8G
vs
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
GPU comparison with benchmarksIn the gpu comparison between the MSI GeForce RTX 3070 Gaming Trio 8G and the ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe MSI GeForce RTX 3070 Gaming Trio 8G is based on the NVIDIA GeForce RTX 3070 and has 5888 texture shaders and 46 execution units. ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition is based on NVIDIA GeForce RTX 3070 Ti, which has 6144 shaders and 48 execution units. |
||
| MSI GeForce RTX 3070 Gaming Trio 8G | GPU | ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition |
| NVIDIA GeForce RTX 3070 | Based on | NVIDIA GeForce RTX 3070 Ti |
| GA104-300-A1 | GPU Chip | GA104-400-A1 |
| Ampere | Architecture | Ampere |
| 46 | Streaming Multiprocessors | 48 |
| 5888 | Shader | 6144 |
| 96 | Render Output Units | 96 |
| 184 | Texture Units | 192 |
| 46 | Raytracing Cores | 48 |
MemoryThe MSI GeForce RTX 3070 Gaming Trio 8G has 8 GB of graphics memory of the type GDDR6 and achieves a memory bandwidth of 448 GB/s. The ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition can access 8 GB GDDR6X graphics memory and thus achieves a memory bandwidth of 608 GB/s. |
||
| 8 GB | Memory Size | 8 GB |
| GDDR6 | Memory Type | GDDR6X |
| 1.750 GHz | Memory Clock | 1.188 GHz |
| 14.0 Gbps | Memory Speed | 19.0 Gbps |
| 448 GB/s | Memory bandwidth | 608 GB/s |
| 256 bit | Memory Interface | 256 bit |
Clock SpeedsThe MSI GeForce RTX 3070 Gaming Trio 8G clocks in the base with up to 1.500 GHz. The base frequency of the ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition is 1.580 GHz. |
||
| 1.500 GHz | Base Clock | 1.580 GHz |
| 1.770 GHz | Boost Clock | 1.815 GHz |
| Avg (Game) Clock | 1.79 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the MSI GeForce RTX 3070 Gaming Trio 8G is 240 W. The graphics card is supplied with energy via the 2 x 8-Pin connector. The ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition has a TDP of 290 W and is supplied with the required energy via 2 x 8-Pin PCIe power connectors. |
||
| 240 W | TDP | 290 W |
| 250 W | TDP (up) | -- |
| 93 °C | Tjunction max | 93 °C |
| 2 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe MSI GeForce RTX 3070 Gaming Trio 8G has a total of 3 Axial fans. The ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition has 3 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 90 mm | Fan 1 | 3 x 95 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 35-37 dB | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the MSI GeForce RTX 3070 Gaming Trio 8G. The ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 2x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe MSI GeForce RTX 3070 Gaming Trio 8G supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| MSI Mystic Light | LED | ASUS Aura Sync |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe MSI GeForce RTX 3070 Gaming Trio 8G is 323 mm long, 140 mm high and 56 mm wide. The ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition is 300 mm long, 127 mm high and 52 mm wide. |
||
| 323 mm | Length | 300 mm |
| 140 mm | Height | 127 mm |
| 56 mm | Width | 52 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| 1441 g | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe MSI GeForce RTX 3070 Gaming Trio 8G was released in Q4/2020 at a price of 679 $. The ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition was introduced in Q2/2021 at a price of 599 $ (Reference). |
||
| -- | Part-no | -- |
| Q4/2020 | Release date | Q2/2021 |
| 679 $ | Launch Price | 599 $ (Reference) |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.500 GHz, 8 GB (240 W TDP)
Buy this graphic card at amazon!
1.580 GHz, 8 GB (290 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
MSI GeForce RTX 3070 Gaming Trio 8G
8 GB GDDR6 |
||
|
|
ASUS TUF Gaming GeForce RTX 3070 Ti OC Edition
8 GB GDDR6X |
||
