MSI GeForce RTX 3070 Gaming X Trio 8G
vs

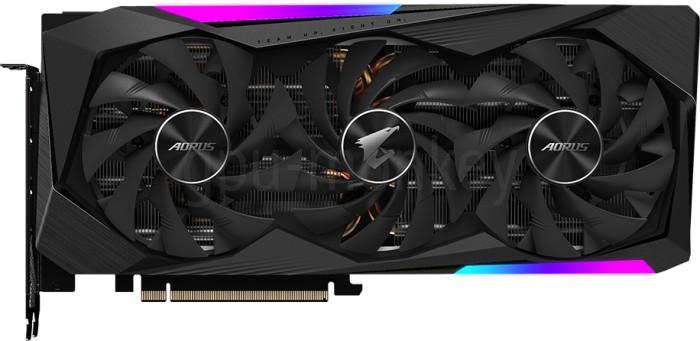

GIGABYTE AORUS GeForce RTX 3070 Master 8G
GPU comparison with benchmarksThe MSI GeForce RTX 3070 Gaming X Trio 8G is based on the NVIDIA GeForce RTX 3070 (Ampere) and has 8 GB GDDR6 graphics memory with a bandwidth of 448 GB/s.
The GIGABYTE AORUS GeForce RTX 3070 Master 8G is based on the NVIDIA GeForce RTX 3070 (Ampere) and has 8 GB GDDR6 graphics memory with a bandwidth of 448 GB/s. |
||
GPUThe MSI GeForce RTX 3070 Gaming X Trio 8G has the GA104-300-A1 graphics chip installed, which is based on the Ampere architecture. The GIGABYTE AORUS GeForce RTX 3070 Master 8G is based on the graphics chip GA104-300-A1, which comes from the Ampere architecture. |
||
| MSI GeForce RTX 3070 Gaming X Trio 8G | GPU | GIGABYTE AORUS GeForce RTX 3070 Master 8G |
| NVIDIA GeForce RTX 3070 | Based on | NVIDIA GeForce RTX 3070 |
| GA104-300-A1 | GPU Chip | GA104-300-A1 |
| Ampere | Architecture | Ampere |
| 46 | Streaming Multiprocessors | 46 |
| 5888 | Shader | 5888 |
| 96 | Render Output Units | 96 |
| 184 | Texture Units | 184 |
| 46 | Raytracing Cores | 46 |
MemoryThe graphics memory of the MSI GeForce RTX 3070 Gaming X Trio 8G clocks at 1.750 GHz, which corresponds to a speed of 14.0 Gbps. The graphics memory speed of the GIGABYTE AORUS GeForce RTX 3070 Master 8G is 14.0 Gbps and the clock speed is 1.750 GHz. |
||
| 8 GB | Memory Size | 8 GB |
| GDDR6 | Memory Type | GDDR6 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 14.0 Gbps | Memory Speed | 14.0 Gbps |
| 448 GB/s | Memory bandwidth | 448 GB/s |
| 256 bit | Memory Interface | 256 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 1.500 GHz | Base Clock | 1.500 GHz |
1.830 GHz + 6 % |
Boost Clock | 1.845 GHz+ 7 % |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe MSI GeForce RTX 3070 Gaming X Trio 8G is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 240 W + 9 %.The GIGABYTE AORUS GeForce RTX 3070 Master 8G has 2 x 8-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 220 W. |
||
| 240 W+ 9 % |
TDP | 220 W |
| 250 W+ 4 % |
TDP (up) | 250 W+ 4 % |
| 93 °C | Tjunction max | 93 °C |
| 2 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe MSI GeForce RTX 3070 Gaming X Trio 8G is equipped with a total of 3 Axial main fans. The GIGABYTE AORUS GeForce RTX 3070 Master 8G has 3 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 90 mm | Fan 1 | 3 x 100 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 35-37 dB | Noise (Load) | 42-44 dB |
ConnectivityUp to 4 screens can be operated with the MSI GeForce RTX 3070 Gaming X Trio 8G. The GIGABYTE AORUS GeForce RTX 3070 Master 8G supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 3x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the MSI GeForce RTX 3070 Gaming X Trio 8G it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the GIGABYTE AORUS GeForce RTX 3070 Master 8G is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| MSI Mystic Light | LED | GIGABYTE RGB Fusion |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe MSI GeForce RTX 3070 Gaming X Trio 8G is connected to the system via PCIe 4.0 x 16 lanes and requires 3 PCIe-Slots space in the housing. The GIGABYTE AORUS GeForce RTX 3070 Master 8G needs the space of 3 PCIe-Slots in the case and has a PCIe 4.0 x 16 Lanes interface. |
||
| 323 mm | Length | 290 mm |
| 140 mm | Height | 131 mm |
| 56 mm | Width | 60 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| 1441 g | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe MSI GeForce RTX 3070 Gaming X Trio 8G has been manufactured with a structure width of 8 nanometers since Q4/2020. The GIGABYTE AORUS GeForce RTX 3070 Master 8G came on the market in Q4/2020 and will have a structure width of 8 nanometers manufactured. |
||
| -- | Part-no | GV-N3070AORUS M-8GD |
| Q4/2020 | Release date | Q4/2020 |
| 699 $ | Launch Price | 779 $ |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.500 GHz, 8 GB (240 W TDP)
Buy this graphic card at amazon!
1.500 GHz, 8 GB (220 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
MSI GeForce RTX 3070 Gaming X Trio 8G
8 GB GDDR6 |
||
|
|
GIGABYTE AORUS GeForce RTX 3070 Master 8G
8 GB GDDR6 |
||
