MSI GeForce RTX 3070 Ventus 3X 8G OC
vs

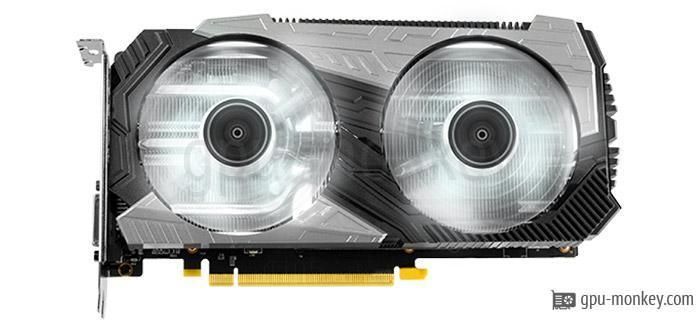

GALAX GeForce RTX 2060 PLUS (1-Click OC)
GPU comparison with benchmarksThe MSI GeForce RTX 3070 Ventus 3X 8G OC has 5888 shader units and these clock a maximum of 1.76 GHz which results in an FP32 computing power of 20.66 TFLOPS.
The GALAX GeForce RTX 2060 PLUS (1-Click OC) has 1920 shader units and these clock at a maximum of 1.70 GHz and achieve an FP32 computing power of 6.51 TFLOPS. |
||
GPUThe MSI GeForce RTX 3070 Ventus 3X 8G OC is equipped with a graphics chip of the Ampere architecture, which has 46 streaming multiprocessors. The graphics card GALAX GeForce RTX 2060 PLUS (1-Click OC) is based on the Turing architecture and is equipped with 30 execution units. |
||
| MSI GeForce RTX 3070 Ventus 3X 8G OC | GPU | GALAX GeForce RTX 2060 PLUS (1-Click OC) |
| NVIDIA GeForce RTX 3070 | Based on | NVIDIA GeForce RTX 2060 |
| GA104-300-A1 | GPU Chip | TU106 |
| Ampere | Architecture | Turing |
| 46 | Streaming Multiprocessors | 30 |
| 5888 | Shader | 1920 |
| 96 | Render Output Units | 48 |
| 184 | Texture Units | 120 |
| 46 | Raytracing Cores | 30 |
MemoryThe MSI GeForce RTX 3070 Ventus 3X 8G OC is equipped with a 8 GB large GDDR6 graphics memory, which is equipped with 1.750 GHz clocks. The GALAX GeForce RTX 2060 PLUS (1-Click OC) has a 6 GB large GDDR6 graphics memory and the memory clock is 1.750GHz. |
||
| 8 GB | Memory Size | 6 GB |
| GDDR6 | Memory Type | GDDR6 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 14.0 Gbps | Memory Speed | 14.0 Gbps |
| 448 GB/s | Memory bandwidth | 336 GB/s |
| 256 bit | Memory Interface | 192 bit |
Clock SpeedsThe MSI GeForce RTX 3070 Ventus 3X 8G OC has a turbo clock of 1.755 GHz. The turbo frequency of the GALAX GeForce RTX 2060 PLUS (1-Click OC) is 1.695 GHz. |
||
| 1.500 GHz | Base Clock | 1.365 GHz |
| 1.755 GHz | Boost Clock | 1.695 GHz |
| Avg (Game) Clock | 1.68 GHz | |
| Yes | Overclocking | Yes |
Thermal DesignThe MSI GeForce RTX 3070 Ventus 3X 8G OC has 2 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 93 °C. The GALAX GeForce RTX 2060 PLUS (1-Click OC) is equipped with a 1 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 88 °C. |
||
| 220 W | TDP | 160 W |
| 250 W | TDP (up) | -- |
| 93 °C | Tjunction max | 88 °C |
| 2 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe graphics processor and graphics memory of the MSI GeForce RTX 3070 Ventus 3X 8G OC are cooled with a Air cooling. The GALAX GeForce RTX 2060 PLUS (1-Click OC) is cooled by a Air cooling. |
||
| Axial | Fan-Type | Axial |
| 3 x 90 mm | Fan 1 | 2 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 36-37 dB | Noise (Load) | -- |
ConnectivityThe MSI GeForce RTX 3070 Ventus 3X 8G OC supports the downward compatible copy protection HDCP in version 2.3. The GALAX GeForce RTX 2060 PLUS (1-Click OC) supports HDCP in version 2.2 and all previous versions. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.2 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.0b |
| 3x DP v1.4a | DP Ports | 1x DP v1.4a |
| -- | DVI Ports | 1 |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe MSI GeForce RTX 3070 Ventus 3X 8G OC supports the DirectX standard from Microsoft in version 12_2 (Ultimate). The GALAX GeForce RTX 2060 PLUS (1-Click OC) supports Microsoft's DirectX version 12_2 (Ultimate). |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | Addressable LED |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | No |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe MSI GeForce RTX 3070 Ventus 3X 8G OC is 52 mm wide and therefore needs the space of 2 PCIe-Slots in the case. The width of the GALAX GeForce RTX 2060 PLUS (1-Click OC) is 52 mm and thus requires the space of 2 PCIe-Slots in the PC case. |
||
| 305 mm | Length | 245 mm |
| 121 mm | Height | 134 mm |
| 52 mm | Width | 41 mm |
| 3 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| 992 g | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 3.0 x 16 |
Additional dataManufactured using the 8 nanometer process, MSI GeForce RTX 3070 Ventus 3X 8G OC was released in Q4/2020. The GALAX GeForce RTX 2060 PLUS (1-Click OC) published in Q1/2019 is manufactured with a structure width of 12 nanometers. |
||
| -- | Part-no | 26NRL7HP68CX |
| Q4/2020 | Release date | Q1/2019 |
| 679 $ | Launch Price | 349 $ (Reference) |
| 8 nm | Structure size | 12 nm |
| data sheet | Documents | data sheet |
1.500 GHz, 8 GB (220 W TDP)
Buy this graphic card at amazon!
1.365 GHz, 6 GB (160 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
|
GALAX GeForce RTX 2060 PLUS (1-Click OC)
6 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2060 PLUS (1-Click OC)
6 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2060 PLUS (1-Click OC)
6 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2060 PLUS (1-Click OC)
6 GB GDDR6 |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2060 PLUS (1-Click OC)
6 GB GDDR6 |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2060 PLUS (1-Click OC)
6 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2060 PLUS (1-Click OC)
6 GB GDDR6 |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2060 PLUS (1-Click OC)
6 GB GDDR6 |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2060 PLUS (1-Click OC)
6 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
MSI GeForce RTX 3070 Ventus 3X 8G OC
8 GB GDDR6 |
||
|
|
GALAX GeForce RTX 2060 PLUS (1-Click OC)
6 GB GDDR6 |
||
