MSI GeForce RTX 3080 SUPRIM X 10G
vs

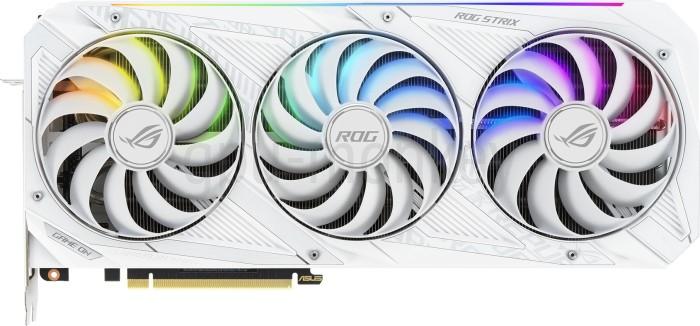

ASUS ROG Strix GeForce RTX 3080 White
GPU comparison with benchmarksThe MSI GeForce RTX 3080 SUPRIM X 10G has 8704 shader units and these clock a maximum of 1.92 GHz which results in an FP32 computing power of 33.43 TFLOPS.
The ASUS ROG Strix GeForce RTX 3080 White has 8704 shader units and these clock at a maximum of 1.74 GHz and achieve an FP32 computing power of 30.29 TFLOPS. |
||
GPUThe MSI GeForce RTX 3080 SUPRIM X 10G is equipped with a graphics chip of the Ampere architecture, which has 68 streaming multiprocessors. The graphics card ASUS ROG Strix GeForce RTX 3080 White is based on the Ampere architecture and is equipped with 68 execution units. |
||
| MSI GeForce RTX 3080 SUPRIM X 10G | GPU | ASUS ROG Strix GeForce RTX 3080 White |
| NVIDIA GeForce RTX 3080 | Based on | NVIDIA GeForce RTX 3080 |
| GA102-200-K1-A1 | GPU Chip | GA102-200-K1-A1 |
| Ampere | Architecture | Ampere |
| 68 | Streaming Multiprocessors | 68 |
| 8704 | Shader | 8704 |
| 96 | Render Output Units | 96 |
| 272 | Texture Units | 272 |
| 68 | Raytracing Cores | 68 |
MemoryThe MSI GeForce RTX 3080 SUPRIM X 10G is equipped with a 10 GB large GDDR6X graphics memory, which is equipped with 1.188 GHz clocks. The ASUS ROG Strix GeForce RTX 3080 White has a 10 GB large GDDR6X graphics memory and the memory clock is 1.188GHz. |
||
| 10 GB | Memory Size | 10 GB |
| GDDR6X | Memory Type | GDDR6X |
| 1.188 GHz | Memory Clock | 1.188 GHz |
| 19.0 Gbps | Memory Speed | 19.0 Gbps |
| 760 GB/s | Memory bandwidth | 760 GB/s |
| 320 bit | Memory Interface | 320 bit |
Clock SpeedsThe MSI GeForce RTX 3080 SUPRIM X 10G has a turbo clock of 1.920 GHz  + 12 %. The turbo frequency of the ASUS ROG Strix GeForce RTX 3080 White is 1.740 GHz+ 2 %. |
||
| 1.440 GHz | Base Clock | 1.440 GHz |
| 1.920 GHz+ 12 % |
Boost Clock | 1.740 GHz+ 2 % |
| 1.91 GHz | Avg (Game) Clock | 1.71 GHz |
| Yes | Overclocking | Yes |
Thermal DesignThe MSI GeForce RTX 3080 SUPRIM X 10G has 3 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 93 °C. The ASUS ROG Strix GeForce RTX 3080 White is equipped with a 3 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 93 °C. |
||
| 370 W+ 16 % |
TDP | 370 W+ 16 % |
| 430 W+ 16 % |
TDP (up) | 450 W+ 22 % |
| 93 °C | Tjunction max | 93 °C |
| 3 x 8-Pin | PCIe-Power | 3 x 8-Pin |
Cooler & FansThe graphics processor and graphics memory of the MSI GeForce RTX 3080 SUPRIM X 10G are cooled with a Air cooling. The ASUS ROG Strix GeForce RTX 3080 White is cooled by a Air cooling. |
||
| Axial | Fan-Type | Axial |
| 3 x 100 mm | Fan 1 | 3 x 100 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 38-40 dB | Noise (Load) | 42 dB |
ConnectivityThe MSI GeForce RTX 3080 SUPRIM X 10G supports the downward compatible copy protection HDCP in version 2.3. The ASUS ROG Strix GeForce RTX 3080 White supports HDCP in version 2.3 and all previous versions. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 2x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe MSI GeForce RTX 3080 SUPRIM X 10G supports the DirectX standard from Microsoft in version 12_2 (Ultimate). The ASUS ROG Strix GeForce RTX 3080 White supports Microsoft's DirectX version 12_2 (Ultimate). |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| MSI Mystic Light | LED | ASUS Aura Sync |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe MSI GeForce RTX 3080 SUPRIM X 10G is 61 mm wide and therefore needs the space of 3 PCIe-Slots in the case. The width of the ASUS ROG Strix GeForce RTX 3080 White is 61 mm and thus requires the space of 3 PCIe-Slots in the PC case. |
||
| 336 mm | Length | 319 mm |
| 140 mm | Height | 140 mm |
| 61 mm | Width | 58 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| 1882 g | Weight | 1900 g |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataManufactured using the 8 nanometer process, MSI GeForce RTX 3080 SUPRIM X 10G was released in Q3/2020. The ASUS ROG Strix GeForce RTX 3080 White published in Q3/2020 is manufactured with a structure width of 8 nanometers. |
||
| -- | Part-no | ROG-STRIX-RTX3080-10G-WHITE |
| Q3/2020 | Release date | Q3/2020 |
| 829 $ | Launch Price | 799 $ |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.440 GHz, 10 GB (370 W TDP)
Buy this graphic card at amazon!
1.440 GHz, 10 GB (370 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
MSI GeForce RTX 3080 SUPRIM X 10G
10 GB GDDR6X |
||
|
|
ASUS ROG Strix GeForce RTX 3080 White
10 GB GDDR6X |
||
