MSI GeForce RTX 3090 Gaming Trio 24G
vs

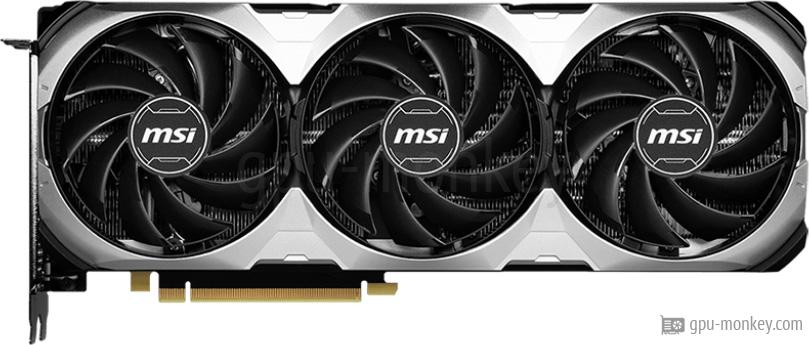

MSI GeForce RTX 4070 Ti VENTUS 3X 12G
GPU comparison with benchmarksIn the gpu comparison between the MSI GeForce RTX 3090 Gaming Trio 24G and the MSI GeForce RTX 4070 Ti VENTUS 3X 12G, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe MSI GeForce RTX 3090 Gaming Trio 24G is based on the NVIDIA GeForce RTX 3090 and has 10496 texture shaders and 82 execution units. MSI GeForce RTX 4070 Ti VENTUS 3X 12G is based on NVIDIA GeForce RTX 4070 Ti, which has 7680 shaders and 60 execution units. |
||
| MSI GeForce RTX 3090 Gaming Trio 24G | GPU | MSI GeForce RTX 4070 Ti VENTUS 3X 12G |
| NVIDIA GeForce RTX 3090 | Based on | NVIDIA GeForce RTX 4070 Ti |
| GA102-300-A1 | GPU Chip | AD104-400 |
| Ampere | Architecture | Ada Lovelace |
| 82 | Streaming Multiprocessors | 60 |
| 10496 | Shader | 7680 |
| 112 | Render Output Units | 80 |
| 328 | Texture Units | 240 |
| 82 | Raytracing Cores | 60 |
MemoryThe MSI GeForce RTX 3090 Gaming Trio 24G has 24 GB of graphics memory of the type GDDR6X and achieves a memory bandwidth of 936 GB/s. The MSI GeForce RTX 4070 Ti VENTUS 3X 12G can access 12 GB GDDR6X graphics memory and thus achieves a memory bandwidth of 504 GB/s. |
||
| 24 GB | Memory Size | 12 GB |
| GDDR6X | Memory Type | GDDR6X |
| 1.219 GHz | Memory Clock | 1.313 GHz |
| 19.5 Gbps | Memory Speed | 21.0 Gbps |
| 936 GB/s | Memory bandwidth | 504 GB/s |
| 384 bit | Memory Interface | 192 bit |
Clock SpeedsThe MSI GeForce RTX 3090 Gaming Trio 24G clocks in the base with up to 1.395 GHz. The base frequency of the MSI GeForce RTX 4070 Ti VENTUS 3X 12G is 2.310 GHz. |
||
| 1.395 GHz | Base Clock | 2.310 GHz |
| 1.740 GHz | Boost Clock | 2.610 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the MSI GeForce RTX 3090 Gaming Trio 24G is 370 W. The graphics card is supplied with energy via the 3 x 8-Pin connector. The MSI GeForce RTX 4070 Ti VENTUS 3X 12G has a TDP of 285 W and is supplied with the required energy via 1 x 16-Pin PCIe power connectors. |
||
| 370 W | TDP | 285 W |
| 380 W | TDP (up) | -- |
| 93 °C | Tjunction max | 90 °C |
| 3 x 8-Pin | PCIe-Power | 1 x 16-Pin |
Cooler & FansThe MSI GeForce RTX 3090 Gaming Trio 24G has a total of 3 Axial fans. The MSI GeForce RTX 4070 Ti VENTUS 3X 12G has 3 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 90 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 38 dB | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the MSI GeForce RTX 3090 Gaming Trio 24G. The MSI GeForce RTX 4070 Ti VENTUS 3X 12G supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe MSI GeForce RTX 3090 Gaming Trio 24G supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the MSI GeForce RTX 4070 Ti VENTUS 3X 12G is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| MSI Mystic Light | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe MSI GeForce RTX 3090 Gaming Trio 24G is 323 mm long, 140 mm high and 56 mm wide. The MSI GeForce RTX 4070 Ti VENTUS 3X 12G is 308 mm long, 123 mm high and 52 mm wide. |
||
| 323 mm | Length | 308 mm |
| 140 mm | Height | 123 mm |
| 56 mm | Width | 52 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| 1565 g | Weight | 1150 g |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe MSI GeForce RTX 3090 Gaming Trio 24G was released in Q3/2020 at a price of 1,499 $ (Reference). The MSI GeForce RTX 4070 Ti VENTUS 3X 12G was introduced in Q1/2023 at a price of 799 $ (Reference). |
||
| -- | Part-no | -- |
| Q3/2020 | Release date | Q1/2023 |
| 1,499 $ (Reference) | Launch Price | 799 $ (Reference) |
| 8 nm | Structure size | 4 nm |
| data sheet | Documents | data sheet |
1.395 GHz, 24 GB (370 W TDP)
Buy this graphic card at amazon!
2.310 GHz, 12 GB (285 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
MSI GeForce RTX 3090 Gaming Trio 24G
24 GB GDDR6X |
||
|
|
MSI GeForce RTX 4070 Ti VENTUS 3X 12G
12 GB GDDR6X |
||
