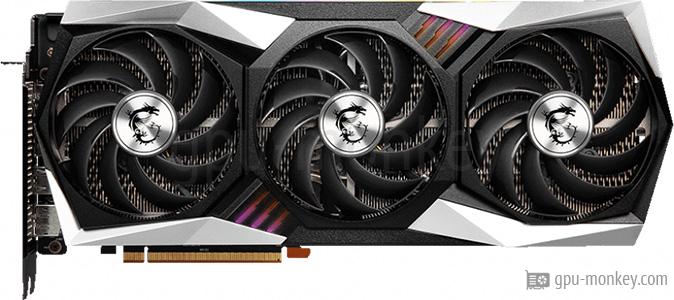

MSI Radeon RX 6750 XT GAMING TRIO 12G
vs
ASUS Dual GeForce RTX 3070

GPU comparison with benchmarks

Description

In the gpu comparison between the MSI Radeon RX 6750 XT GAMING TRIO 12G and the ASUS Dual GeForce RTX 3070, we compare both the technical data and the benchmark results of the two graphics cards.

The MSI Radeon RX 6750 XT GAMING TRIO 12G is based on the AMD Radeon RX 6750 XT (RDNA 2) and has 12 GB GDDR6 graphics memory with a bandwidth of 432 GB/s. The 2560 shader units clock with a maximum of 2.60 GHz which results in an FP32 processing power of 13.31 TFLOPS.

The ASUS Dual GeForce RTX 3070 is based on the NVIDIA GeForce RTX 3070 (Ampere) and has 8 GB GDDR6 graphics memory with a bandwidth of 448 GB/s. The 5888 shader units have a maximum clock rate of 1.76 GHz and achieve an FP32 computing power of 20.67 TFLOPS.

GPU

The GPU core data includes the number of execution units and texture shaders. Both have a major impact on the computing power of a graphics card.
MSI Radeon RX 6750 XT GAMING TRIO 12G GPU ASUS Dual GeForce RTX 3070
AMD Radeon RX 6750 XT Based on NVIDIA GeForce RTX 3070
Navi 22 KXT GPU Chip GA104-300-A1
RDNA 2 Architecture Ampere
40 Execution units 46
2560 Shader 5888
64 Render Output Units 96
160 Texture Units 184
40 Raytracing Cores 46

Memory

A large graphics memory is important to process large and detailed textures quickly, even in high resolutions. The speed of the memory and the resulting memory bandwidth are also important for this.

12 GB Memory Size 8 GB
GDDR6 Memory Type GDDR6
2.250 GHz Memory Clock 1.750 GHz
18 Gbps Memory Speed 14 Gbps
432 GB/s Memory Bandwith 448 GB/s
192 bit Memory Interface 256 bit

Clock Speeds

The clock frequency of a graphics card determines the speed in connection with the graphics architecture. New manufacturing processes are making ever higher clock frequencies possible, whereby attention must also be paid to the energy consumption of the graphics card, as this also depends to a large extent on the clock frequency.

2.200 GHz Base Clock 1.500 GHz
2.600 GHz Boost Clock 1.755 GHz
2.50 GHz Avg (Game) Clock 1.73 GHz
Yes Overclocking Yes

Thermal Design

The TDP defines the maximum power consumption of a graphics card. The ventilation of the computer and the performance of the power supply are based on the TDP and should be optimized for it.

250 W TDP 220 W
-- TDP (up) 250 W
-- Tjunction max 93 °C
2 x 8-Pin PCIe-Power 2 x 8-Pin

Cooler & Fans

The cooler type as well as the number and size of the fans of a graphics card result in its volume. A loud graphics card can easily be perceived as annoying. Generally, larger fans are better because they can spin slower to move the same volume of air as opposed to smaller fans.

Axial Fan-Type Axial
3 x 90 mm Fan 1 2 x 100 mm
-- Fan 2 --
Air cooling Cooler-Type Air cooling
0 dB Noise (Idle) 0 dB
-- Noise (Load) 43-45 dB

Connectivity

In the connectivity category, we recorded the number of ports on a graphics card. You can also find out here the maximum number of screens you can connect to the graphics card.

4 Max. Displays 4
2.3 HDCP-Version 2.3
1x HDMI v2.1 HDMI Ports 2x HDMI v2.1
3x DP v1.4a DP Ports 3x DP v1.4a
-- DVI Ports --
-- VGA Ports --
-- USB-C Ports --

Featureset

Here we show you which functions a graphics card has. We've also included ray tracing support for true simulation of light rays and shadows.

7680x4320 Max. resolution 7680x4320
12_2 (Ultimate) DirectX 12_2 (Ultimate)
Yes Raytracing Yes
Yes DLSS / FSR Yes
MSI Mystic Light LED ASUS Aura Sync

Supported Video Codecs

The support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. This can have a positive impact on the lower energy consumption and less waste heat from the graphics card.

Decode / Encode h264 Decode / Encode
Decode / Encode h265 / HEVC Decode / Encode
Decode AV1 Decode
Decode / Encode VP8 Decode
Decode / Encode VP9 Decode

Dimensions

With the exact dimensions of a graphics card you can check whether it fits into your computer case. We also show you the PCI Express standard that the graphics card supports at most.

327 mm Length 267 mm
137 mm Height 135 mm
56 mm Width 52 mm
3 PCIe-Slots Width (Slots) 3 PCIe-Slots
1368 g Weight --
PCIe 4.0 x 16 GPU Interface PCIe 4.0 x 16

Additional data

In addition to data such as the release date and the price when the graphics card is released, we usually show you a link to the data sheet for the graphics card directly from the manufacturer.

-- Part-no DUAL-RTX3070-8G
Q2/2022 Release date Q4/2020
549 $ (Reference) Launch Price 649 $
7 nm Structure size 8 nm
data sheet Documents data sheet

Benchmark results

FP32 Performance (Single-precision TFLOPS) - FP32 (TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS. TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second. The larger this number, the faster the graphics card is.




3DMark Benchmark (DirectX, Raytracing) - Time Spy Graphics score

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value. Here at GPU-Monkey we only use selected benchmarks for the graphics card, which are determined with a sufficiently fast processor so that the processor does not negatively affect the performance of the graphics card.




3DMark Benchmark (DirectX, Raytracing) - Time Spy Extreme Graphics score

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value. Here at GPU-Monkey we only use selected benchmarks for the graphics card, which are determined with a sufficiently fast processor so that the processor does not negatively affect the performance of the graphics card.




3DMark Benchmark (DirectX, Raytracing) - Fire Strike Extreme Graphics score

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value. Here at GPU-Monkey we only use selected benchmarks for the graphics card, which are determined with a sufficiently fast processor so that the processor does not negatively affect the performance of the graphics card.




3DMark Benchmark (DirectX, Raytracing) - Port Royal (Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value. Here at GPU-Monkey we only use selected benchmarks for the graphics card, which are determined with a sufficiently fast processor so that the processor does not negatively affect the performance of the graphics card.




3DMark Benchmark (DirectX, Raytracing) - Speed Way Graphics Score (Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value. Here at GPU-Monkey we only use selected benchmarks for the graphics card, which are determined with a sufficiently fast processor so that the processor does not negatively affect the performance of the graphics card.




Geekbench 5 (CUDA, OpenCL, Vulkan, Metal) - Geekbench 5 - CUDA (NVIDIA only)

Geekbench 5 is primarily a cross-platform benchmark for main processors, which runs through various tests in order to finally output the processor's performance in the form of a numerical value. In addition to the CPU benchmark, Geekbench can also run 4 different graphics benchmarks and output them in the form of a numerical value.
Zusätzlich zum CPU-Benchmark kann Geekbench auch 4 verschiedene Grafik-Benchmarks durchführen und in Form eines Zahlenwertes ausgeben.




Geekbench 5 (CUDA, OpenCL, Vulkan, Metal) - Geekbench 5 - OpenCL

Geekbench 5 is primarily a cross-platform benchmark for main processors, which runs through various tests in order to finally output the processor's performance in the form of a numerical value. In addition to the CPU benchmark, Geekbench can also run 4 different graphics benchmarks and output them in the form of a numerical value.
Zusätzlich zum CPU-Benchmark kann Geekbench auch 4 verschiedene Grafik-Benchmarks durchführen und in Form eines Zahlenwertes ausgeben.




Geekbench 5 (CUDA, OpenCL, Vulkan, Metal) - Geekbench 5 - Vulkan

Geekbench 5 is primarily a cross-platform benchmark for main processors, which runs through various tests in order to finally output the processor's performance in the form of a numerical value. In addition to the CPU benchmark, Geekbench can also run 4 different graphics benchmarks and output them in the form of a numerical value.
Zusätzlich zum CPU-Benchmark kann Geekbench auch 4 verschiedene Grafik-Benchmarks durchführen und in Form eines Zahlenwertes ausgeben.




Cyberpunk 2077 - 3840x2160 (2160p)

Cyberpunk 2077 is an open-world action role-playing game developed by CD Projekt Red and based on the development studio's in-house REDengine 4. In our Cyberpunkt 2077 benchmarks, ray tracing is turned off.




Cyberpunk 2077 - 2560x1440 (1440p)

Cyberpunk 2077 is an open-world action role-playing game developed by CD Projekt Red and based on the development studio's in-house REDengine 4. In our Cyberpunkt 2077 benchmarks, ray tracing is turned off.




Cyberpunk 2077 - 1920x1080 (1080p)

Cyberpunk 2077 is an open-world action role-playing game developed by CD Projekt Red and based on the development studio's in-house REDengine 4. In our Cyberpunkt 2077 benchmarks, ray tracing is turned off.




Battlefield 5 - 3840x2160 (2160p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.




Battlefield 5 - 2560x1440 (1440p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.




Battlefield 5 - 1920x1080 (1080p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.




Shadow of the Tomb Raider - 3840x2160 (2160p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).




Shadow of the Tomb Raider - 2560x1440 (1440p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).




Shadow of the Tomb Raider - 1920x1080 (1080p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).




GTA 5 Benchmark (Grand Theft Auto V) - 3840x2160 (2160p)

Grand Theft Auto V (GTA 5) is based on the RAGE Engine and was developed by Rockstar North. Rockstar had already released the open-world game for the Xbox and Playstation consoles at the end of 2013, and the PC version followed in spring 2015.




GTA 5 Benchmark (Grand Theft Auto V) - 2560x1440 (1440p)

Grand Theft Auto V (GTA 5) is based on the RAGE Engine and was developed by Rockstar North. Rockstar had already released the open-world game for the Xbox and Playstation consoles at the end of 2013, and the PC version followed in spring 2015.




GTA 5 Benchmark (Grand Theft Auto V) - 1920x1080 (1080p)

Grand Theft Auto V (GTA 5) is based on the RAGE Engine and was developed by Rockstar North. Rockstar had already released the open-world game for the Xbox and Playstation consoles at the end of 2013, and the PC version followed in spring 2015.
