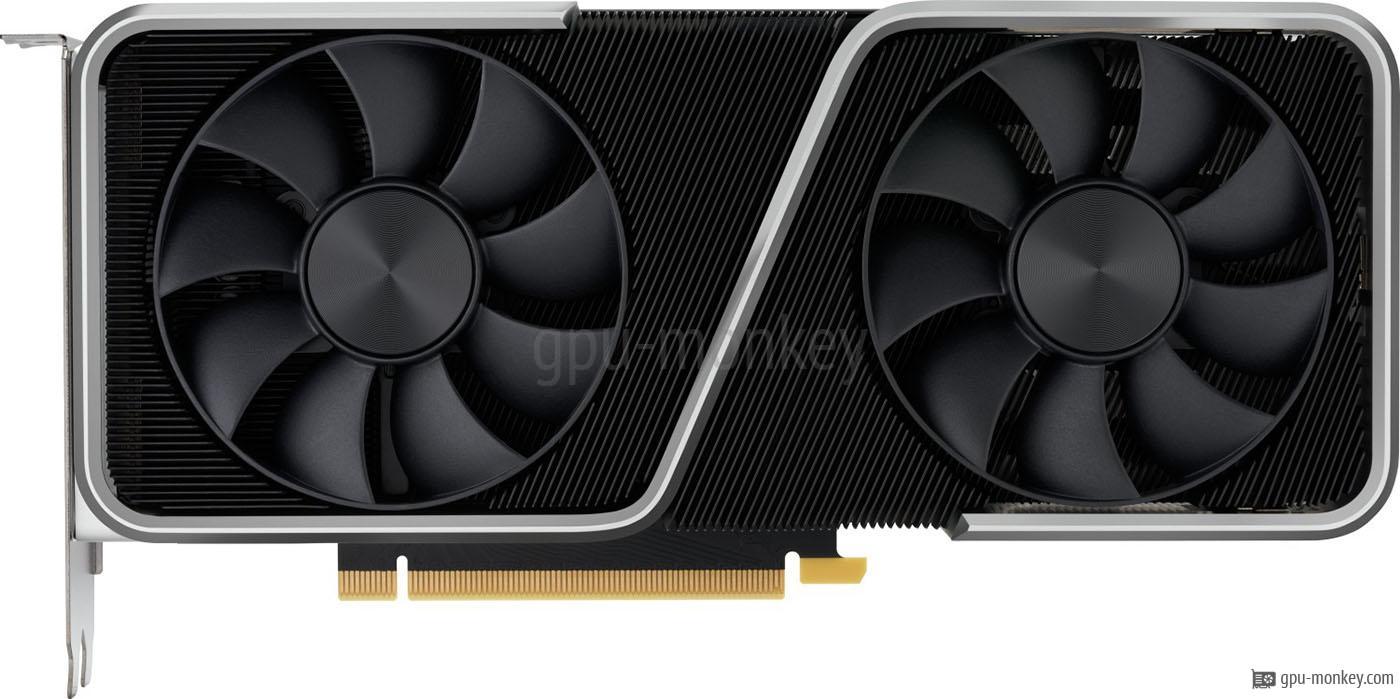

NVIDIA GeForce RTX 3060 (LHR)
vs

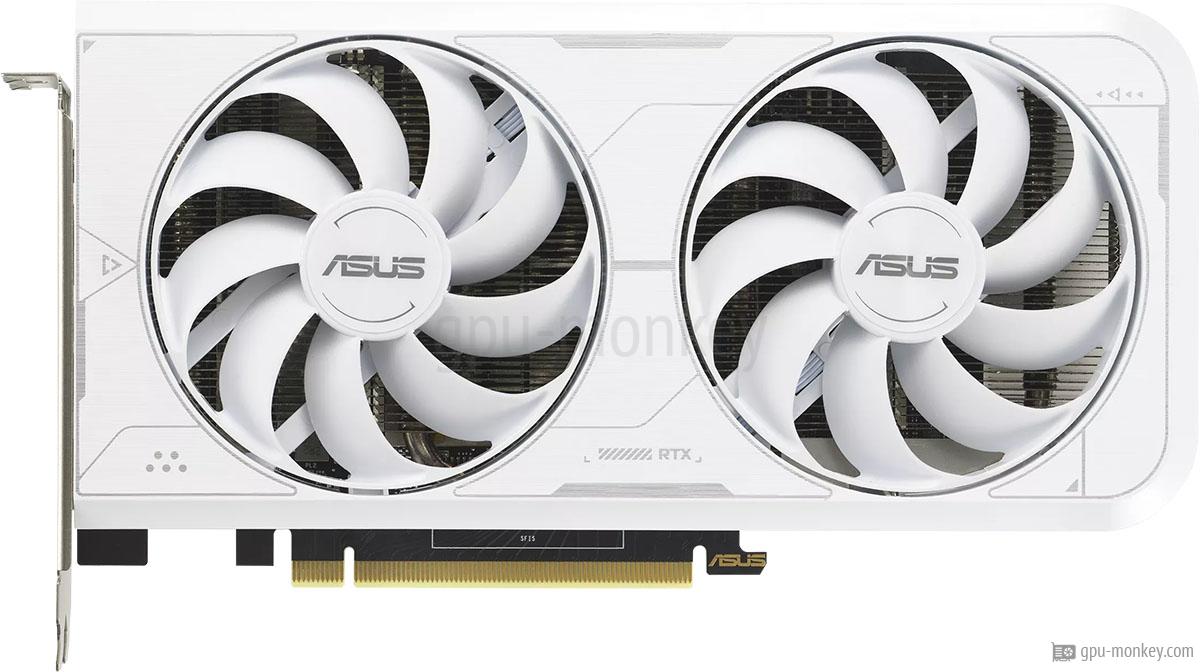

ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X)


14mp
NVIDIA GeForce RTX 3060 (LHR)
-VS-
18mp
ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X)

GPU comparison with benchmarks

The NVIDIA GeForce RTX 3060 (LHR) has 3584 shader units and these clock a maximum of 1.78 GHz which results in an FP32 computing power of 12.72 TFLOPS.

The ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X) has 4864 shader units and these clock at a maximum of 1.70 GHz and achieve an FP32 computing power of 16.49 TFLOPS.

GPU

The NVIDIA GeForce RTX 3060 (LHR) is equipped with a graphics chip of the Ampere architecture, which has 28 streaming multiprocessors.

The graphics card ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X) is based on the Ampere architecture and is equipped with 38 execution units.
NVIDIA GeForce RTX 3060 (LHR) GPU ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X)
NVIDIA GeForce RTX 3060 LHR Based on NVIDIA GeForce RTX 3060 Ti GDDR6X
GA106-302-A1 GPU Chip GA104-202-A1
Ampere Architecture Ampere
28 Streaming Multiprocessors 38
3584 Shader 4864
48 Render Output Units 80
112 Texture Units 152
28 Raytracing Cores 38

Memory

The NVIDIA GeForce RTX 3060 (LHR) is equipped with a 12 GB large GDDR6 graphics memory, which is equipped with 1.875 GHz clocks.

The ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X) has a 8 GB large GDDR6X graphics memory and the memory clock is 1.188GHz.
12 GB Memory Size 8 GB
GDDR6 Memory Type GDDR6X
1.875 GHz Memory Clock 1.188 GHz
15.0 Gbps Memory Speed 19.0 Gbps
360 GB/s Memory bandwidth 608 GB/s
192 bit Memory Interface 256 bit

Clock Speeds

The NVIDIA GeForce RTX 3060 (LHR) has a turbo clock of 1.777 GHz. The turbo frequency of the ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X) is 1.695 GHz.
1.320 GHz Base Clock 1.410 GHz
1.777 GHz Boost Clock 1.695 GHz
Avg (Game) Clock
Yes Overclocking Yes

Thermal Design

The NVIDIA GeForce RTX 3060 (LHR) has 1 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 93 °C.

The ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X) is equipped with a 2 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 93 °C.
170 W TDP 225 W
-- TDP (up) --
93 °C Tjunction max 93 °C
1 x 8-Pin PCIe-Power 2 x 8-Pin

Cooler & Fans

The graphics processor and graphics memory of the NVIDIA GeForce RTX 3060 (LHR) are cooled with a Air cooling.

The ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X) is cooled by a Air cooling.
Axial Fan-Type Axial
-- Fan 1 2 x 90 mm
-- Fan 2 --
Air cooling Cooler-Type Air cooling
0 dB Noise (Idle) 0 dB
-- Noise (Load) --

Connectivity

The NVIDIA GeForce RTX 3060 (LHR) supports the downward compatible copy protection HDCP in version 2.3.

The ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X) supports HDCP in version 2.3 and all previous versions.
4 Max. Displays 4
2.3 HDCP-Version 2.3
1x HDMI v2.1 HDMI Ports 1x HDMI v2.1
3x DP v1.4a DP Ports 3x DP v1.4a
-- DVI Ports --
-- VGA Ports --
-- USB-C Ports --

Featureset

The NVIDIA GeForce RTX 3060 (LHR) supports the DirectX standard from Microsoft in version 12_2 (Ultimate).

The ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X) supports Microsoft's DirectX version 12_2 (Ultimate).
7680x4320 Max. resolution 7680x4320
12_2 (Ultimate) DirectX 12_2 (Ultimate)
Yes Raytracing Yes
Yes DLSS / FSR Yes
No LED lighting LED No LED lighting

Supported Video Codecs

This area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load.
Decode / Encode h264 Decode / Encode
Decode / Encode h265 / HEVC Decode / Encode
Decode AV1 Decode
Decode VP8 Decode
Decode VP9 Decode

Dimensions

The NVIDIA GeForce RTX 3060 (LHR) is -- wide and therefore needs the space of 2 PCIe-Slots in the case.

The width of the ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X) is -- and thus requires the space of 2 PCIe-Slots in the PC case.
-- Length 230 mm
-- Height 120 mm
-- Width 42 mm
-- Width (Slots) 2 PCIe-Slots
-- Weight --
PCIe 4.0 x 16 GPU Interface PCIe 4.0 x 16
No SFF-Ready No

Additional data

Manufactured using the 8 nanometer process, NVIDIA GeForce RTX 3060 (LHR) was released in Q3/2021.

The ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X) published in Q4/2022 is manufactured with a structure width of 8 nanometers.
-- Part-no DUAL-RTX3060TI-8GD6X-WHITE
Q3/2021 Release date Q4/2022
329 $ (Reference) Launch Price 399 $ (Reference)
8 nm Structure size 8 nm
data sheet Documents data sheet

Rate these graphics cards now

Here you can rate the NVIDIA GeForce RTX 3060 (LHR) to help other visitors make their purchasing decisions. The average rating is 0 stars (0 ratings). Rate now:
Here you can rate the ASUS Dual GeForce RTX 3060 Ti White Edition (GDDR6X) to help other visitors make their purchasing decisions. The average rating is 0 stars (0 ratings). Rate now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

View all 3DMark Benchmark (DirectX, Raytracing) benchmark results

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

View all Cyberpunk 2077 benchmark results

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

View all The Last of Us Part 1 benchmark results

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

2560x1440 (1440p)

1920x1080 (1080p)

View all Battlefield 5 benchmark results

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

View all Geekbench 6 (OpenCL, Vulkan, Metal) benchmark results

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

View all FP32 Performance (Single-precision TFLOPS) benchmark results
