Palit GeForce GTX 1660 Dual OC
vs
ASUS ROG Strix GeForce RTX 2060 EVO OC Edition

GPU comparison with benchmarks

Description

In the gpu comparison between the Palit GeForce GTX 1660 Dual OC and the ASUS ROG Strix GeForce RTX 2060 EVO OC Edition, we compare both the technical data and the benchmark results of the two graphics cards.

The Palit GeForce GTX 1660 Dual OC is based on the NVIDIA GeForce GTX 1660 (Turing) and has 6 GB GDDR5 graphics memory with a bandwidth of 192 GB/s. The 1408 shader units clock with a maximum of 1.83 GHz which results in an FP32 processing power of 5.15 TFLOPS.

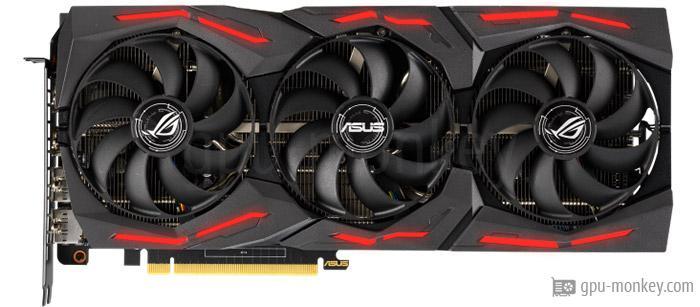

The ASUS ROG Strix GeForce RTX 2060 EVO OC Edition is based on the NVIDIA GeForce RTX 2060 (Turing) and has 6 GB GDDR6 graphics memory with a bandwidth of 336 GB/s. The 1920 shader units have a maximum clock rate of 1.86 GHz and achieve an FP32 computing power of 7.14 TFLOPS.

GPU

The GPU core data includes the number of execution units and texture shaders. Both have a major impact on the computing power of a graphics card.
Palit GeForce GTX 1660 Dual OC GPU ASUS ROG Strix GeForce RTX 2060 EVO OC Edition
NVIDIA GeForce GTX 1660 Based on NVIDIA GeForce RTX 2060
TU116-300-A1 GPU Chip TU106
Turing Architecture Turing
22 Execution units 30
1408 Shader 1920
48 Render Output Units 48
88 Texture Units 120
0 Raytracing Cores 30

Memory

A large graphics memory is important to process large and detailed textures quickly, even in high resolutions. The speed of the memory and the resulting memory bandwidth are also important for this.

6 GB Memory Size 6 GB
GDDR5 Memory Type GDDR6
2.000 GHz Memory Clock 1.750 GHz
8 Gbps Memory Speed 14 Gbps
192 GB/s Memory Bandwith 336 GB/s
192 bit Memory Interface 192 bit

Clock Speeds

The clock frequency of a graphics card determines the speed in connection with the graphics architecture. New manufacturing processes are making ever higher clock frequencies possible, whereby attention must also be paid to the energy consumption of the graphics card, as this also depends to a large extent on the clock frequency.

1.530 GHz Base Clock 1.365 GHz
1.830 GHz Boost Clock 1.860 GHz
Avg (Game) Clock 1.83 GHz
Yes Overclocking Yes

Thermal Design

The TDP defines the maximum power consumption of a graphics card. The ventilation of the computer and the performance of the power supply are based on the TDP and should be optimized for it.

120 W TDP 160 W
-- TDP (up) --
-- Tjunction max 88 °C
1 x 8-Pin PCIe-Power 1 x 6-Pin, 1 x 8-Pin

Cooler & Fans

The cooler type as well as the number and size of the fans of a graphics card result in its volume. A loud graphics card can easily be perceived as annoying. Generally, larger fans are better because they can spin slower to move the same volume of air as opposed to smaller fans.

Axial Fan-Type Axial
2 x 90 mm Fan 1 3 x 90 mm
-- Fan 2 --
Air cooling Cooler-Type Air cooling
dB Noise (Idle) 0 dB
-- Noise (Load) --

Connectivity

In the connectivity category, we recorded the number of ports on a graphics card. You can also find out here the maximum number of screens you can connect to the graphics card.

3 Max. Displays 4
2.2 HDCP-Version 2.2
1x HDMI v2.0b HDMI Ports 2x HDMI v2.0b
1x DP v1.4 DP Ports 2x DP v1.4a
1 DVI Ports --
-- VGA Ports --
-- USB-C Ports --

Featureset

Here we show you which functions a graphics card has. We've also included ray tracing support for true simulation of light rays and shadows.

7680x4320 Max. resolution 7680x4320
12_1 DirectX 12_2 (Ultimate)
No Raytracing Yes
Yes DLSS / FSR Yes
No LED lighting LED ASUS Aura Sync

Supported Video Codecs

The support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. This can have a positive impact on the lower energy consumption and less waste heat from the graphics card.

Decode / Encode h264 Decode / Encode
Decode / Encode h265 / HEVC Decode / Encode
No AV1 No
Decode VP8 Decode
Decode VP9 Decode

Dimensions

With the exact dimensions of a graphics card you can check whether it fits into your computer case. We also show you the PCI Express standard that the graphics card supports at most.

235 mm Length 300 mm
115 mm Height 132 mm
40 mm Width 50 mm
2 PCIe-Slots Width (Slots) 3 PCIe-Slots
-- Weight --
PCIe 3.0 x 16 GPU Interface PCIe 3.0 x 16

Additional data

In addition to data such as the release date and the price when the graphics card is released, we usually show you a link to the data sheet for the graphics card directly from the manufacturer.

NE51660S18J9-1161C / -1161A Part-no ROG-STRIX-RTX2060-O6G-EVO-GAMING
Q1/2019 Release date Q1/2020
219 $ (Reference) Launch Price 349 $ (Reference)
12 nm Structure size 12 nm
data sheet Documents data sheet

Benchmark results

FP32 Performance (Single-precision TFLOPS) - FP32 (TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS. TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second. The larger this number, the faster the graphics card is.




3DMark Benchmark (DirectX, Raytracing) - Time Spy Graphics score

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value. Here at GPU-Monkey we only use selected benchmarks for the graphics card, which are determined with a sufficiently fast processor so that the processor does not negatively affect the performance of the graphics card.




3DMark Benchmark (DirectX, Raytracing) - Time Spy Extreme Graphics score

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value. Here at GPU-Monkey we only use selected benchmarks for the graphics card, which are determined with a sufficiently fast processor so that the processor does not negatively affect the performance of the graphics card.




3DMark Benchmark (DirectX, Raytracing) - Fire Strike Extreme Graphics score

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value. Here at GPU-Monkey we only use selected benchmarks for the graphics card, which are determined with a sufficiently fast processor so that the processor does not negatively affect the performance of the graphics card.




3DMark Benchmark (DirectX, Raytracing) - Port Royal (Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value. Here at GPU-Monkey we only use selected benchmarks for the graphics card, which are determined with a sufficiently fast processor so that the processor does not negatively affect the performance of the graphics card.




3DMark Benchmark (DirectX, Raytracing) - Speed Way Graphics Score (Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value. Here at GPU-Monkey we only use selected benchmarks for the graphics card, which are determined with a sufficiently fast processor so that the processor does not negatively affect the performance of the graphics card.




Geekbench 5 (CUDA, OpenCL, Vulkan, Metal) - Geekbench 5 - CUDA (NVIDIA only)

Geekbench 5 is primarily a cross-platform benchmark for main processors, which runs through various tests in order to finally output the processor's performance in the form of a numerical value. In addition to the CPU benchmark, Geekbench can also run 4 different graphics benchmarks and output them in the form of a numerical value.
Zusätzlich zum CPU-Benchmark kann Geekbench auch 4 verschiedene Grafik-Benchmarks durchführen und in Form eines Zahlenwertes ausgeben.




Geekbench 5 (CUDA, OpenCL, Vulkan, Metal) - Geekbench 5 - OpenCL

Geekbench 5 is primarily a cross-platform benchmark for main processors, which runs through various tests in order to finally output the processor's performance in the form of a numerical value. In addition to the CPU benchmark, Geekbench can also run 4 different graphics benchmarks and output them in the form of a numerical value.
Zusätzlich zum CPU-Benchmark kann Geekbench auch 4 verschiedene Grafik-Benchmarks durchführen und in Form eines Zahlenwertes ausgeben.




Geekbench 5 (CUDA, OpenCL, Vulkan, Metal) - Geekbench 5 - Vulkan

Geekbench 5 is primarily a cross-platform benchmark for main processors, which runs through various tests in order to finally output the processor's performance in the form of a numerical value. In addition to the CPU benchmark, Geekbench can also run 4 different graphics benchmarks and output them in the form of a numerical value.
Zusätzlich zum CPU-Benchmark kann Geekbench auch 4 verschiedene Grafik-Benchmarks durchführen und in Form eines Zahlenwertes ausgeben.




Cyberpunk 2077 - 3840x2160 (2160p)

Cyberpunk 2077 is an open-world action role-playing game developed by CD Projekt Red and based on the development studio's in-house REDengine 4. In our Cyberpunkt 2077 benchmarks, ray tracing is turned off.




Cyberpunk 2077 - 2560x1440 (1440p)

Cyberpunk 2077 is an open-world action role-playing game developed by CD Projekt Red and based on the development studio's in-house REDengine 4. In our Cyberpunkt 2077 benchmarks, ray tracing is turned off.




Cyberpunk 2077 - 1920x1080 (1080p)

Cyberpunk 2077 is an open-world action role-playing game developed by CD Projekt Red and based on the development studio's in-house REDengine 4. In our Cyberpunkt 2077 benchmarks, ray tracing is turned off.




Battlefield 5 - 3840x2160 (2160p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.




Battlefield 5 - 2560x1440 (1440p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.




Battlefield 5 - 1920x1080 (1080p)

Battlefield 5 is a visually impressive game. It uses the third version of the "Frostbite Game Engine" developed by the manufacturer DICE. The engine is available for Windows, PS4, PS5, XBox One or XBox Series X. Many physics-based calculations are carried out directly in the game engine, which results in very realistic calculations. Due to its current features, Battlefield 5 is very suitable as a graphics card benchmark.

Test environment and settings: DirectX 12 API with max. Details, tested under Windows 10.




Shadow of the Tomb Raider - 3840x2160 (2160p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).




Shadow of the Tomb Raider - 2560x1440 (1440p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).




Shadow of the Tomb Raider - 1920x1080 (1080p)

Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).




GTA 5 Benchmark (Grand Theft Auto V) - 3840x2160 (2160p)

Grand Theft Auto V (GTA 5) is based on the RAGE Engine and was developed by Rockstar North. Rockstar had already released the open-world game for the Xbox and Playstation consoles at the end of 2013, and the PC version followed in spring 2015.
