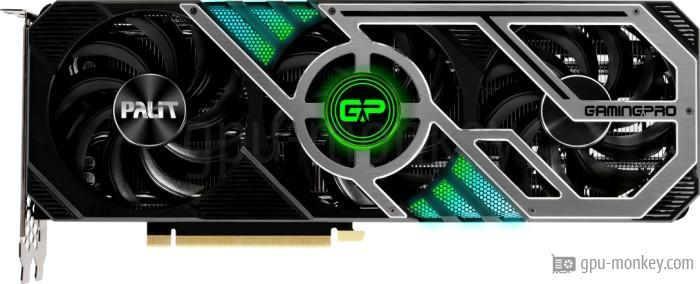

Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR
vs
Palit GeForce RTX 3060 Dual OC
GPU comparison with benchmarksThe Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR has 4864 shader units and these clock a maximum of 1.80 GHz which results in an FP32 computing power of 17.51 TFLOPS.
The Palit GeForce RTX 3060 Dual OC has 3584 shader units and these clock at a maximum of 1.84 GHz and achieve an FP32 computing power of 13.15 TFLOPS. |
||
GPUThe Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR is equipped with a graphics chip of the Ampere architecture, which has 38 streaming multiprocessors. The graphics card Palit GeForce RTX 3060 Dual OC is based on the Ampere architecture and is equipped with 28 execution units. |
||
| Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR | GPU | Palit GeForce RTX 3060 Dual OC |
| NVIDIA GeForce RTX 3060 Ti LHR | Based on | NVIDIA GeForce RTX 3060 |
| GA104-202-A1 | GPU Chip | GA106-300-A1 |
| Ampere | Architecture | Ampere |
| 38 | Streaming Multiprocessors | 28 |
| 4864 | Shader | 3584 |
| 80 | Render Output Units | 48 |
| 152 | Texture Units | 112 |
| 38 | Raytracing Cores | 28 |
MemoryThe Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR is equipped with a 8 GB large GDDR6 graphics memory, which is equipped with 1.750 GHz clocks. The Palit GeForce RTX 3060 Dual OC has a 12 GB large GDDR6 graphics memory and the memory clock is 1.875GHz. |
||
| 8 GB | Memory Size | 12 GB |
| GDDR6 | Memory Type | GDDR6 |
| 1.750 GHz | Memory Clock | 1.875 GHz |
| 14.0 Gbps | Memory Speed | 15.0 Gbps |
| 448 GB/s | Memory bandwidth | 360 GB/s |
| 256 bit | Memory Interface | 192 bit |
Clock SpeedsThe Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR has a turbo clock of 1.800 GHz. The turbo frequency of the Palit GeForce RTX 3060 Dual OC is 1.837 GHz. |
||
| 1.410 GHz | Base Clock | 1.320 GHz |
| 1.800 GHz | Boost Clock | 1.837 GHz |
| 1.67 GHz | Avg (Game) Clock | 1.78 GHz |
| Yes | Overclocking | Yes |
Thermal DesignThe Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR has 2 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 93 °C. The Palit GeForce RTX 3060 Dual OC is equipped with a 1 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 93 °C. |
||
| 240 W | TDP | 180 W |
| -- | TDP (up) | 180 W |
| 93 °C | Tjunction max | 93 °C |
| 2 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe graphics processor and graphics memory of the Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR are cooled with a Air cooling. The Palit GeForce RTX 3060 Dual OC is cooled by a Air cooling. |
||
| Axial | Fan-Type | Axial |
| 3 x 90 mm | Fan 1 | 2 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 39-40 dB | Noise (Load) | 36 dB |
ConnectivityThe Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR supports the downward compatible copy protection HDCP in version 2.3. The Palit GeForce RTX 3060 Dual OC supports HDCP in version 2.3 and all previous versions. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR supports the DirectX standard from Microsoft in version 12_2 (Ultimate). The Palit GeForce RTX 3060 Dual OC supports Microsoft's DirectX version 12_2 (Ultimate). |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| Addressable LED | LED | Addressable LED |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR is 60 mm wide and therefore needs the space of 2 PCIe-Slots in the case. The width of the Palit GeForce RTX 3060 Dual OC is 60 mm and thus requires the space of 2 PCIe-Slots in the PC case. |
||
| 294 mm | Length | 245 mm |
| 112 mm | Height | 119 mm |
| 60 mm | Width | 40 mm |
| 3 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataManufactured using the 8 nanometer process, Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR was released in Q4/2020. The Palit GeForce RTX 3060 Dual OC published in Q1/2021 is manufactured with a structure width of 8 nanometers. |
||
| NE6306TT19P2-1041A | Part-no | NE63060T19K9-190AD |
| Q4/2020 | Release date | Q1/2021 |
| 489 $ | Launch Price | 459 $ |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.410 GHz, 8 GB (240 W TDP)
Buy this graphic card at amazon!
1.320 GHz, 12 GB (180 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR
8 GB GDDR6 |
||
|
|
Palit GeForce RTX 3060 Dual OC
12 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR
8 GB GDDR6 |
||
|
|
Palit GeForce RTX 3060 Dual OC
12 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR
8 GB GDDR6 |
||
|
|
Palit GeForce RTX 3060 Dual OC
12 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR
8 GB GDDR6 |
||
|
|
Palit GeForce RTX 3060 Dual OC
12 GB GDDR6 |
||
2560x1440 (1440p)
|
|
Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR
8 GB GDDR6 |
||
|
|
Palit GeForce RTX 3060 Dual OC
12 GB GDDR6 |
||
1920x1080 (1080p)
|
|
Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR
8 GB GDDR6 |
||
|
|
Palit GeForce RTX 3060 Dual OC
12 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.2560x1440 (1440p)
1920x1080 (1080p)
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR
8 GB GDDR6 |
||
|
|
Palit GeForce RTX 3060 Dual OC
12 GB GDDR6 |
||
2560x1440 (1440p)
|
|
Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR
8 GB GDDR6 |
||
|
|
Palit GeForce RTX 3060 Dual OC
12 GB GDDR6 |
||
1920x1080 (1080p)
|
|
Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR
8 GB GDDR6 |
||
|
|
Palit GeForce RTX 3060 Dual OC
12 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
Palit GeForce RTX 3060 Ti GamingPro OC V1 LHR
8 GB GDDR6 |
||
|
|
Palit GeForce RTX 3060 Dual OC
12 GB GDDR6 |
||
