PNY GeForce GT 1030
vs

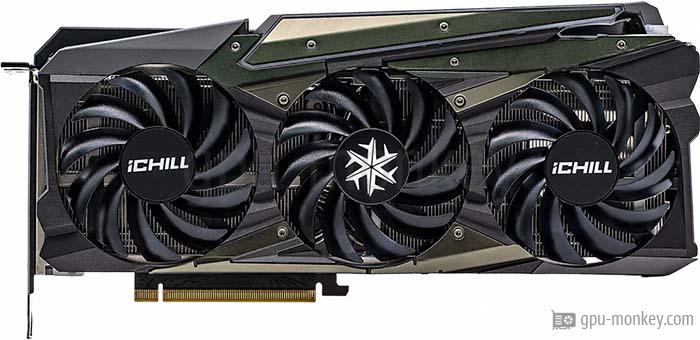

INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
GPU comparison with benchmarksIn the gpu comparison between the PNY GeForce GT 1030 and the INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe PNY GeForce GT 1030 is based on the NVIDIA GeForce GT 1030 and has 384 texture shaders and 3 execution units. INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR is based on NVIDIA GeForce RTX 3080 12GB, which has 8960 shaders and 70 execution units. |
||
| PNY GeForce GT 1030 | GPU | INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR |
| NVIDIA GeForce GT 1030 | Based on | NVIDIA GeForce RTX 3080 12GB |
| GP108-300-A1 | GPU Chip | GA102 |
| Pascal | Architecture | Ampere |
| 3 | Streaming Multiprocessors | 70 |
| 384 | Shader | 8960 |
| 16 | Render Output Units | 112 |
| 24 | Texture Units | 280 |
| 0 | Raytracing Cores | 70 |
MemoryThe PNY GeForce GT 1030 has 2 GB of graphics memory of the type GDDR5 and achieves a memory bandwidth of 48 GB/s. The INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR can access 12 GB GDDR6X graphics memory and thus achieves a memory bandwidth of 912 GB/s. |
||
| 2 GB | Memory Size | 12 GB |
| GDDR5 | Memory Type | GDDR6X |
| 1.502 GHz | Memory Clock | 1.188 GHz |
| 6.0 Gbps | Memory Speed | 19.0 Gbps |
| 48 GB/s | Memory bandwidth | 912 GB/s |
| 64 bit | Memory Interface | 384 bit |
Clock SpeedsThe PNY GeForce GT 1030 clocks in the base with up to 1.227 GHz. The base frequency of the INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR is 1.260 GHz. |
||
| 1.227 GHz | Base Clock | 1.260 GHz |
| 1.468 GHz | Boost Clock | 1.755 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the PNY GeForce GT 1030 is 30 W. The graphics card is supplied with energy via the connector. The INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR has a TDP of 350 W and is supplied with the required energy via 2 x 8-Pin PCIe power connectors. |
||
| 30 W | TDP | 350 W |
| -- | TDP (up) | -- |
| 97 °C | Tjunction max | 93 °C |
| PCIe-Power | 2 x 8-Pin | |
Cooler & FansThe PNY GeForce GT 1030 has a total of 1 Axial fans. The INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR has 3 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 1 x 50 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 2 screens can be connected to the PNY GeForce GT 1030. The INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR supports a maximum of 4 screens. |
||
| 2 | Max. Displays | 4 |
| 2.2 | HDCP-Version | 2.3 |
| 1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.1 |
| -- | DP Ports | 3x DP v1.4a |
| 1 | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe PNY GeForce GT 1030 supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_1 | DirectX | 12_2 (Ultimate) |
| No | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | Addressable LED |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode | h264 | Decode / Encode |
| Decode | h265 / HEVC | Decode / Encode |
| No | AV1 | Decode |
| No | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe PNY GeForce GT 1030 is 168 mm long, 69 mm high and 20 mm wide. The INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR is 300 mm long, 135 mm high and -- wide. |
||
| 168 mm | Length | 300 mm |
| 69 mm | Height | 135 mm |
| 20 mm | Width | -- |
| 1 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | -- |
| PCIe 3.0 x 4 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe PNY GeForce GT 1030 was released in Q2/2017 at a price of 79 $ (Reference). The INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR was introduced in Q1/2022 at a price of 699 $ (Reference). |
||
| VCGGT10302PB | Part-no | C30804-126XX-1810VA36H |
| Q2/2017 | Release date | Q1/2022 |
| 79 $ (Reference) | Launch Price | 699 $ (Reference) |
| 14 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.227 GHz, 2 GB (30 W TDP)
Buy this graphic card at amazon!
1.260 GHz, 12 GB (350 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
PNY GeForce GT 1030
2 GB GDDR5 |
||
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
PNY GeForce GT 1030
2 GB GDDR5 |
||
|
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
PNY GeForce GT 1030
2 GB GDDR5 |
||
|
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
PNY GeForce GT 1030
2 GB GDDR5 |
||
|
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
PNY GeForce GT 1030
2 GB GDDR5 |
||
|
|
INNO3D GeForce RTX 3080 12GB iCHILL X4 LHR
12 GB GDDR6X |
||
