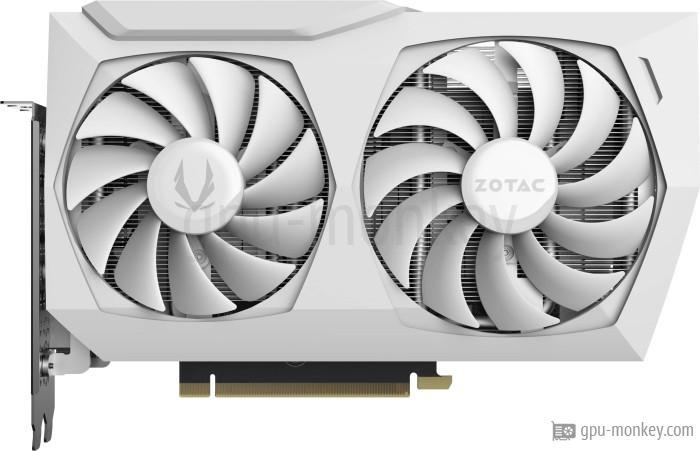

ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
vs

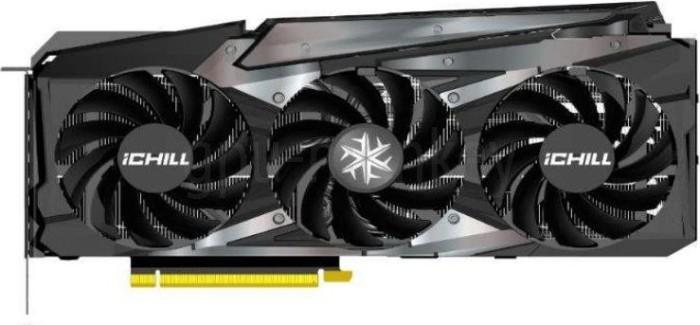

INNO3D GeForce RTX 3090 iCHILL X4
GPU comparison with benchmarksThe ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR is based on the NVIDIA GeForce RTX 3070 LHR (Ampere) and has 8 GB GDDR6 graphics memory with a bandwidth of 448 GB/s.
The INNO3D GeForce RTX 3090 iCHILL X4 is based on the NVIDIA GeForce RTX 3090 (Ampere) and has 24 GB GDDR6X graphics memory with a bandwidth of 936 GB/s. |
||
GPUThe ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR has the GA104-302-A1 graphics chip installed, which is based on the Ampere architecture. The INNO3D GeForce RTX 3090 iCHILL X4 is based on the graphics chip GA102-300-A1, which comes from the Ampere architecture. |
||
| ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR | GPU | INNO3D GeForce RTX 3090 iCHILL X4 |
| NVIDIA GeForce RTX 3070 LHR | Based on | NVIDIA GeForce RTX 3090 |
| GA104-302-A1 | GPU Chip | GA102-300-A1 |
| Ampere | Architecture | Ampere |
| 46 | Streaming Multiprocessors | 82 |
| 5888 | Shader | 10496 |
| 96 | Render Output Units | 112 |
| 184 | Texture Units | 328 |
| 46 | Raytracing Cores | 82 |
MemoryThe graphics memory of the ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR clocks at 1.750 GHz, which corresponds to a speed of 14.0 Gbps. The graphics memory speed of the INNO3D GeForce RTX 3090 iCHILL X4 is 19.5 Gbps and the clock speed is 1.219 GHz. |
||
| 8 GB | Memory Size | 24 GB |
| GDDR6 | Memory Type | GDDR6X |
| 1.750 GHz | Memory Clock | 1.219 GHz |
| 14.0 Gbps | Memory Speed | 19.5 Gbps |
| 448 GB/s | Memory bandwidth | 936 GB/s |
| 256 bit | Memory Interface | 384 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 1.500 GHz | Base Clock | 1.395 GHz |
| 1.755 GHz | Boost Clock | 1.755 GHz |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 220 W. The INNO3D GeForce RTX 3090 iCHILL X4 has 2 x 8-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 370 W. |
||
| 220 W | TDP | 370 W |
| 240 W | TDP (up) | -- |
| 93 °C | Tjunction max | 93 °C |
| 2 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR is equipped with a total of 2 Axial main fans. The INNO3D GeForce RTX 3090 iCHILL X4 has 3 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 2 x 90 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 44 dB | Noise (Load) | 44.5 dB |
ConnectivityUp to 4 screens can be operated with the ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR. The INNO3D GeForce RTX 3090 iCHILL X4 supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the INNO3D GeForce RTX 3090 iCHILL X4 is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| ZOTAC SPECTRA | LED | ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR is connected to the system via PCIe 4.0 x 16 lanes and requires 2 PCIe-Slots space in the housing. The INNO3D GeForce RTX 3090 iCHILL X4 needs the space of 3 PCIe-Slots in the case and has a PCIe 4.0 x 16 Lanes interface. |
||
| 232 mm | Length | 300 mm |
| 141 mm | Height | 135 mm |
| 42 mm | Width | -- |
| 2 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR has been manufactured with a structure width of 8 nanometers since Q2/2021. The INNO3D GeForce RTX 3090 iCHILL X4 came on the market in Q4/2020 and will have a structure width of 8 nanometers manufactured. |
||
| ZT-A30700J-10PLHR | Part-no | C30904-246XX-1880VA36 |
| Q2/2021 | Release date | Q4/2020 |
| 539 $ | Launch Price | 1,629 $ |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.500 GHz, 8 GB (220 W TDP)
Buy this graphic card at amazon!
1.395 GHz, 24 GB (370 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.3840x2160 (2160p)
|
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
ZOTAC Gaming GeForce RTX 3070 Twin Edge OC White Edition LHR
8 GB GDDR6 |
||
|
|
INNO3D GeForce RTX 3090 iCHILL X4
24 GB GDDR6X |
||
