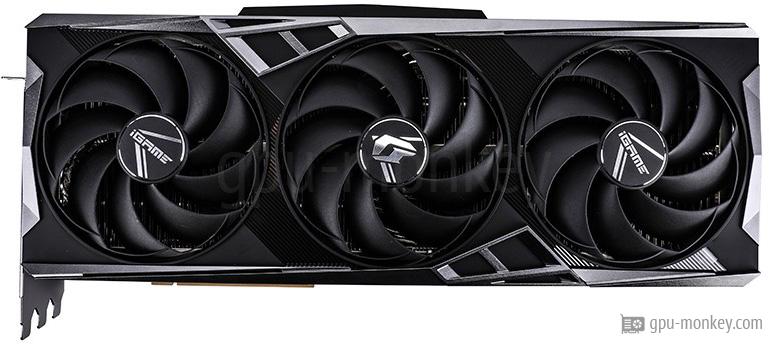

Colorful iGame GeForce RTX 4090 Vulcan OC-V
Benchmark and Specs


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the Colorful iGame GeForce RTX 4090 Vulcan OC-V. The graphics card is based on the NVIDIA GeForce RTX 4090 (Ada Lovelace) and has 24 GB GDDR6X graphics memory with a memory bandwidth of 1008 GB/s. The Colorful iGame GeForce RTX 4090 Vulcan OC-V has 128 execution units with 16384 shaders.

GPU

The Colorful iGame GeForce RTX 4090 Vulcan OC-V has 16384 shaders and 128 execution units. The graphics card thus achieves a theoretical FP32 computing power of 86.02 TFLOPS.

Based on: NVIDIA GeForce RTX 4090
GPU Chip: AD102-300-A1 (Ada Lovelace)
Streaming Multiprocessors: 128
Shader: 16384
Render Output Units: 176
Texture Units: 512
Raytracing Cores: 128

Memory

The Colorful iGame GeForce RTX 4090 Vulcan OC-V can use 24 GB graphics memory of the type GDDR6X. The graphics card thus achieves a memory bandwidth of 1008 GB/s on a 384 bit wide memory interface.

Memory Size: 24 GB
Memory Type: GDDR6X
Memory Clock: 1.313 GHz
Memory Speed: 21.0 Gbps
Memory bandwidth: 1008 GB/s
Memory Interface: 384 bit

Clock Speeds

The base clock frequency of the Colorful iGame GeForce RTX 4090 Vulcan OC-V is 2.235 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 2.235 GHz
Boost Clock: 2.625 GHzDeviation vs GPU group+ 4 %
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the Colorful iGame GeForce RTX 4090 Vulcan OC-V is 550 W. The graphics card is supplied with energy via the 1 x 16-Pin connector.

TDP: 550 WDeviation vs GPU group+ 22 %
TDP (up): --
Tjunction max: 90 °C
PCIe-Power: 1 x 16-Pin

Cooler & Fans

The Colorful iGame GeForce RTX 4090 Vulcan OC-V has a total of 3 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 3 x 98 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the Colorful iGame GeForce RTX 4090 Vulcan OC-V.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1a
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The Colorful iGame GeForce RTX 4090 Vulcan OC-V has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: Addressable LED

Supported Video Codecs

The video codecs accelerated in hardware by the Colorful iGame GeForce RTX 4090 Vulcan OC-V reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The Colorful iGame GeForce RTX 4090 Vulcan OC-V is 349 mm long and 160 mm high. With a width of 70 mm, the graphics card requires 4 PCIe-Slots in the case.

Length: 349 mm
Height: 160 mm
Width: 70 mm
Width (Slots): 4 PCIe-Slots
Weight: 2500 g

Additional data

The Colorful iGame GeForce RTX 4090 Vulcan OC-V made in 5 nm was published in Q4/2022 for 1,599 $ (Reference).

GPU Interface: PCIe 4.0 x 16
Release date: Q4/2022
Launch Price: 1,599 $ (Reference)
Structure size: 5 nm
Part-no: --
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

Colorful iGame GeForce RTX 4090 Vulcan OC-V Colorful iGame GeForce RTX 4090 Vulcan OC-V
24 GB GDDR6X
97 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
94 fps (avg)

2560x1440 (1440p)

Colorful iGame GeForce RTX 4090 Vulcan OC-V Colorful iGame GeForce RTX 4090 Vulcan OC-V
24 GB GDDR6X
193 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
185 fps (avg)

1920x1080 (1080p)

Colorful iGame GeForce RTX 4090 Vulcan OC-V Colorful iGame GeForce RTX 4090 Vulcan OC-V
24 GB GDDR6X
203 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
195 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

Colorful iGame GeForce RTX 4090 Vulcan OC-V Colorful iGame GeForce RTX 4090 Vulcan OC-V
24 GB GDDR6X
83 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
80 fps (avg)

2560x1440 (1440p)

Colorful iGame GeForce RTX 4090 Vulcan OC-V Colorful iGame GeForce RTX 4090 Vulcan OC-V
24 GB GDDR6X
148 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
142 fps (avg)

1920x1080 (1080p)

Colorful iGame GeForce RTX 4090 Vulcan OC-V Colorful iGame GeForce RTX 4090 Vulcan OC-V
24 GB GDDR6X
192 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
184 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

Colorful iGame GeForce RTX 4090 Vulcan OC-V Colorful iGame GeForce RTX 4090 Vulcan OC-V
24 GB GDDR6X
193 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
186 fps (avg)

2560x1440 (1440p)

Colorful iGame GeForce RTX 4090 Vulcan OC-V Colorful iGame GeForce RTX 4090 Vulcan OC-V
24 GB GDDR6X
208 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
203 fps (avg)

1920x1080 (1080p)

Colorful iGame GeForce RTX 4090 Vulcan OC-V Colorful iGame GeForce RTX 4090 Vulcan OC-V
24 GB GDDR6X
208 fps (avg)
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
213 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Colorful iGame GeForce RTX 4090 Vulcan OC-V Colorful iGame GeForce RTX 4090 Vulcan OC-V
24 GB GDDR6X
335850
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
349582

Geekbench 6 - Vulkan

Colorful iGame GeForce RTX 4090 Vulcan OC-V Colorful iGame GeForce RTX 4090 Vulcan OC-V
24 GB GDDR6X
268202
NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090
Average of gpu group
197830

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
