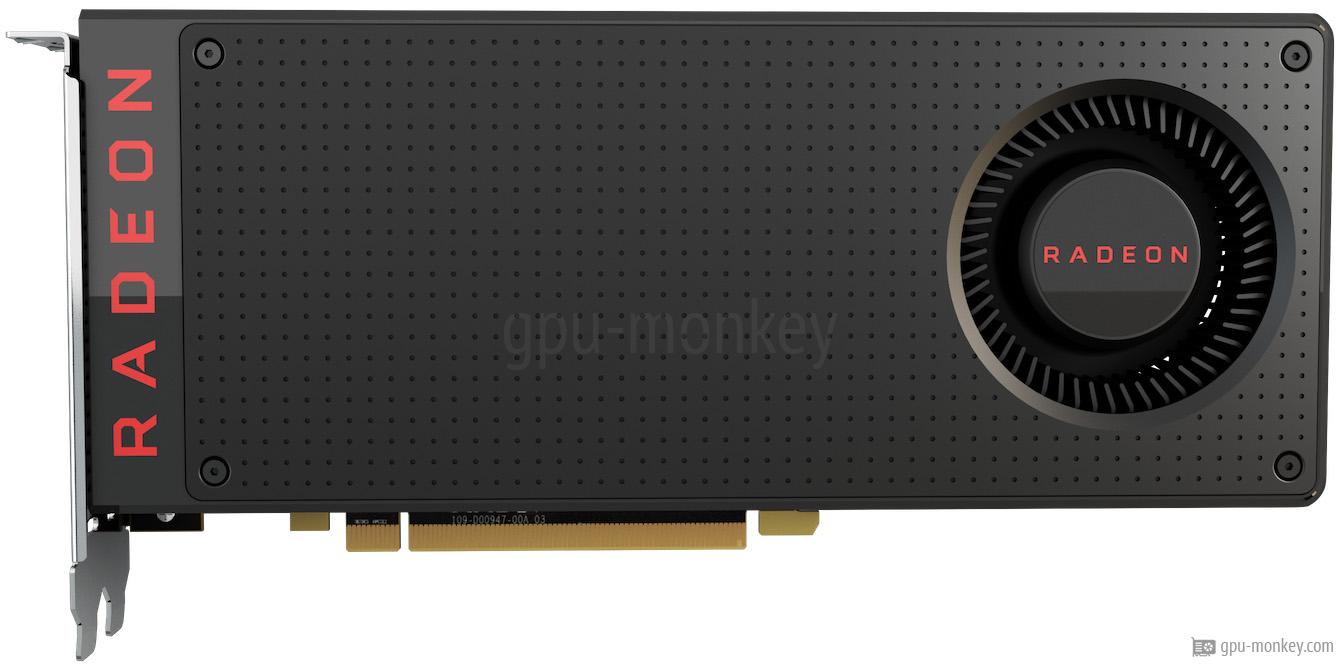

AMD Radeon RX 480
GPU |
| GPU Chip: |
Polaris 10 XT |
| Streaming Multiprocessors: |
36 |
| Shader: |
2304 |
| Render Output Units: |
32 |
| Texture Units: |
144 |
| Raytracing Cores: |
0 |
| FP32: |
5.83 TFLOPS |
Memory |
| Memory Size: |
8 GB |
| Memory Type: |
GDDR5 |
| Memory Clock: |
2 GHz |
| Memory Speed: |
8 Gbps |
| Memory bandwidth: |
256 GB/s |
| Memory Interface: |
256 bit |
Clock Speeds |
| Base Clock: |
1.120 GHz |
| Boost Clock: |
1.266 GHz |
| Avg (Game) Clock: |
-- |
Thermal Design |
| TDP: |
150 W |
| TDP (up): |
-- |
Featureset |
| Max. Displays: |
4 |
| Max. resolution: |
7680x4320 |
| DirectX: |
12_0 |
| Raytracing: |
No |
| DLSS / FSR: |
Yes |
Supported Video Codecs |
| h264: |
Decode / Encode |
| h265 / HEVC: |
Decode / Encode |
| VP8: |
No |
| VP9: |
No |
| AV1: |
No |
Additional data |
| Manufacturer: |
AMD |
| Architecture: |
Ellesmere |
| GPU Interface: |
PCIe 3.0 x 16 |
| Structure size: |
14 nm |
| Release date: |
Q2/2016 |
| Launch Price: |
199 $ |
Benchmark results
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
TOP 5 GPUs in group by FP32 performance
TOP 5 GPUs in group by maximum TDP
