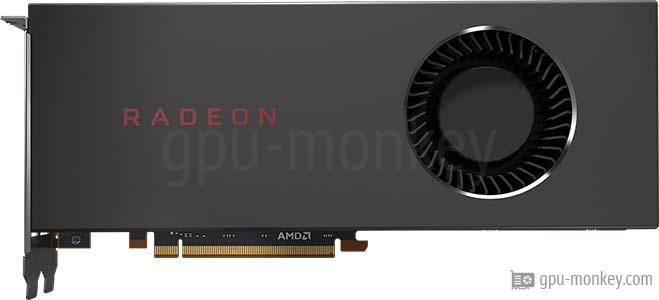

AMD Radeon RX 5700

AMD Radeon RX 5700

GPU

GPU Chip: Navi 10
Execution units: 36
Shader: 2304
Render Output Units: 64
Texture Units: 144
Raytracing Cores: 0

Memory

Memory Size: 8 GB
Memory Type: GDDR6
Memory Clock: 1.75 GHz
Memory Speed: 14 Gbps
Memory Bandwith: 256 GB/s
Memory Interface: 448 bit

Clock Speeds

Base Clock: 1.465 GHz
Boost Clock: 1.725 GHz
Avg (Game) Clock: 1.625 GHz

Thermal Design

TDP: 180 W
TDP (up): 220 W

Featureset

Max. Displays: 4
Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: No

Supported Video Codecs

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode / Encode
AV1: No

Additional data

Manufacturer: AMD
Architecture: RDNA 1
GPU Interface: PCIe 4.0 x 16
Structure size: 7 nm
Release date: Q3/2019



TOP 5 GPUs in group by FP32 performance

1. ASRock Radeon RX 5700 Challenger D 8G OC ASRock Radeon RX 5700 Challenger D 8G OC 8.06 TFLOPS
2. ASRock Radeon RX 5700 Phantom Gaming D 8G OC ASRock Radeon RX 5700 Phantom Gaming D 8G OC 8.06 TFLOPS
3. ASUS Dual Radeon RX 5700 OC Evo ASUS Dual Radeon RX 5700 OC Evo 8.06 TFLOPS
4. ASUS ROG Strix Radeon RX 5700 OC ASUS ROG Strix Radeon RX 5700 OC 8.06 TFLOPS
5. ASUS TUF Gaming X3 Radeon RX 5700 OC ASUS TUF Gaming X3 Radeon RX 5700 OC 8.06 TFLOPS



TOP 5 GPUs in group by maximum TDP

1. ASRock Radeon RX 5700 8G ASRock Radeon RX 5700 8G 220 W
2. ASRock Radeon RX 5700 Challenger D 8G OC ASRock Radeon RX 5700 Challenger D 8G OC 220 W
3. ASRock Radeon RX 5700 Phantom Gaming D 8G OC ASRock Radeon RX 5700 Phantom Gaming D 8G OC 220 W
4. ASUS Dual Radeon RX 5700 OC Evo ASUS Dual Radeon RX 5700 OC Evo 220 W
5. ASUS Radeon RX 5700 ASUS Radeon RX 5700 220 W




Recommended power supplies for this graphics card

Power Supply PCIe 8 Pin (6+2) Release price
