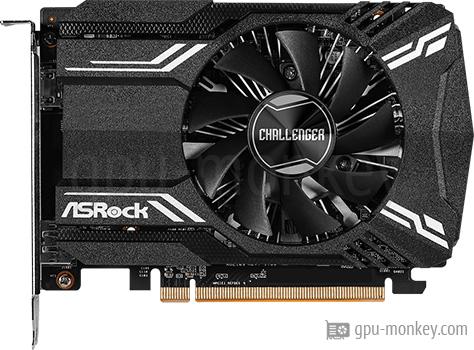

AMD Radeon RX 6400

AMD Radeon RX 6400

GPU

GPU Chip: Navi 24 XL
Execution units: 12
Shader: 768
Render Output Units: 32
Texture Units: 48

Memory

Memory Size: 4 GB
Memory Type: GDDR6
Memory Clock: 2 GHz
Memory Speed: 16 Gbps
Memory Bandwith: 128 GB/s
Memory Interface: 64 bit

Clock Speeds

Base Clock: 1.923 GHz
Boost Clock: 2.321 GHz
Avg (Game) Clock: 2.039 GHz

Thermal Design

TDP: 53 W
TDP (up): --

Featureset

Max. Displays: 2
Max. resolution: 7680x4320
DirectX: 12_2
Raytracing: Yes
DLSS / FSR: No

Supported Video Codecs

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode / Encode
VP9: Decode / Encode
AV1: Decode

Additional data

Manufacturer: AMD
Architecture: RDNA 2
GPU Interface: PCIe 4.0 x 4
Structure size: 6 nm
Release date: Q2/2022



TOP 5 GPUs in group by FP32 performance

1. AMD Radeon RX 6400 - Reference Data AMD Radeon RX 6400 - Reference Data 3.57 TFLOPS
2. ASRock Radeon RX 6400 Challenger ITX 4GB ASRock Radeon RX 6400 Challenger ITX 4GB 3.57 TFLOPS
3. ASUS Dual Radeon RX 6400 ASUS Dual Radeon RX 6400 3.57 TFLOPS
4. ASUS Phoenix Radeon RX 6400 ASUS Phoenix Radeon RX 6400 3.57 TFLOPS
5. GIGABYTE Radeon RX 6400 D6 LOW PROFILE 4G GIGABYTE Radeon RX 6400 D6 LOW PROFILE 4G 3.57 TFLOPS



TOP 5 GPUs in group by maximum TDP

1. AMD Radeon RX 6400 - Reference Data AMD Radeon RX 6400 - Reference Data 0 W
2. ASRock Radeon RX 6400 Challenger ITX 4GB ASRock Radeon RX 6400 Challenger ITX 4GB 0 W
3. ASUS Dual Radeon RX 6400 ASUS Dual Radeon RX 6400 0 W
4. ASUS Phoenix Radeon RX 6400 ASUS Phoenix Radeon RX 6400 0 W
5. GIGABYTE Radeon RX 6400 D6 LOW PROFILE 4G GIGABYTE Radeon RX 6400 D6 LOW PROFILE 4G 0 W



GPUs based on AMD Radeon RX 6400

Manufacturer:


GPU FP32 Boost Clock
AMD Radeon RX 6400 - Reference Data AMD Radeon RX 6400 - Reference Data 3.57 TFLOPS 2.32 GHz
ASRock Radeon RX 6400 Challenger ITX 4GB ASRock Radeon RX 6400 Challenger ITX 4GB 3.57 TFLOPS 2.32 GHz
ASUS Dual Radeon RX 6400 ASUS Dual Radeon RX 6400 3.57 TFLOPS 2.32 GHz
ASUS Phoenix Radeon RX 6400 ASUS Phoenix Radeon RX 6400 3.57 TFLOPS 2.32 GHz
GIGABYTE Radeon RX 6400 D6 LOW PROFILE 4G GIGABYTE Radeon RX 6400 D6 LOW PROFILE 4G 3.57 TFLOPS 2.32 GHz
GIGABYTE Radeon RX 6400 EAGLE 4G GIGABYTE Radeon RX 6400 EAGLE 4G 3.57 TFLOPS 2.32 GHz
MSI Radeon RX 6400 AERO TX 4G MSI Radeon RX 6400 AERO TX 4G 3.57 TFLOPS 2.32 GHz
PowerColor Radeon RX 6400 ITX 4GB PowerColor Radeon RX 6400 ITX 4GB 3.57 TFLOPS 2.32 GHz
PowerColor Radeon RX 6400 Low Profile 4GB PowerColor Radeon RX 6400 Low Profile 4GB 3.57 TFLOPS 2.32 GHz
SAPPHIRE Pulse Radeon RX 6400 SAPPHIRE Pulse Radeon RX 6400 3.57 TFLOPS 2.32 GHz
XFX Radeon RX 6400 SPEEDSTER SWFT105 XFX Radeon RX 6400 SPEEDSTER SWFT105 3.57 TFLOPS 2.32 GHz
