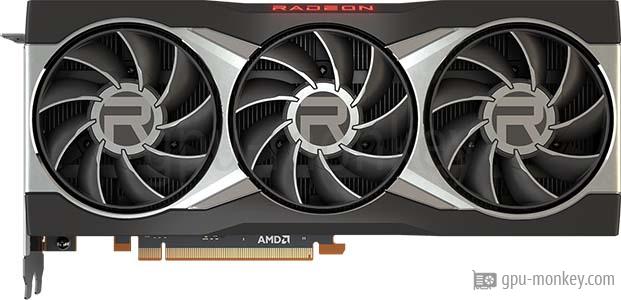

AMD Radeon RX 6800

AMD Radeon RX 6800

GPU

GPU Chip: Navi 21
Execution units: 60
Shader: 3840
Render Output Units: 96
Texture Units: 240

Memory

Memory Size: 16 GB
Memory Type: GDDR6
Memory Clock: 2 GHz
Memory Speed: 16 Gbps
Memory Bandwith: 512 GB/s
Memory Interface: 256 bit

Clock Speeds

Base Clock: 1.700 GHz
Boost Clock: 2.105 GHz
Avg (Game) Clock: 1.815 GHz

Thermal Design

TDP: 250 W
TDP (up): 285 W

Featureset

Max. Displays: 4
Max. resolution: 7680x4320
DirectX: 12_2
Raytracing: Yes
DLSS / FSR: No

Supported Video Codecs

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode / Encode
VP9: Decode / Encode
AV1: Decode

Additional data

Manufacturer: AMD
Architecture: RDNA 2
GPU Interface: PCIe 4.0 x 16
Structure size: 7 nm
Release date: Q4/2020



TOP 5 GPUs in group by FP32 performance

1. ASRock Radeon RX 6800 Phantom Gaming D 16G OC ASRock Radeon RX 6800 Phantom Gaming D 16G OC 16.82 TFLOPS
2. ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC 16.82 TFLOPS
3. ASUS TUF Gaming Radeon RX 6800 OC ASUS TUF Gaming Radeon RX 6800 OC 16.82 TFLOPS
4. GIGABYTE AORUS Radeon RX 6800 MASTER 16G GIGABYTE AORUS Radeon RX 6800 MASTER 16G 16.82 TFLOPS
5. PowerColor Radeon RX 6800 Red Devil PowerColor Radeon RX 6800 Red Devil 16.82 TFLOPS



TOP 5 GPUs in group by maximum TDP

1. AMD Radeon RX 6800 AMD Radeon RX 6800 285 W
2. ASRock Radeon RX 6800 Challenger Pro 16G OC ASRock Radeon RX 6800 Challenger Pro 16G OC 285 W
3. ASRock Radeon RX 6800 Phantom Gaming D 16G OC ASRock Radeon RX 6800 Phantom Gaming D 16G OC 285 W
4. ASUS Radeon RX 6800 ASUS Radeon RX 6800 285 W
5. ASUS ROG Strix Radeon RX 6800 OC ASUS ROG Strix Radeon RX 6800 OC 285 W
