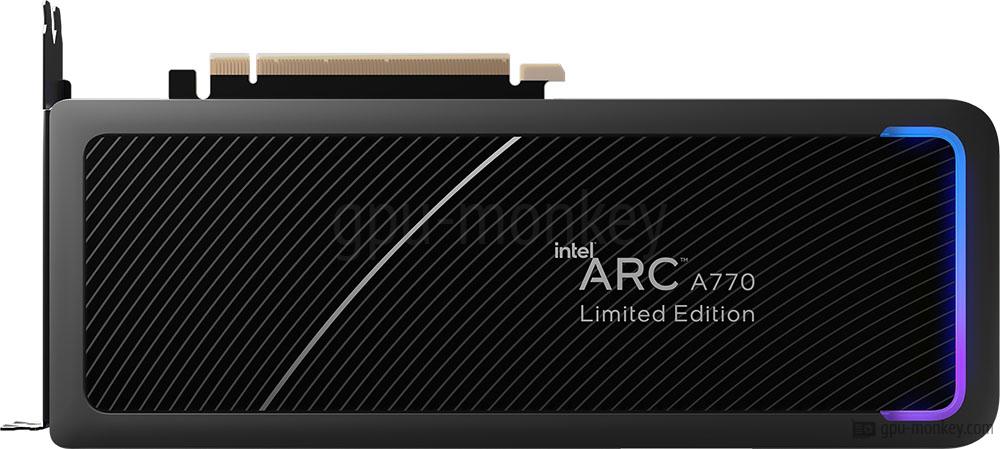

Intel Arc A770 Graphics 16GB

Intel Arc A770 Graphics 16GB

GPU

GPU Chip: ACM-G10
Streaming Multiprocessors: 512
Shader: 4096
Render Output Units: 128
Texture Units: 256
Raytracing Cores: 32
FP32: 17.20 TFLOPS

Memory

Memory Size: 16 GB
Memory Type: GDDR6
Memory Clock: 2.188 GHz
Memory Speed: 17.5 Gbps
Memory bandwidth: 560 GB/s
Memory Interface: 256 bit

Clock Speeds

Base Clock: 2.100 GHz
Boost Clock: --
Avg (Game) Clock: --

Thermal Design

TDP: 225 W
TDP (up): --

Featureset

Max. Displays: 4
Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: No

Supported Video Codecs

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: No
VP9: Decode / Encode
AV1: Decode / Encode

Additional data

Manufacturer: Intel
Architecture: Alchemist
GPU Interface: PCIe 4.0 x 16
Structure size: 6 nm
Release date: Q3/2022
Launch Price: --


Benchmark results

3DMark Benchmark (DirectX, Raytracing) - Time Spy Extreme Graphics score

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
View all 3DMark Benchmark (DirectX, Raytracing) benchmark results


3DMark Benchmark (DirectX, Raytracing) - Port Royal (Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
View all 3DMark Benchmark (DirectX, Raytracing) benchmark results


3DMark Benchmark (DirectX, Raytracing) - Speed Way Graphics Score (Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
View all 3DMark Benchmark (DirectX, Raytracing) benchmark results


TOP 5 GPUs in group by FP32 performance

1. SPARKLE Intel Arc A770 TITAN OC Edition SPARKLE Intel Arc A770 TITAN OC Edition 18.84 TFLOPS
2. Acer PREDATOR BIFROST Intel Arc A770 OC 16GB Acer PREDATOR BIFROST Intel Arc A770 OC 16GB 18.02 TFLOPS
3. ASRock Intel Arc A770 Challenger 16GB OC ASRock Intel Arc A770 Challenger 16GB OC 18.02 TFLOPS
4. ASRock Intel Arc A770 Phantom Gaming 16GB OC ASRock Intel Arc A770 Phantom Gaming 16GB OC 18.02 TFLOPS
5. Intel Arc A770 Graphics 16GB Intel Arc A770 Graphics 16GB 17.20 TFLOPS



TOP 5 GPUs in group by maximum TDP

1. Acer PREDATOR BIFROST Intel Arc A770 OC 16GB Acer PREDATOR BIFROST Intel Arc A770 OC 16GB 225 W
2. Intel Arc A770 Graphics 16GB Intel Arc A770 Graphics 16GB 225 W
3. ASRock Intel Arc A770 Challenger 16GB OC ASRock Intel Arc A770 Challenger 16GB OC 0 W
4. ASRock Intel Arc A770 Phantom Gaming 16GB OC ASRock Intel Arc A770 Phantom Gaming 16GB OC 0 W
5. SPARKLE Intel Arc A770 TITAN OC Edition SPARKLE Intel Arc A770 TITAN OC Edition 0 W
