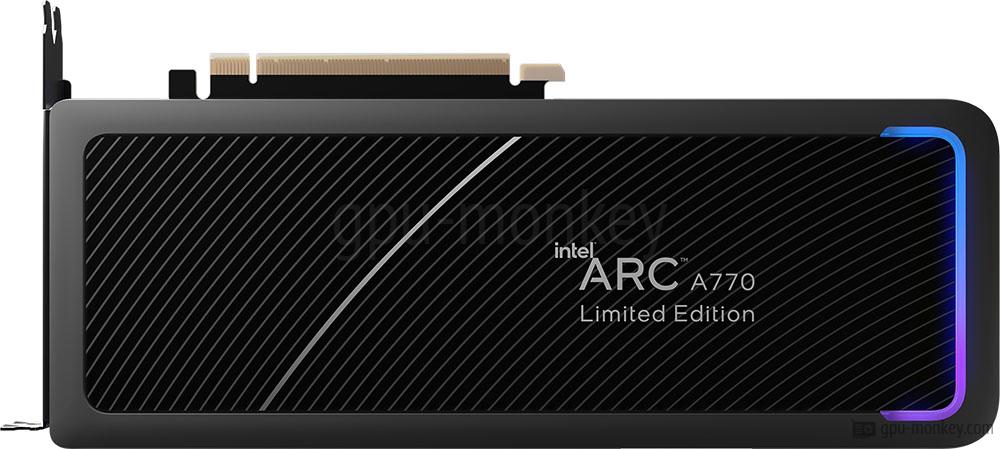

Intel Arc A770 Graphics 8GB

Intel Arc A770 Graphics 8GB

GPU
GPU Chip: ACM-G10
Streaming Multiprocessors: 512
Shader: 4096
Render Output Units: 128
Texture Units: 256
Raytracing Cores: 32
FP32: 17.20 TFLOPS

Memory
Memory Size: 8 GB
Memory Type: GDDR6
Memory Clock: 2 GHz
Memory Speed: 16 Gbps
Memory bandwidth: 512 GB/s
Memory Interface: 256 bit

Clock Speeds
Base Clock: 2.100 GHz
Boost Clock: --
Avg (Game) Clock: --

Thermal Design
TDP: 225 W
TDP (up): --

Featureset
Max. Displays: 4
Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: No

Supported Video Codecs
h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: No
VP9: Decode / Encode
AV1: Decode / Encode

Additional data
Manufacturer: Intel
Architecture: Alchemist
GPU Interface: PCIe 4.0 x 16
Structure size: 6 nm
Release date: Q3/2022
Launch Price: --


Benchmark results

3DMark Benchmark (DirectX, Raytracing) - Time Spy Extreme Graphics score

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
View all 3DMark Benchmark (DirectX, Raytracing) benchmark results


3DMark Benchmark (DirectX, Raytracing) - Port Royal (Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
View all 3DMark Benchmark (DirectX, Raytracing) benchmark results


3DMark Benchmark (DirectX, Raytracing) - Speed Way Graphics Score (Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
View all 3DMark Benchmark (DirectX, Raytracing) benchmark results


TOP 5 GPUs in group by FP32 performance

1. ASRock Intel Arc A770 Phantom Gaming D 8GB OC ASRock Intel Arc A770 Phantom Gaming D 8GB OC 18.02 TFLOPS
2. Intel Arc A770 Graphics 8GB Intel Arc A770 Graphics 8GB 17.20 TFLOPS



TOP 5 GPUs in group by maximum TDP

1. ASRock Intel Arc A770 Phantom Gaming D 8GB OC ASRock Intel Arc A770 Phantom Gaming D 8GB OC 225 W
2. Intel Arc A770 Graphics 8GB Intel Arc A770 Graphics 8GB 225 W
