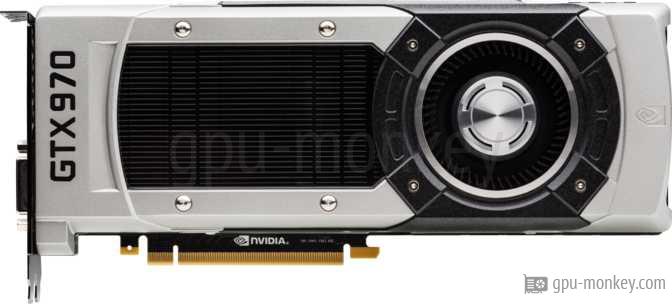

NVIDIA GeForce GTX 970
GPU |
| GPU Chip: |
GM204-200-A1 |
| Streaming Multiprocessors: |
13 |
| Shader: |
1664 |
| Render Output Units: |
56 |
| Texture Units: |
104 |
| Raytracing Cores: |
0 |
| FP32: |
3.92 TFLOPS |
Memory |
| Memory Size: |
4 GB |
| Memory Type: |
GDDR5 |
| Memory Clock: |
1.75 GHz |
| Memory Speed: |
7 Gbps |
| Memory bandwidth: |
224 GB/s |
| Memory Interface: |
256 bit |
Clock Speeds |
| Base Clock: |
1.050 GHz |
| Boost Clock: |
1.178 GHz |
| Avg (Game) Clock: |
-- |
Thermal Design |
| TDP: |
148 W |
| TDP (up): |
-- |
Featureset |
| Max. Displays: |
4 |
| Max. resolution: |
4096x2160 |
| DirectX: |
12_1 |
| Raytracing: |
No |
| DLSS / FSR: |
No |
Supported Video Codecs |
| h264: |
Decode / Encode |
| h265 / HEVC: |
No |
| VP8: |
Decode |
| VP9: |
No |
| AV1: |
No |
Additional data |
| Manufacturer: |
NVIDIA |
| Architecture: |
Maxwell 2.0 |
| GPU Interface: |
PCIe 3 x 16 |
| Structure size: |
28 nm |
| Release date: |
Q3/2014 |
| Launch Price: |
329 $ |
Benchmark results
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
TOP 5 GPUs in group by FP32 performance
TOP 5 GPUs in group by maximum TDP
