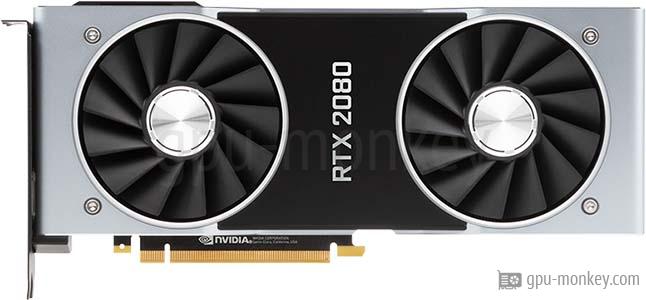

NVIDIA GeForce RTX 2080

NVIDIA GeForce RTX 2080

GPU

GPU Chip: TU104
Execution units: 46
Shader: 2944
Render Output Units: 64
Texture Units: 184
Raytracing Cores: 46

Memory

Memory Size: 8 GB
Memory Type: GDDR6
Memory Clock: 1.75 GHz
Memory Speed: 14 Gbps
Memory Bandwith: 448 GB/s
Memory Interface: 256 bit

Clock Speeds

Base Clock: 1.515 GHz
Boost Clock: 1.710 GHz
Avg (Game) Clock: --

Thermal Design

TDP: 215 W
TDP (up): 238 W

Featureset

Max. Displays: 4
Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes

Supported Video Codecs

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: No

Additional data

Manufacturer: NVIDIA
Architecture: Turing
GPU Interface: PCIe 3.0 x 16
Structure size: 12 nm
Release date: Q3/2018



TOP 5 GPUs in group by FP32 performance

1. ZOTAC GAMING GeForce RTX 2080 AMP Extreme ZOTAC GAMING GeForce RTX 2080 AMP Extreme 11.22 TFLOPS
2. ASUS ROG Strix GeForce RTX 2080 OC ASUS ROG Strix GeForce RTX 2080 OC 11.13 TFLOPS
3. GIGABYTE AORUS GeForce RTX 2080 Xtreme 8G GIGABYTE AORUS GeForce RTX 2080 Xtreme 8G 11.13 TFLOPS
4. GIGABYTE AORUS GeForce RTX 2080 Xtreme Waterforce 8G GIGABYTE AORUS GeForce RTX 2080 Xtreme Waterforce 8G 11.13 TFLOPS
5. GIGABYTE AORUS GeForce RTX 2080 Xtreme Waterforce WB 8G GIGABYTE AORUS GeForce RTX 2080 Xtreme Waterforce WB 8G 11.13 TFLOPS



TOP 5 GPUs in group by maximum TDP

1. MSI GeForce RTX 2080 Gaming Trio MSI GeForce RTX 2080 Gaming Trio 310 W
2. MSI GeForce RTX 2080 Gaming X Trio MSI GeForce RTX 2080 Gaming X Trio 310 W
3. MSI GeForce RTX 2080 Sea Hawk EK X MSI GeForce RTX 2080 Sea Hawk EK X 310 W
4. GIGABYTE AORUS GeForce RTX 2080 Xtreme Waterforce 8G GIGABYTE AORUS GeForce RTX 2080 Xtreme Waterforce 8G 300 W
5. GIGABYTE AORUS GeForce RTX 2080 Xtreme Waterforce WB 8G GIGABYTE AORUS GeForce RTX 2080 Xtreme Waterforce WB 8G 300 W




Recommended power supplies for this graphics card

Power Supply PCIe 8 Pin (6+2) Release price
