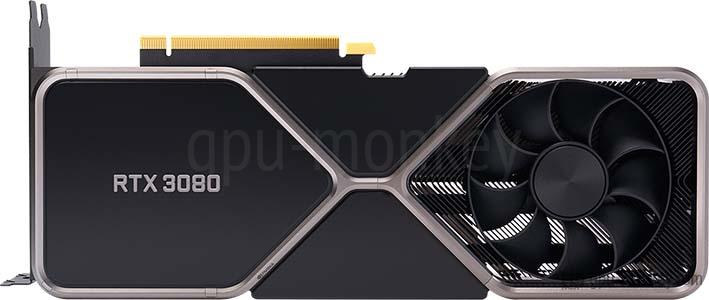

NVIDIA GeForce RTX 3080 LHR

NVIDIA GeForce RTX 3080 LHR

GPU

GPU Chip: GA102-202-K1-A1
Execution units: 68
Shader: 8704
Render Output Units: 96
Texture Units: 272

Memory

Memory Size: 10 GB
Memory Type: GDDR6X
Memory Clock: 1.188 GHz
Memory Speed: 19 Gbps
Memory Bandwith: 760 GB/s
Memory Interface: 320 bit

Clock Speeds

Base Clock: 1.440 GHz
Boost Clock: 1.710 GHz
Avg (Game) Clock: --

Thermal Design

TDP: 320 W
TDP (up): 370 W

Featureset

Max. Displays: 4
Max. resolution: 7680x4320
DirectX: 12_2
Raytracing: Yes
DLSS / FSR: Yes

Supported Video Codecs

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Additional data

Manufacturer: NVIDIA
Architecture: Ampere
GPU Interface: PCIe 4.0 x 16
Structure size: 8 nm
Release date: Q3/2020

ethash - Miner with LHR-Unlock is needed
ETH / EthereumETH - 100 MH/s
CORE 1200 MEM 2700 PL 230

Settings for the Linux mining operating system Hive OS for the gpu NVIDIA GeForce RTX 3080 LHR. The settings are based on our experience and work for most models of this graphics card. The results can vary depending on the chip quality, driver and software version. In these cases, the settings may have to be adapted to your own hardware.



TOP 5 GPUs in group by FP32 performance

1. ASUS ROG Strix GeForce RTX 3080 OC V2 LHR ASUS ROG Strix GeForce RTX 3080 OC V2 LHR 33.69 TFLOPS
2. ASUS ROG Strix GeForce RTX 3080 OC White V2 LHR ASUS ROG Strix GeForce RTX 3080 OC White V2 LHR 33.69 TFLOPS
3. MSI GeForce RTX 3080 SUPRIM X 10G LHR MSI GeForce RTX 3080 SUPRIM X 10G LHR 33.42 TFLOPS
4. GIGABYTE AORUS GeForce RTX 3080 Xtreme 10G (rev. 2.0) LHR GIGABYTE AORUS GeForce RTX 3080 Xtreme 10G (rev. 2.0) LHR 33.16 TFLOPS
5. Gainward GeForce RTX 3080 Phantom GS V1 LHR Gainward GeForce RTX 3080 Phantom GS V1 LHR 32.38 TFLOPS



TOP 5 GPUs in group by maximum TDP

1. ASUS ROG Strix GeForce RTX 3080 OC V2 LHR ASUS ROG Strix GeForce RTX 3080 OC V2 LHR 450 W
2. ASUS ROG Strix GeForce RTX 3080 OC White V2 LHR ASUS ROG Strix GeForce RTX 3080 OC White V2 LHR 450 W
3. ASUS ROG Strix GeForce RTX 3080 V2 LHR ASUS ROG Strix GeForce RTX 3080 V2 LHR 450 W
4. ASUS ROG Strix GeForce RTX 3080 White V2 LHR ASUS ROG Strix GeForce RTX 3080 White V2 LHR 450 W
5. MSI GeForce RTX 3080 GAMING Z TRIO 10G LHR MSI GeForce RTX 3080 GAMING Z TRIO 10G LHR 430 W




Recommended power supplies for this graphics card

Power Supply PCIe 8 Pin (6+2) Release price
