ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
vs

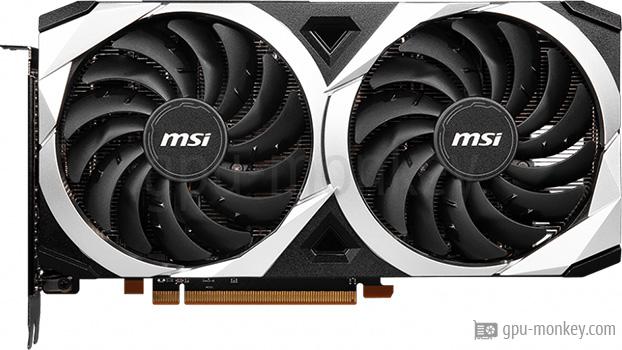

MSI Radeon RX 6650 XT MECH 2X 8G
GPU comparison with benchmarksThe ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC is based on the AMD Radeon RX 6500 XT (RDNA 2) and has 4 GB GDDR6 graphics memory with a bandwidth of 144 GB/s.
The MSI Radeon RX 6650 XT MECH 2X 8G is based on the AMD Radeon RX 6650 XT (RDNA 2) and has 8 GB GDDR6 graphics memory with a bandwidth of 280 GB/s. |
||
GPUThe ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC has the Navi 24 XT graphics chip installed, which is based on the RDNA 2 architecture. The MSI Radeon RX 6650 XT MECH 2X 8G is based on the graphics chip Navi 23 KXT, which comes from the RDNA 2 architecture. |
||
| ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC | GPU | MSI Radeon RX 6650 XT MECH 2X 8G |
| AMD Radeon RX 6500 XT | Based on | AMD Radeon RX 6650 XT |
| Navi 24 XT | GPU Chip | Navi 23 KXT |
| RDNA 2 | Architecture | RDNA 2 |
| 16 | Streaming Multiprocessors | 32 |
| 1024 | Shader | 2048 |
| 32 | Render Output Units | 64 |
| 64 | Texture Units | 128 |
| 16 | Raytracing Cores | 32 |
MemoryThe graphics memory of the ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC clocks at 2.250 GHz, which corresponds to a speed of 18.0 Gbps. The graphics memory speed of the MSI Radeon RX 6650 XT MECH 2X 8G is 17.5 Gbps and the clock speed is 2.190 GHz. |
||
| 4 GB | Memory Size | 8 GB |
| GDDR6 | Memory Type | GDDR6 |
| 2.250 GHz | Memory Clock | 2.190 GHz |
| 18.0 Gbps | Memory Speed | 17.5 Gbps |
| 144 GB/s | Memory bandwidth | 280 GB/s |
| 64 bit | Memory Interface | 128 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 2.200 GHz | Base Clock | 2.055 GHz |
| 2.820 GHz | Boost Clock | 2.635 GHz |
| 2.65 GHz | Avg (Game) Clock | 2.41 GHz |
| Yes | Overclocking | Yes |
Thermal DesignThe ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 107 W. The MSI Radeon RX 6650 XT MECH 2X 8G has 1 x 8-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 175 W. |
||
| 107 W | TDP | 175 W |
| -- | TDP (up) | -- |
| 97 °C | Tjunction max | 100 °C |
| 1 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC is equipped with a total of 2 Axial main fans. The MSI Radeon RX 6650 XT MECH 2X 8G has 2 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 2 x 90 mm | Fan 1 | 2 x 100 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 2 screens can be operated with the ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC. The MSI Radeon RX 6650 XT MECH 2X 8G supports the operation of a maximum of 4 monitors. |
||
| 2 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 1x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the MSI Radeon RX 6650 XT MECH 2X 8G is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode | h264 | Decode / Encode |
| Decode | h265 / HEVC | Decode / Encode |
| No | AV1 | Decode |
| Decode | VP8 | Decode / Encode |
| Decode | VP9 | Decode / Encode |
DimensionsThe ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC is connected to the system via PCIe 4.0 x 4 lanes and requires 2 PCIe-Slots space in the housing. The MSI Radeon RX 6650 XT MECH 2X 8G needs the space of 2 PCIe-Slots in the case and has a PCIe 4.0 x 8 Lanes interface. |
||
| 240 mm | Length | 235 mm |
| 129 mm | Height | 125 mm |
| 42 mm | Width | 47 mm |
| 2 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| 459 g | Weight | 675 g |
| PCIe 4.0 x 4 | GPU Interface | PCIe 4.0 x 8 |
Additional dataThe ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC has been manufactured with a structure width of 6 nanometers since Q1/2022. The MSI Radeon RX 6650 XT MECH 2X 8G came on the market in Q2/2022 and will have a structure width of 7 nanometers manufactured. |
||
| RX6500XT PGD 4GO | Part-no | -- |
| Q1/2022 | Release date | Q2/2022 |
| 199 $ (Reference) | Launch Price | 399 $ (Reference) |
| 6 nm | Structure size | 7 nm |
| data sheet | Documents | data sheet |
2.200 GHz, 4 GB (107 W TDP)
Buy this graphic card at amazon!
2.055 GHz, 8 GB (175 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
2560x1440 (1440p)
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
2560x1440 (1440p)
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
Geekbench 6 - Vulkan
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
Geekbench 6 - Metal
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ASRock Radeon RX 6500 XT Phantom Gaming D 4GB OC
4 GB GDDR6 |
||
|
|
MSI Radeon RX 6650 XT MECH 2X 8G
8 GB GDDR6 |
||
