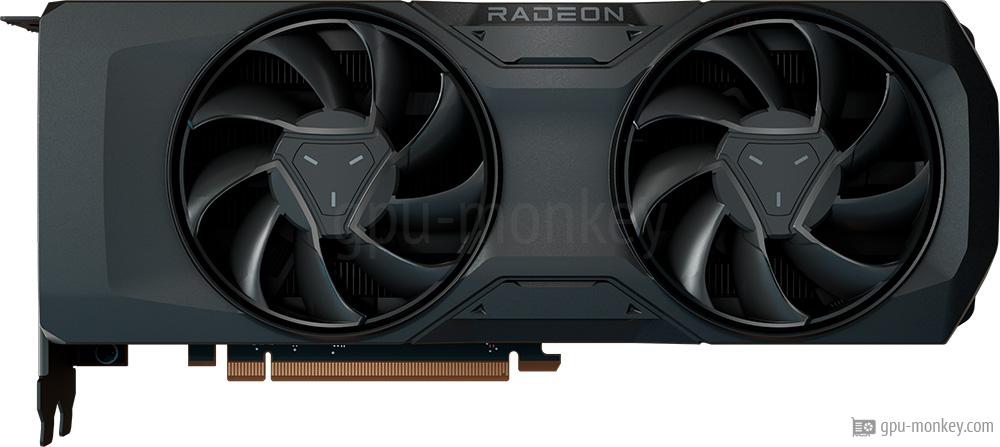

AMD Radeon RX 7800 XT
AMD 29 models 2023

AMD Radeon RX 7800 XT GPU list 2026

We list 29 graphics cards based on the AMD Radeon RX 7800 XT (Navi 32 XT) with 16 GB GDDR6 – with benchmarks, clock speeds and technical data of all board partner models.

FP32
37.32TFLOPS
Boost Clock
2.43GHz
Memory
16GB GDDR6
TDP
263W
All models Check price on Amazon

GPUs based on AMD Radeon RX 7800 XT

All board partner models sorted by FP32 performance. The percentage shows the deviation of the boost clock from the reference design.

Technical details

GPU

GPU Chip
Navi 32 XT (RDNA 3)
Streaming Multiprocessors
60
Shader
3840
Render Output Units
96
Texture Units
240
Raytracing Cores
60
FP32
37.32 TFLOPS

Memory

Memory Size
16 GB
Memory Type
GDDR6
Memory Clock
2.438 GHz
Memory Speed
19.5 Gbps
Memory bandwidth
624 GB/s
Memory Interface
256 bit

Clock Speeds

Base Clock
1.800 GHz
Boost Clock
2.430 GHz
Avg (Game) Clock
2.124 GHz

Thermal Design

TDP
263 W
Tjunction max
96 °C
GPU Interface
PCIe 4 x 16

Featureset

Max. Displays
4
Max. resolution
7680x4320
DirectX
12_2 (Ultimate)
Raytracing
Yes
DLSS / FSR
Yes
Structure size
5 nm

Supported Video Codecs

h264
Decode / Encode
h265 / HEVC
Decode / Encode
VP8
Decode / Encode
VP9
Decode / Encode
AV1
Decode / Encode
Launch Price
499 $

TOP 5 GPUs in group by FP32 performance

  1. 1Acer PREDATOR BIFROST Radeon RX 7800 XT OC 16GBAcer PREDATOR BIFROST Radeon RX 7800 XT OC 16GB16 GB GDDR639.39TFLOPS
  2. 2ASRock Radeon RX 7800 XT Phantom Gaming 16GB OCASRock Radeon RX 7800 XT Phantom Gaming 16GB OC16 GB GDDR639.39TFLOPS
  3. 3ASUS TUF Gaming Radeon RX 7800 XT OC EditionASUS TUF Gaming Radeon RX 7800 XT OC Edition16 GB GDDR639.39TFLOPS
  4. 4ASUS TUF Gaming Radeon RX 7800 XT OG OC EditionASUS TUF Gaming Radeon RX 7800 XT OG OC Edition16 GB GDDR639.39TFLOPS
  5. 5ASUS TUF Gaming Radeon RX 7800 XT White OC EditionASUS TUF Gaming Radeon RX 7800 XT White OC Edition16 GB GDDR639.39TFLOPS

TOP 5 GPUs in group by maximum TDP

  1. 1Acer PREDATOR BIFROST Radeon RX 7800 XT OC 16GBAcer PREDATOR BIFROST Radeon RX 7800 XT OC 16GB16 GB GDDR6307W
  2. 2SAPPHIRE NITRO+ Radeon RX 7800 XTSAPPHIRE NITRO+ Radeon RX 7800 XT16 GB GDDR6288W
  3. 3SAPPHIRE PURE Radeon RX 7800 XTSAPPHIRE PURE Radeon RX 7800 XT16 GB GDDR6270W
  4. 4SAPPHIRE PULSE Radeon RX 7800 XTSAPPHIRE PULSE Radeon RX 7800 XT16 GB GDDR6266W
  5. 5AMD Radeon RX 7800 XTAMD Radeon RX 7800 XT16 GB GDDR6263W

Benchmark results

Average of gpu group

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

  1. AMD Radeon RX 7900 GREAMD Radeon RX 7900 GRE16 GB GDDR6
    10,156
  2. NVIDIA GeForce RTX 4070 SUPERNVIDIA GeForce RTX 4070 SUPER12 GB GDDR6X
    10,061
  3. NVIDIA GeForce RTX 3080 TiNVIDIA GeForce RTX 3080 Ti12 GB GDDR6X
    9,980
  4. AMD Radeon RX 7800 XTAMD Radeon RX 7800 XT16 GB GDDR6
    9,479
  5. AMD Radeon RX 6800 XTAMD Radeon RX 6800 XT16 GB GDDR6
    9,334
  6. NVIDIA GeForce RTX 3080 12GBNVIDIA GeForce RTX 3080 12GB12 GB GDDR6X
    9,277
  7. NVIDIA RTX A6000NVIDIA RTX A600048 GB GDDR6
    9,246

Port Royal (Raytracing)

  1. NVIDIA GeForce RTX 4090 Mobile (Laptop GPU)NVIDIA GeForce RTX 4090 Mobile (Laptop GPU)16 GB GDDR6
    10,894
  2. AMD Radeon RX 6950 XTAMD Radeon RX 6950 XT16 GB GDDR6
    10,665
  3. NVIDIA RTX A5500NVIDIA RTX A550024 GB GDDR6
    10,522
  4. AMD Radeon RX 7800 XTAMD Radeon RX 7800 XT16 GB GDDR6
    10,409
  5. AMD Radeon RX 6900 XTAMD Radeon RX 6900 XT16 GB GDDR6
    10,262
  6. AMD Radeon RX 6800 XTAMD Radeon RX 6800 XT16 GB GDDR6
    9,586
  7. NVIDIA TITAN RTXNVIDIA TITAN RTX24 GB GDDR6
    9,416

Speed Way Graphics Score (Raytracing)

  1. NVIDIA RTX A5000NVIDIA RTX A500024 GB GDDR6
    3,899
  2. NVIDIA GeForce RTX 3070 TiNVIDIA GeForce RTX 3070 Ti8 GB GDDR6X
    3,827
  3. AMD Radeon RX 6900 XTAMD Radeon RX 6900 XT16 GB GDDR6
    3,755
  4. AMD Radeon RX 7800 XTAMD Radeon RX 7800 XT16 GB GDDR6
    3,748
  5. AMD Radeon RX 6800 XTAMD Radeon RX 6800 XT16 GB GDDR6
    3,573
  6. NVIDIA GeForce RTX 3070NVIDIA GeForce RTX 30708 GB GDDR6
    3,508
  7. NVIDIA GeForce RTX 3070 LHRNVIDIA GeForce RTX 3070 LHR8 GB GDDR6
    3,506
View all 3DMark Benchmark (DirectX, Raytracing) benchmark results

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

  1. AMD Radeon RX 6700 XTAMD Radeon RX 6700 XT12 GB GDDR6
    41 fps (avg)
  2. AMD Radeon RX 7900 GREAMD Radeon RX 7900 GRE16 GB GDDR6
    40 fps (avg)
  3. NVIDIA GeForce RTX 2080NVIDIA GeForce RTX 20808 GB GDDR6
    39 fps (avg)
  4. AMD Radeon RX 7800 XTAMD Radeon RX 7800 XT16 GB GDDR6
    38 fps (avg)
  5. NVIDIA GeForce RTX 2070 SUPERNVIDIA GeForce RTX 2070 SUPER8 GB GDDR6
    36 fps (avg)
  6. AMD Radeon RX 6700AMD Radeon RX 670012 GB GDDR6
    34 fps (avg)
  7. NVIDIA GeForce RTX 2070NVIDIA GeForce RTX 20708 GB GDDR6
    32 fps (avg)

2560x1440 (1440p)

  1. NVIDIA GeForce RTX 4070NVIDIA GeForce RTX 407012 GB GDDR6X
    93 fps (avg)
  2. AMD Radeon RX 7900 GREAMD Radeon RX 7900 GRE16 GB GDDR6
    88 fps (avg)
  3. NVIDIA GeForce RTX 3090 TiNVIDIA GeForce RTX 3090 Ti24 GB GDDR6X
    87 fps (avg)
  4. AMD Radeon RX 7800 XTAMD Radeon RX 7800 XT16 GB GDDR6
    82 fps (avg)
  5. NVIDIA GeForce RTX 3090NVIDIA GeForce RTX 309024 GB GDDR6X
    79 fps (avg)
  6. AMD Radeon RX 6900 XTAMD Radeon RX 6900 XT16 GB GDDR6
    77 fps (avg)
  7. NVIDIA GeForce RTX 3080 TiNVIDIA GeForce RTX 3080 Ti12 GB GDDR6X
    77 fps (avg)

1920x1080 (1080p)

  1. NVIDIA GeForce RTX 4070 SUPERNVIDIA GeForce RTX 4070 SUPER12 GB GDDR6X
    150 fps (avg)
  2. AMD Radeon RX 7900 GREAMD Radeon RX 7900 GRE16 GB GDDR6
    130 fps (avg)
  3. NVIDIA GeForce RTX 4070NVIDIA GeForce RTX 407012 GB GDDR6X
    130 fps (avg)
  4. AMD Radeon RX 7800 XTAMD Radeon RX 7800 XT16 GB GDDR6
    126 fps (avg)
  5. NVIDIA GeForce RTX 3090 TiNVIDIA GeForce RTX 3090 Ti24 GB GDDR6X
    125 fps (avg)
  6. AMD Radeon RX 6900 XTAMD Radeon RX 6900 XT16 GB GDDR6
    116 fps (avg)
  7. AMD Radeon RX 6950 XTAMD Radeon RX 6950 XT16 GB GDDR6
    115 fps (avg)
View all Cyberpunk 2077 benchmark results

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

  1. AMD Radeon RX 7900 XTAMD Radeon RX 7900 XT20 GB GDDR6
    44 fps (avg)
  2. NVIDIA GeForce RTX 4070 TiNVIDIA GeForce RTX 4070 Ti12 GB GDDR6X
    44 fps (avg)
  3. AMD Radeon RX 7800 XTAMD Radeon RX 7800 XT16 GB GDDR6
    42 fps (avg)
  4. NVIDIA GeForce RTX 3090NVIDIA GeForce RTX 309024 GB GDDR6X
    42 fps (avg)
  5. NVIDIA GeForce RTX 4070 SUPERNVIDIA GeForce RTX 4070 SUPER12 GB GDDR6X
    41 fps (avg)
  6. NVIDIA GeForce RTX 3080 TiNVIDIA GeForce RTX 3080 Ti12 GB GDDR6X
    40 fps (avg)
  7. AMD Radeon RX 6950 XTAMD Radeon RX 6950 XT16 GB GDDR6
    40 fps (avg)

2560x1440 (1440p)

  1. AMD Radeon RX 7900 XTXAMD Radeon RX 7900 XTX24 GB GDDR6
    95 fps (avg)
  2. NVIDIA GeForce RTX 4070 TiNVIDIA GeForce RTX 4070 Ti12 GB GDDR6X
    88 fps (avg)
  3. AMD Radeon RX 7900 XTAMD Radeon RX 7900 XT20 GB GDDR6
    88 fps (avg)
  4. AMD Radeon RX 7800 XTAMD Radeon RX 7800 XT16 GB GDDR6
    86 fps (avg)
  5. AMD Radeon RX 7900 GREAMD Radeon RX 7900 GRE16 GB GDDR6
    82 fps (avg)
  6. NVIDIA GeForce RTX 4090 Mobile (Laptop GPU)NVIDIA GeForce RTX 4090 Mobile (Laptop GPU)16 GB GDDR6
    82 fps (avg)
  7. NVIDIA GeForce RTX 4070 SUPERNVIDIA GeForce RTX 4070 SUPER12 GB GDDR6X
    81 fps (avg)

1920x1080 (1080p)

  1. AMD Radeon RX 7900 XTXAMD Radeon RX 7900 XTX24 GB GDDR6
    142 fps (avg)
  2. NVIDIA GeForce RTX 4070 TiNVIDIA GeForce RTX 4070 Ti12 GB GDDR6X
    142 fps (avg)
  3. AMD Radeon RX 7900 XTAMD Radeon RX 7900 XT20 GB GDDR6
    138 fps (avg)
  4. AMD Radeon RX 7800 XTAMD Radeon RX 7800 XT16 GB GDDR6
    136 fps (avg)
  5. NVIDIA GeForce RTX 4070 SUPERNVIDIA GeForce RTX 4070 SUPER12 GB GDDR6X
    134 fps (avg)
  6. AMD Radeon RX 6950 XTAMD Radeon RX 6950 XT16 GB GDDR6
    132 fps (avg)
  7. NVIDIA GeForce RTX 3090NVIDIA GeForce RTX 309024 GB GDDR6X
    130 fps (avg)
View all The Last of Us Part 1 benchmark results

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

  1. NVIDIA GeForce RTX 3070NVIDIA GeForce RTX 30708 GB GDDR6
    132,916
  2. Apple M2 Ultra (76-GPU)Apple M2 Ultra (76-GPU)192 GB LPDDR5
    132,913
  3. NVIDIA GeForce RTX 3070 LHRNVIDIA GeForce RTX 3070 LHR8 GB GDDR6
    132,825
  4. AMD Radeon RX 7800 XTAMD Radeon RX 7800 XT16 GB GDDR6
    132,588
  5. AMD Radeon RX 6800AMD Radeon RX 680016 GB GDDR6
    129,992
  6. NVIDIA GeForce RTX 4060 TI (8GB)NVIDIA GeForce RTX 4060 TI (8GB)8 GB GDDR6
    128,464
  7. AMD Radeon RX 7700 XTAMD Radeon RX 7700 XT12 GB GDDR6
    125,114

Geekbench 6 - Vulkan

  1. NVIDIA GeForce RTX 4090 Mobile (Laptop GPU)NVIDIA GeForce RTX 4090 Mobile (Laptop GPU)16 GB GDDR6
    157,857
  2. NVIDIA GeForce RTX 4080NVIDIA GeForce RTX 408016 GB GDDR6X
    155,939
  3. NVIDIA GeForce RTX 4070NVIDIA GeForce RTX 407012 GB GDDR6X
    152,394
  4. AMD Radeon RX 7800 XTAMD Radeon RX 7800 XT16 GB GDDR6
    146,797
  5. NVIDIA GeForce RTX 3090 TiNVIDIA GeForce RTX 3090 Ti24 GB GDDR6X
    146,648
  6. NVIDIA GeForce RTX 3090NVIDIA GeForce RTX 309024 GB GDDR6X
    143,201
  7. NVIDIA GeForce RTX 3080 TiNVIDIA GeForce RTX 3080 Ti12 GB GDDR6X
    138,121
View all Geekbench 6 (OpenCL, Vulkan, Metal) benchmark results

MonkeyBench 2026.3 · browser GPU test

Average of 9 public MonkeyBench results (WebGPU) for the AMD Radeon RX 7800 XT.

628GPU points (Ø)
Rank 22 / 335 · in the MonkeyBench GPU ranking
MonkeyBench rankingView a typical result on CPU-Monkey ↗ Test your own GPU ↗
