ASUS TUF Gaming GeForce RTX 3060 Ti
vs

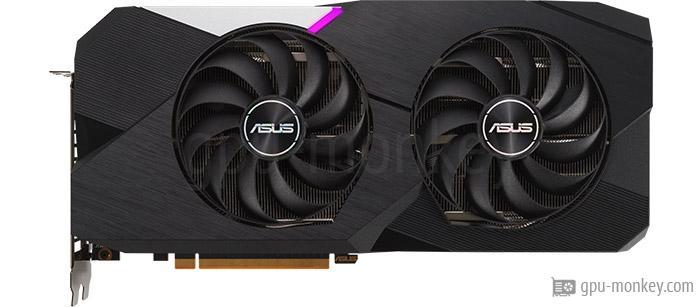

ASUS Dual Radeon RX 6700 XT
GPU comparison with benchmarksThe ASUS TUF Gaming GeForce RTX 3060 Ti is based on the NVIDIA GeForce RTX 3060 Ti (Ampere) and has 8 GB GDDR6 graphics memory with a bandwidth of 448 GB/s.
The ASUS Dual Radeon RX 6700 XT is based on the AMD Radeon RX 6700 XT (RDNA 2) and has 12 GB GDDR6 graphics memory with a bandwidth of 384 GB/s. |
||
GPUThe ASUS TUF Gaming GeForce RTX 3060 Ti has the GA104-200-A1 graphics chip installed, which is based on the Ampere architecture. The ASUS Dual Radeon RX 6700 XT is based on the graphics chip Navi 22 XT, which comes from the RDNA 2 architecture. |
||
| ASUS TUF Gaming GeForce RTX 3060 Ti | GPU | ASUS Dual Radeon RX 6700 XT |
| NVIDIA GeForce RTX 3060 Ti | Based on | AMD Radeon RX 6700 XT |
| GA104-200-A1 | GPU Chip | Navi 22 XT |
| Ampere | Architecture | RDNA 2 |
| 38 | Streaming Multiprocessors | 40 |
| 4864 | Shader | 2560 |
| 80 | Render Output Units | 64 |
| 152 | Texture Units | 160 |
| 38 | Raytracing Cores | 40 |
MemoryThe graphics memory of the ASUS TUF Gaming GeForce RTX 3060 Ti clocks at 1.750 GHz, which corresponds to a speed of 14.0 Gbps. The graphics memory speed of the ASUS Dual Radeon RX 6700 XT is 16.0 Gbps and the clock speed is 2.000 GHz. |
||
| 8 GB | Memory Size | 12 GB |
| GDDR6 | Memory Type | GDDR6 |
| 1.750 GHz | Memory Clock | 2.000 GHz |
| 14.0 Gbps | Memory Speed | 16.0 Gbps |
| 448 GB/s | Memory bandwidth | 384 GB/s |
| 256 bit | Memory Interface | 192 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 1.410 GHz | Base Clock | 2.321 GHz |
| 1.695 GHz | Boost Clock | 2.581 GHz |
| 1.67 GHz | Avg (Game) Clock | 2.44 GHz |
| Yes | Overclocking | Yes |
Thermal DesignThe ASUS TUF Gaming GeForce RTX 3060 Ti is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 200 W. The ASUS Dual Radeon RX 6700 XT has 1 x 6-Pin, 1 x 8-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 230 W. |
||
| 200 W | TDP | 230 W |
| 220 W | TDP (up) | -- |
| 93 °C | Tjunction max | 100 °C |
| 1 x 8-Pin | PCIe-Power | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe ASUS TUF Gaming GeForce RTX 3060 Ti is equipped with a total of 3 Axial main fans. The ASUS Dual Radeon RX 6700 XT has 2 Axial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 95 mm | Fan 1 | 2 x 100 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 33-35 dB | Noise (Load) | -- |
ConnectivityUp to 4 screens can be operated with the ASUS TUF Gaming GeForce RTX 3060 Ti. The ASUS Dual Radeon RX 6700 XT supports the operation of a maximum of 4 monitors. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 2x HDMI v2.1 | HDMI Ports | 1x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the ASUS TUF Gaming GeForce RTX 3060 Ti it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the ASUS Dual Radeon RX 6700 XT is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| ASUS Aura Sync | LED | ASUS Aura Sync |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode / Encode |
| Decode | VP9 | Decode / Encode |
DimensionsThe ASUS TUF Gaming GeForce RTX 3060 Ti is connected to the system via PCIe 4.0 x 16 lanes and requires 3 PCIe-Slots space in the housing. The ASUS Dual Radeon RX 6700 XT needs the space of 3 PCIe-Slots in the case and has a PCIe 4.0 x 16 Lanes interface. |
||
| 301 mm | Length | 295 mm |
| 143 mm | Height | 139 mm |
| 54 mm | Width | 55 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| -- | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe ASUS TUF Gaming GeForce RTX 3060 Ti has been manufactured with a structure width of 8 nanometers since Q4/2020. The ASUS Dual Radeon RX 6700 XT came on the market in Q1/2021 and will have a structure width of 7 nanometers manufactured. |
||
| TUF-RTX3060TI-8G-GAMING | Part-no | DUAL-RX6700XT-12G |
| Q4/2020 | Release date | Q1/2021 |
| 459 $ | Launch Price | 479 $ (Reference) |
| 8 nm | Structure size | 7 nm |
| data sheet | Documents | data sheet |
1.410 GHz, 8 GB (200 W TDP)
Buy this graphic card at amazon!
2.321 GHz, 12 GB (230 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
ASUS TUF Gaming GeForce RTX 3060 Ti
8 GB GDDR6 |
||
|
|
ASUS Dual Radeon RX 6700 XT
12 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
ASUS TUF Gaming GeForce RTX 3060 Ti
8 GB GDDR6 |
||
|
|
ASUS Dual Radeon RX 6700 XT
12 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
ASUS TUF Gaming GeForce RTX 3060 Ti
8 GB GDDR6 |
||
|
|
ASUS Dual Radeon RX 6700 XT
12 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
ASUS TUF Gaming GeForce RTX 3060 Ti
8 GB GDDR6 |
||
|
|
ASUS Dual Radeon RX 6700 XT
12 GB GDDR6 |
||
2560x1440 (1440p)
|
|
ASUS TUF Gaming GeForce RTX 3060 Ti
8 GB GDDR6 |
||
|
|
ASUS Dual Radeon RX 6700 XT
12 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming GeForce RTX 3060 Ti
8 GB GDDR6 |
||
|
|
ASUS Dual Radeon RX 6700 XT
12 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.2560x1440 (1440p)
|
|
ASUS TUF Gaming GeForce RTX 3060 Ti
8 GB GDDR6 |
||
|
|
ASUS Dual Radeon RX 6700 XT
12 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming GeForce RTX 3060 Ti
8 GB GDDR6 |
||
|
|
ASUS Dual Radeon RX 6700 XT
12 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
ASUS TUF Gaming GeForce RTX 3060 Ti
8 GB GDDR6 |
||
|
|
ASUS Dual Radeon RX 6700 XT
12 GB GDDR6 |
||
2560x1440 (1440p)
|
|
ASUS TUF Gaming GeForce RTX 3060 Ti
8 GB GDDR6 |
||
|
|
ASUS Dual Radeon RX 6700 XT
12 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming GeForce RTX 3060 Ti
8 GB GDDR6 |
||
|
|
ASUS Dual Radeon RX 6700 XT
12 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
ASUS TUF Gaming GeForce RTX 3060 Ti
8 GB GDDR6 |
||
|
|
ASUS Dual Radeon RX 6700 XT
12 GB GDDR6 |
||
