ASUS TUF Gaming GeForce RTX 3080
vs

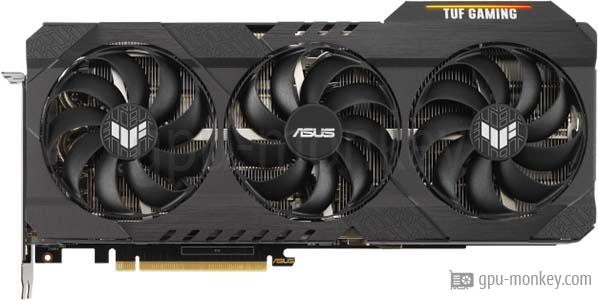

ASUS TUF Gaming GeForce RTX 3080 12GB
GPU comparison with benchmarksIn the gpu comparison between the ASUS TUF Gaming GeForce RTX 3080 and the ASUS TUF Gaming GeForce RTX 3080 12GB, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe ASUS TUF Gaming GeForce RTX 3080 is based on the NVIDIA GeForce RTX 3080 and has 8704 texture shaders and 68 execution units. ASUS TUF Gaming GeForce RTX 3080 12GB is based on NVIDIA GeForce RTX 3080 12GB, which has 8960 shaders and 70 execution units. |
||
| ASUS TUF Gaming GeForce RTX 3080 | GPU | ASUS TUF Gaming GeForce RTX 3080 12GB |
| NVIDIA GeForce RTX 3080 | Based on | NVIDIA GeForce RTX 3080 12GB |
| GA102-200-K1-A1 | GPU Chip | GA102 |
| Ampere | Architecture | Ampere |
| 68 | Streaming Multiprocessors | 70 |
| 8704 | Shader | 8960 |
| 96 | Render Output Units | 112 |
| 272 | Texture Units | 280 |
| 68 | Raytracing Cores | 70 |
MemoryThe ASUS TUF Gaming GeForce RTX 3080 has 10 GB of graphics memory of the type GDDR6X and achieves a memory bandwidth of 760 GB/s. The ASUS TUF Gaming GeForce RTX 3080 12GB can access 12 GB GDDR6X graphics memory and thus achieves a memory bandwidth of 912 GB/s. |
||
| 10 GB | Memory Size | 12 GB |
| GDDR6X | Memory Type | GDDR6X |
| 1.188 GHz | Memory Clock | 1.188 GHz |
| 19.0 Gbps | Memory Speed | 19.0 Gbps |
| 760 GB/s | Memory bandwidth | 912 GB/s |
| 320 bit | Memory Interface | 384 bit |
Clock SpeedsThe ASUS TUF Gaming GeForce RTX 3080 clocks in the base with up to 1.440 GHz. The base frequency of the ASUS TUF Gaming GeForce RTX 3080 12GB is 1.260 GHz. |
||
| 1.440 GHz | Base Clock | 1.260 GHz |
| 1.740 GHz | Boost Clock | 1.740 GHz |
| 1.71 GHz | Avg (Game) Clock | 1.71 GHz |
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the ASUS TUF Gaming GeForce RTX 3080 is 340 W. The graphics card is supplied with energy via the 2 x 8-Pin connector. The ASUS TUF Gaming GeForce RTX 3080 12GB has a TDP of 350 W and is supplied with the required energy via 2 x 8-Pin PCIe power connectors. |
||
| 340 W | TDP | 350 W |
| 375 W | TDP (up) | -- |
| 93 °C | Tjunction max | 93 °C |
| 2 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe ASUS TUF Gaming GeForce RTX 3080 has a total of 3 Axial fans. The ASUS TUF Gaming GeForce RTX 3080 12GB has 3 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 85 mm | Fan 1 | 3 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| 36-45 dB | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the ASUS TUF Gaming GeForce RTX 3080. The ASUS TUF Gaming GeForce RTX 3080 12GB supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 2x HDMI v2.1 | HDMI Ports | 2x HDMI v2.1 |
| 3x DP v1.4a | DP Ports | 3x DP v1.4a |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe ASUS TUF Gaming GeForce RTX 3080 supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the ASUS TUF Gaming GeForce RTX 3080 12GB is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| ASUS Aura Sync | LED | ASUS Aura Sync |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | Decode |
| Decode | VP8 | Decode |
| Decode | VP9 | Decode |
DimensionsThe ASUS TUF Gaming GeForce RTX 3080 is 300 mm long, 127 mm high and 52 mm wide. The ASUS TUF Gaming GeForce RTX 3080 12GB is 300 mm long, 127 mm high and 52 mm wide. |
||
| 300 mm | Length | 300 mm |
| 127 mm | Height | 127 mm |
| 52 mm | Width | 52 mm |
| 3 PCIe-Slots | Width (Slots) | 3 PCIe-Slots |
| 1390 g | Weight | -- |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataThe ASUS TUF Gaming GeForce RTX 3080 was released in Q3/2020 at a price of 779 $. The ASUS TUF Gaming GeForce RTX 3080 12GB was introduced in Q1/2022 at a price of 699 $ (Reference). |
||
| TUF-RTX3080-10G-GAMING | Part-no | TUF-RTX3080-12G-GAMING |
| Q3/2020 | Release date | Q1/2022 |
| 779 $ | Launch Price | 699 $ (Reference) |
| 8 nm | Structure size | 8 nm |
| data sheet | Documents | data sheet |
1.440 GHz, 10 GB (340 W TDP)
Buy this graphic card at amazon!
1.260 GHz, 12 GB (350 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
ASUS TUF Gaming GeForce RTX 3080
10 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 12GB
12 GB GDDR6X |
||
Port Royal (Raytracing)
|
|
ASUS TUF Gaming GeForce RTX 3080
10 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 12GB
12 GB GDDR6X |
||
Speed Way Graphics Score (Raytracing)
|
|
ASUS TUF Gaming GeForce RTX 3080
10 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 12GB
12 GB GDDR6X |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
ASUS TUF Gaming GeForce RTX 3080
10 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 12GB
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ASUS TUF Gaming GeForce RTX 3080
10 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 12GB
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming GeForce RTX 3080
10 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 12GB
12 GB GDDR6X |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
ASUS TUF Gaming GeForce RTX 3080
10 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 12GB
12 GB GDDR6X |
||
2560x1440 (1440p)
|
|
ASUS TUF Gaming GeForce RTX 3080
10 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 12GB
12 GB GDDR6X |
||
1920x1080 (1080p)
|
|
ASUS TUF Gaming GeForce RTX 3080
10 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 12GB
12 GB GDDR6X |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
ASUS TUF Gaming GeForce RTX 3080
10 GB GDDR6X |
||
|
|
ASUS TUF Gaming GeForce RTX 3080 12GB
12 GB GDDR6X |
||
