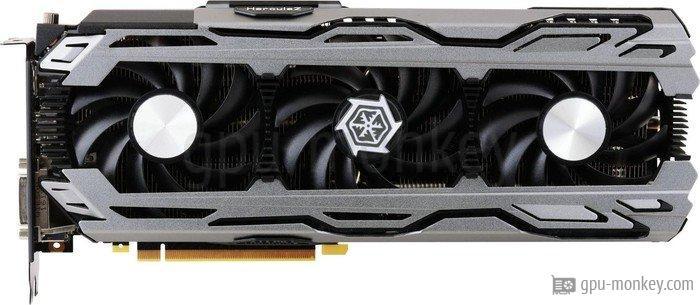

GPU comparison with benchmarksThe INNO3D GeForce GTX 1080 iCHILL X3 11Gbps has 2560 shader units and these clock a maximum of 1.90 GHz which results in an FP32 computing power of 9.71 TFLOPS.
The MSI GeForce RTX 2060 VENTUS XS 6G OC has 1920 shader units and these clock at a maximum of 1.71 GHz and achieve an FP32 computing power of 6.57 TFLOPS. |
||
GPUThe INNO3D GeForce GTX 1080 iCHILL X3 11Gbps is equipped with a graphics chip of the Pascal architecture, which has 20 streaming multiprocessors. The graphics card MSI GeForce RTX 2060 VENTUS XS 6G OC is based on the Turing architecture and is equipped with 30 execution units. |
||
INNO3D GeForce GTX 1080 iCHILL X3 11Gbps | GPU | MSI GeForce RTX 2060 VENTUS XS 6G OC |
NVIDIA GeForce GTX 1080 | Based on | NVIDIA GeForce RTX 2060 |
GP104-400-A1 / GP104-410-A1 | GPU Chip | TU106 |
Pascal | Architecture | Turing |
20 | Streaming Multiprocessors | 30 |
2560 | Shader | 1920 |
64 | Render Output Units | 48 |
160 | Texture Units | 120 |
0 | Raytracing Cores | 30 |
MemoryThe INNO3D GeForce GTX 1080 iCHILL X3 11Gbps is equipped with a 8 GB large GDDR5X graphics memory, which is equipped with 1.425 GHz clocks. The MSI GeForce RTX 2060 VENTUS XS 6G OC has a 6 GB large GDDR6 graphics memory and the memory clock is 1.750GHz. |
||
8 GB | Memory Size | 6 GB |
GDDR5X | Memory Type | GDDR6 |
1.425 GHz | Memory Clock | 1.750 GHz |
11.4 Gbps | Memory Speed | 14.0 Gbps |
364 GB/s | Memory bandwidth | 336 GB/s |
256 bit | Memory Interface | 192 bit |
Clock SpeedsThe INNO3D GeForce GTX 1080 iCHILL X3 11Gbps has a turbo clock of 1.898 GHz. The turbo frequency of the MSI GeForce RTX 2060 VENTUS XS 6G OC is 1.710 GHz. |
||
1.759 GHz | Base Clock | 1.365 GHz |
1.898 GHz | Boost Clock | 1.710 GHz |
Avg (Game) Clock | ||
Yes | Overclocking | Yes |
Thermal DesignThe INNO3D GeForce GTX 1080 iCHILL X3 11Gbps has 1 x 6-Pin, 1 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 94 °C. The MSI GeForce RTX 2060 VENTUS XS 6G OC is equipped with a 1 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 88 °C. |
||
230 W | TDP | 160 W |
-- | TDP (up) | -- |
94 °C | Tjunction max | 88 °C |
1 x 6-Pin, 1 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe graphics processor and graphics memory of the INNO3D GeForce GTX 1080 iCHILL X3 11Gbps are cooled with a Air cooling. The MSI GeForce RTX 2060 VENTUS XS 6G OC is cooled by a Air cooling. |
||
Axial | Fan-Type | Axial |
3 x 90 mm | Fan 1 | 2 x 90 mm |
-- | Fan 2 | -- |
Air cooling | Cooler-Type | Air cooling |
0 dB | Noise (Idle) | 0 dB |
-- | Noise (Load) | -- |
ConnectivityThe INNO3D GeForce GTX 1080 iCHILL X3 11Gbps supports the downward compatible copy protection HDCP in version 2.2. The MSI GeForce RTX 2060 VENTUS XS 6G OC supports HDCP in version 2.2 and all previous versions. |
||
4 | Max. Displays | 4 |
2.2 | HDCP-Version | 2.2 |
1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.0b |
3x DP v1.4 | DP Ports | 3x DP v1.4a |
1 | DVI Ports | -- |
-- | VGA Ports | -- |
-- | USB-C Ports | -- |
FeaturesetThe INNO3D GeForce GTX 1080 iCHILL X3 11Gbps supports the DirectX standard from Microsoft in version 12_1. The MSI GeForce RTX 2060 VENTUS XS 6G OC supports Microsoft's DirectX version 12_2 (Ultimate). |
||
7680x4320 | Max. resolution | 7680x4320 |
12_1 | DirectX | 12_2 (Ultimate) |
No | Raytracing | Yes |
Yes | DLSS / FSR | Yes |
ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light | LED | No LED lighting |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
Decode / Encode | h264 | Decode / Encode |
Decode / Encode | h265 / HEVC | Decode / Encode |
No | AV1 | No |
Decode | VP8 | Decode |
Decode | VP9 | Decode |
DimensionsThe INNO3D GeForce GTX 1080 iCHILL X3 11Gbps is -- wide and therefore needs the space of 2 PCIe-Slots in the case. The width of the MSI GeForce RTX 2060 VENTUS XS 6G OC is -- and thus requires the space of 2 PCIe-Slots in the PC case. |
||
302 mm | Length | 205 mm |
109 mm | Height | 128 mm |
-- | Width | 41 mm |
3 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
-- | Weight | 725 g |
PCIe 3.0 x 16 | GPU Interface | PCIe 3.0 x 16 |
Additional dataManufactured using the 16 nanometer process, INNO3D GeForce GTX 1080 iCHILL X3 11Gbps was released in Q2/2017. The MSI GeForce RTX 2060 VENTUS XS 6G OC published in Q1/2019 is manufactured with a structure width of 12 nanometers. |
||
C108X3-2SDN-P6DNX | Part-no | -- |
Q2/2017 | Release date | Q1/2019 |
599 $ (Reference) | Launch Price | 349 $ (Reference) |
16 nm | Structure size | 12 nm |
-- | Documents | data sheet |
