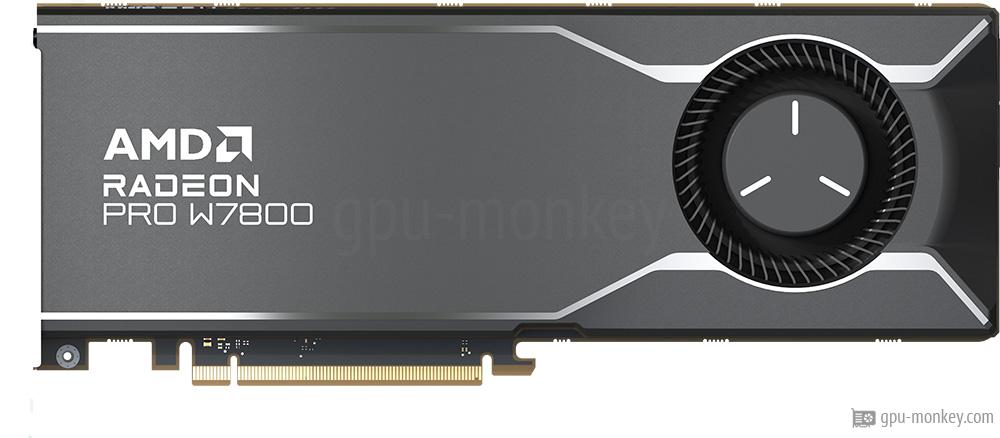

AMD Radeon Pro W7800
Benchmark and Specs

Last updated:

Description

Here we show you benchmarks and technical data for the AMD Radeon Pro W7800. The graphics card is based on the AMD Radeon Pro W7800 (RDNA 3.0) and has 32 GB GDDR6 of graphics memory with a bandwidth of 576 GB/s.

The total 4480 shader units of the AMD Radeon Pro W7800 are clocked with a maximum of 2.50 GHz. The graphics card thus achieves an FP32 computing power of 44.78 TFLOPS and was released in Q2/2023.

GPU

The AMD Radeon Pro W7800 has 4480 shaders and 70 execution units. The graphics card thus achieves a theoretical FP32 computing power of 44.78 TFLOPS.

Based on: AMD Radeon Pro W7800
GPU Chip: Navi 31 (RDNA 3.0)
Streaming Multiprocessors: 70
Shader: 4480
Render Output Units: 128
Texture Units: 280
Raytracing Cores: 70

Memory

The AMD Radeon Pro W7800 can use 32 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 576 GB/s on a 256 bit wide memory interface.

Memory Size: 32 GB
Memory Type: GDDR6
Memory Clock: 2.250 GHz
Memory Speed: 18 Gbps
Memory bandwidth: 576 GB/s
Memory Interface: 256 bit

Clock Speeds

The base clock frequency of the AMD Radeon Pro W7800 is 1.855 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.855 GHz
Boost Clock: 2.499 GHz
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the AMD Radeon Pro W7800 is 260 W. The graphics card is supplied with energy via the 2 x 8-Pin connector.

TDP: 260 W
TDP (up): --
Tjunction max: --
PCIe-Power: 2 x 8-Pin

Cooler & Fans

The AMD Radeon Pro W7800 has a total of 1 Radial fans to cool the graphics processor and graphics memory.

Fan-Type: Radial
Fan 1: 1 x 70 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the AMD Radeon Pro W7800.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: --
DP Ports: 4x DP v2.1
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The AMD Radeon Pro W7800 has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: No LED lighting

Supported Video Codecs

The video codecs accelerated in hardware by the AMD Radeon Pro W7800 reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode / Encode
VP9: Decode / Encode
AV1: Decode / Encode

Dimensions

The AMD Radeon Pro W7800 is 280 mm long and 110 mm high. With a width of 40 mm, the graphics card requires 2 PCIe-Slots in the case.

Length: 280 mm
Height: 110 mm
Width: 40 mm
Width (Slots): 2 PCIe-Slots
Weight: --

Additional data

The AMD Radeon Pro W7800 made in 5 nm was published in Q2/2023 for 2,499 $.

GPU Interface: PCIe 4.0 x 16
Release date: Q2/2023
Launch Price: 2,499 $
Structure size: 5 nm
Part-no: --
Documents: data sheet

Benchmark results

FP32 Performance (Single-precision TFLOPS) - FP32 (TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS. TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second. The larger this number, the faster the graphics card is.

View all FP32 Performance (Single-precision TFLOPS) benchmark results



More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
