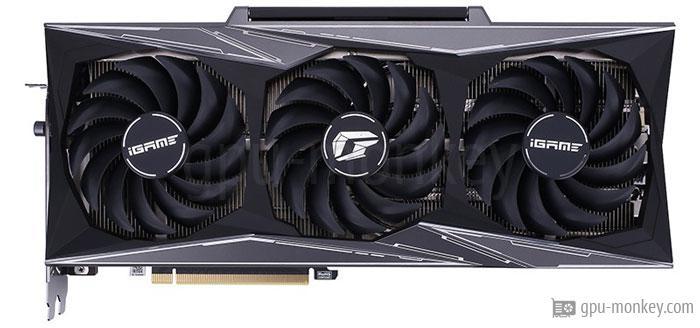

Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V
Benchmark and Specs


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V. The graphics card is based on the NVIDIA GeForce RTX 3060 Ti (Ampere) and has 8 GB GDDR6 graphics memory with a memory bandwidth of 448 GB/s. The Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V has 38 execution units with 4864 shaders.

GPU

The Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V has 4864 shaders and 38 execution units. The graphics card thus achieves a theoretical FP32 computing power of 17.66 TFLOPS.

Based on: NVIDIA GeForce RTX 3060 Ti
GPU Chip: GA104-200-A1 (Ampere)
Streaming Multiprocessors: 38
Shader: 4864
Render Output Units: 80
Texture Units: 152
Raytracing Cores: 38

Memory

The Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 448 GB/s on a 256 bit wide memory interface.

Memory Size: 8 GB
Memory Type: GDDR6
Memory Clock: 1.750 GHz
Memory Speed: 14.0 Gbps
Memory bandwidth: 448 GB/s
Memory Interface: 256 bit

Clock Speeds

The base clock frequency of the Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V is 1.410 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.410 GHz
Boost Clock: 1.815 GHzDeviation vs GPU group+ 9 %
Avg (Game) Clock: 1.665 GHz
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V is 240 W. The graphics card is supplied with energy via the 3 x 8-Pin connector.

TDP: 240 WDeviation vs GPU group+ 20 %
TDP (up): --
Tjunction max: 93 °C
PCIe-Power: 3 x 8-Pin

Cooler & Fans

The Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V has a total of 3 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 3 x 90 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: iGame Energy Core

Supported Video Codecs

The video codecs accelerated in hardware by the Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V is 323 mm long and 158 mm high. With a width of 60 mm, the graphics card requires 3 PCIe-Slots in the case.

Length: 323 mm
Height: 158 mm
Width: 60 mm
Width (Slots): 3 PCIe-Slots
Weight: 1700 g

Additional data

The Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V made in 8 nm was published in Q4/2020 for 399 $ (Reference).

GPU Interface: PCIe 4.0 x 16
Release date: Q4/2020
Launch Price: 399 $ (Reference)
Structure size: 8 nm
Part-no: --
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V
8 GB GDDR6
44 fps (avg)
NVIDIA GeForce RTX 3060 Ti NVIDIA GeForce RTX 3060 Ti
Average of gpu group
41 fps (avg)

2560x1440 (1440p)

Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V
8 GB GDDR6
51 fps (avg)
NVIDIA GeForce RTX 3060 Ti NVIDIA GeForce RTX 3060 Ti
Average of gpu group
48 fps (avg)

1920x1080 (1080p)

Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V
8 GB GDDR6
77 fps (avg)
NVIDIA GeForce RTX 3060 Ti NVIDIA GeForce RTX 3060 Ti
Average of gpu group
72 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V
8 GB GDDR6
20 fps (avg)
NVIDIA GeForce RTX 3060 Ti NVIDIA GeForce RTX 3060 Ti
Average of gpu group
18 fps (avg)

2560x1440 (1440p)

Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V
8 GB GDDR6
44 fps (avg)
NVIDIA GeForce RTX 3060 Ti NVIDIA GeForce RTX 3060 Ti
Average of gpu group
40 fps (avg)

1920x1080 (1080p)

Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V
8 GB GDDR6
96 fps (avg)
NVIDIA GeForce RTX 3060 Ti NVIDIA GeForce RTX 3060 Ti
Average of gpu group
88 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V
8 GB GDDR6
74 fps (avg)
NVIDIA GeForce RTX 3060 Ti NVIDIA GeForce RTX 3060 Ti
Average of gpu group
68 fps (avg)

2560x1440 (1440p)

Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V
8 GB GDDR6
131 fps (avg)
NVIDIA GeForce RTX 3060 Ti NVIDIA GeForce RTX 3060 Ti
Average of gpu group
122 fps (avg)

1920x1080 (1080p)

Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V Colorful iGame GeForce RTX 3060 Ti Vulcan OC-V
8 GB GDDR6
181 fps (avg)
NVIDIA GeForce RTX 3060 Ti NVIDIA GeForce RTX 3060 Ti
Average of gpu group
166 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
