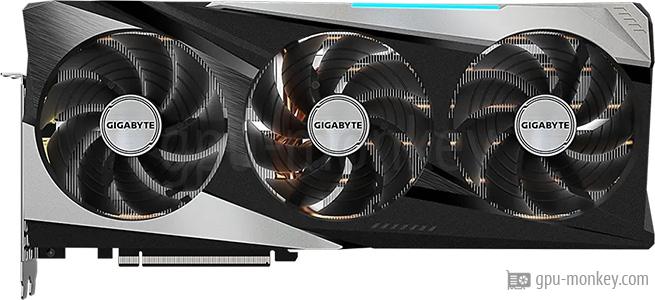

GPUThe GIGABYTE Radeon RX 6950 XT GAMING OC 16G has 80 execution units with 5120 shaders. This gives the graphics card a theoretical FP32 computing power of 23.65 TFLOPS. |
|
Based on: | AMD Radeon RX 6950 XT |
GPU Chip: | Navi 21 KXTX (RDNA 2) |
Streaming Multiprocessors: | 80 |
Shader: | 5120 |
Render Output Units: | 128 |
Texture Units: | 320 |
Raytracing Cores: | 80 |
MemoryThe GIGABYTE Radeon RX 6950 XT GAMING OC 16G is equipped with 16 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 2.250 GHz and the speed is 18 Gbps. |
|
Memory Size: | 16 GB |
Memory Type: | GDDR6 |
Memory Clock: | 2.250 GHz |
Memory Speed: | 18.0 Gbps |
Memory bandwidth: | 576 GB/s |
Memory Interface: | 256 bit |
Clock SpeedsThe base frequency of this graphics card is 1.925 GHz and the manufacturer specifies the maximum turbo clock as 2.324 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
Base Clock: | 1.925 GHz |
Boost Clock: | 2.324 GHz |
Avg (Game) Clock: | 2.116 GHz |
Overclocking: | Yes |
Thermal DesignThe GIGABYTE Radeon RX 6950 XT GAMING OC 16G is powered by 3 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 335 W. |
|
TDP: | 335 W |
TDP (up): | -- |
Tjunction max: | 100 °C |
PCIe-Power: | 3 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the GIGABYTE Radeon RX 6950 XT GAMING OC 16G are cooled by a Air cooling. |
|
Fan-Type: | Axial |
Fan 1: | 3 x 100 mm |
Fan 2: | -- |
Cooler-Type: | Air cooling |
Noise (Idle): | 0 dB / Silent |
Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the GIGABYTE Radeon RX 6950 XT GAMING OC 16G. |
|
Max. Displays: | 4 |
HDCP-Version: | 2.3 |
HDMI Ports: | 2x HDMI v2.1 |
DP Ports: | 2x DP v1.4a |
DVI Ports: | -- |
VGA Ports: | -- |
USB-C Ports: | -- |
FeaturesetWith the GIGABYTE Radeon RX 6950 XT GAMING OC 16G it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
Max. resolution: | 7680x4320 |
DirectX: | 12_2 (Ultimate) |
Raytracing: | Yes |
DLSS / FSR: | Yes |
LED: | GIGABYTE RGB Fusion |
Supported Video CodecsThis area lists the video codecs that the GIGABYTE Radeon RX 6950 XT GAMING OC 16G can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
h264: | Decode / Encode |
h265 / HEVC: | Decode / Encode |
VP8: | Decode / Encode |
VP9: | Decode / Encode |
AV1: | Decode |
DimensionsThe GIGABYTE Radeon RX 6950 XT GAMING OC 16G needs the space of 3 PCIe-Slots in a case. It is 332 mm long, 143 mm high and 57 mm wide. |
|
Length: | 332 mm |
Height: | 143 mm |
Width: | 57 mm |
Width (Slots): | 3 PCIe-Slots |
Weight: | -- |
Additional dataThe GIGABYTE Radeon RX 6950 XT GAMING OC 16G was released in Q2/2022 at a price of 1,099 $ (Reference). The graphics card manufactured in 7 nm is connected to the system via PCIe 4.0 x 16 lanes. |
|
GPU Interface: | PCIe 4.0 x 16 |
Release date: | Q2/2022 |
Launch Price: | 1,099 $ (Reference) |
Structure size: | 7 nm |
Part-no: | GV-R695XTGAMING OC-16GD |
Documents: | data sheet |
